JVC AV-27BM3

AV-27BM3
AV-27CM3

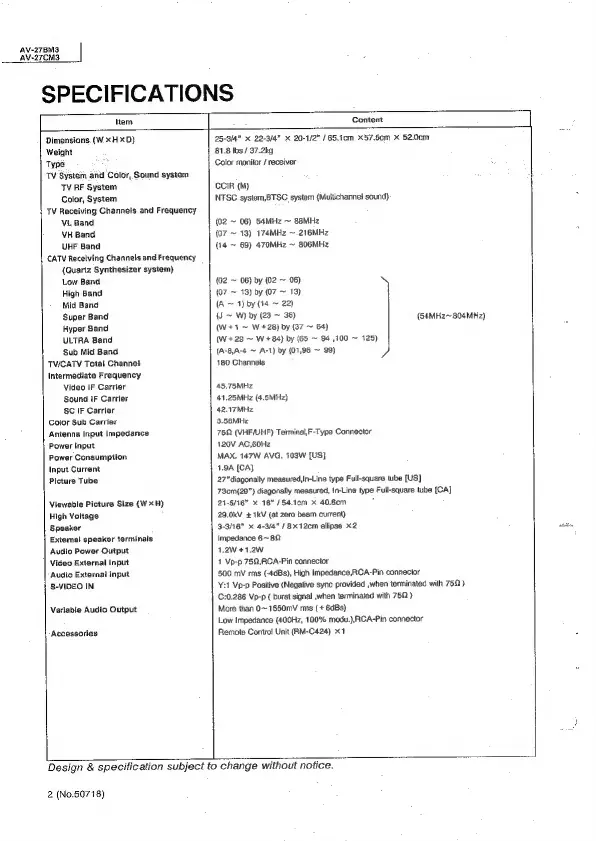

SPECIFICATIONS
item
Content
Dimensions. (W.xH XD)
Weight
Type :
TV System and Color, Sound system
TV RF System
Color, System
TV Receiving Channels and Frequency
Vi, Band
VH Band
UHF Band
CATV Receiving Channels and Frequency
(Quartz Synthesizer system)
Low Band
High Band
Mid Band
Super Band
Hyper Band
ULTRA Band
Sub Mid Band
TVW/CATY Total Channel
Intermediate Frequency
Video IF Carrier
Sound IF Carrier
SC IF Carrier
Color Sub Carrier
Antenna Input Impedance
Power Input
Power Consumption
Input Current
Picture Tube
Viewable Picture Size (WH)
High Voltage
Speaker
External speaker terminals
Audio Power Output
Video External Input
Audio External input
8-VIDEO IN
Variable Audio Output
Accessories
25-3/4" x 22-3/4” x 20-1/2" / 65.1em x57.S0m x 52.0em
81.8 Ibs / 37.2kg
Color monitor / receiver
COIR (M)
NTSC system,8TSC system (Multichannel sound)
(02 ~ 06) 54MHz ~ aaMHz
(07 ~ 13) 174MHz ~.216MHz
(14 ~ 69) 470MH2 ~ 806MHz
(02 ~ 06) by (02 ~ 06)
(07 ~ 13) by (07 ~ 13)
(A ~ 1) by (14 ~ 22)
(5 ~ W) by (23 ~ 38)
(W+1 ~ W +28) by (37 ~ 64)
(W+29 ~ W +84) by (65 ~ 94 ,100 ~ 125)
(A-8,A-4 ~ A-t) by (01,96 ~ 99)
180 Channels
(54MHz~ 804MHz)
45.75MHz
41.25MHz (4.5MHz)
42.17MH2
3.58MHz
752 (VHF/UHF) Terminal,F-Type Connector
420V AC,GOHz
MAX. 147W AVG. 103W [US}
1.9A [CA}
27"diagonally measured,In-Line type Full-square tube [US]
73cm({29") diagonally measured, In-Line type Full-square tube [CA]
21-5/16" X 16" /54.1cm x 40.6em
29.0kV + 1kV (at zero beam current)
3-3/16" x 4-3/4" / 8X12cm ellipse X2
impedance 6~82
1.2W +1.2W
1 Vp-p 759,RCA-Pin connector
500 mV rms (-4dBs), High Impedance,RCA-Pin connector
Y:1 Vp-p Positive (Negative sync provided ,when terminated with 752 )
©:0.286 Vp-p ( burst signal when terminated with 752 )
More than O~ 1550mV rms (+ 6dBs)
Low Impedance (400Hz, 100% modu.) RCA-Pin connector
Remote Control Unit (RM-C424) x1
Design & specification subject to change without notice.
2 (No.50718)
