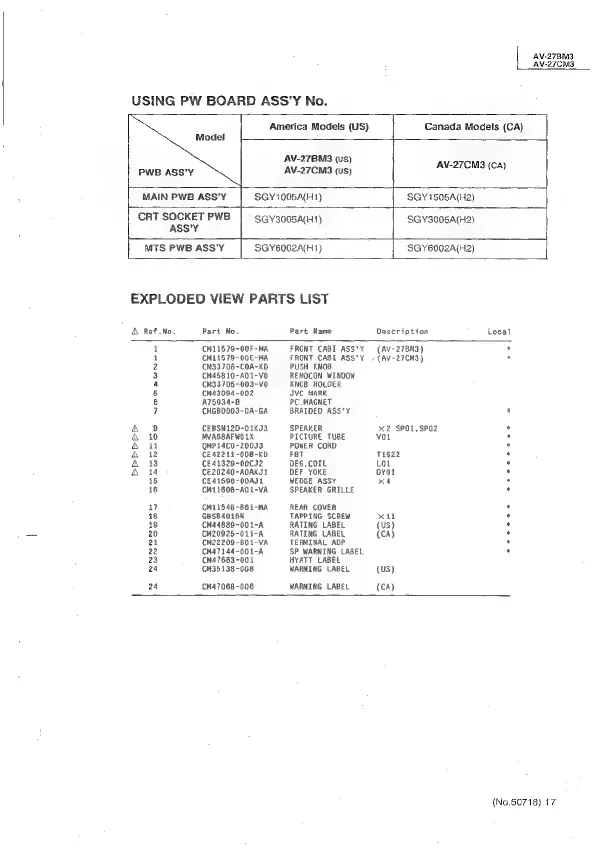

JVC AV-27BM3

USING PW BCARD ASS’Y No.
AV-27BM3
A CMS,
America Models (US) Canada Models (CA)
AV-27BM3 (us)
piiasey AV-27CM3 (us) AV-27CM3 (CA)
MAIN PWB ASS’Y SGY1005A(H1) SGY1505A(H2)
|
CRT SOCKET PWB | = sG@y3005A(H1) SGY3005A(H2)
ASS'Y
MTS PWB ASS'Y SGY6002A(H1) SGY6002A(H2)
4
EXPLODED VIEW PARTS LIST
A Ref .No, Part No. Part Name Description Local
1 CM11579-00F-MA FRONT CABI ASS'Y (AV-27BM3) .
1 CM1L1679-OGE-MA FRONT CABL ASS'Y = (AV-27CM3) *
2 M33706-COA-KD PUSH KNOB
3 M458 10-AQ1-VO REMOCON WINDOW
4 (M33705-003-VO KNOB HOLDER
6 (M43094-002 JVC MARK
6 A75034-B PC MAGNET
7 CHGB0003-0A-GA BRAIDED ASS'Y *
a 9 CEBSN12D-01KJ3. SPEAKER x2 SP01,SP02 *
A 10 MVAGSAFWO LX PICTURE TUBE vot .
& i QMP14C0-200J3 POWER CORD *
A 12 CE42211-008-KD FBT T1622 *
a 3B CE41329-00C)2 DEG. COIL Lo *
A 14 CE20240-A0AKI1 DEF YOKE byO1 *
15 CE41696-00AJ1 WEDGE ASSY x4 *
16 CM11606-A01-VA SPEAKER GRILLE «
7 CM11548-B61-MA REAR COVER *
18 GBSB4016N TAPPING SCREW xi *
19 CM44889-001-A RATING LABEL (US) be
20 CM20926-011-A RATING LABEL (CA) «
ra (M22209-B01-VA TERMINAL ADP *
22 CM47144-001-A SP WARNING LABEL =
23 M47663-001 HYATT LABEL
24 CM35138-008 WARNING LABEL (us)
24 M47068 -006 WARNING LABEL (CA)
(No.§0718) 17
