3.1.9 Removing the audio signal 1 board
(See Fig.13)
• Prior to performing the following procedure, remove the top
cover, side panels, stay bkt, front panel assembly and rear
panel, DSP 1 board, DSP 2 board and shield cover.
(1) From the top side of the main body, disconnect the wires
from the connectors CN202
, CN204, CN234, CN224,
CN208, CN218 and CN223 on the audio signal 1 board.
(2) Remove the plastic rivet, and disconnect the connectors
CN205
, CN221 and CN206 on the audio signal 1 board.
(3) Take out the audio signal 1 board.

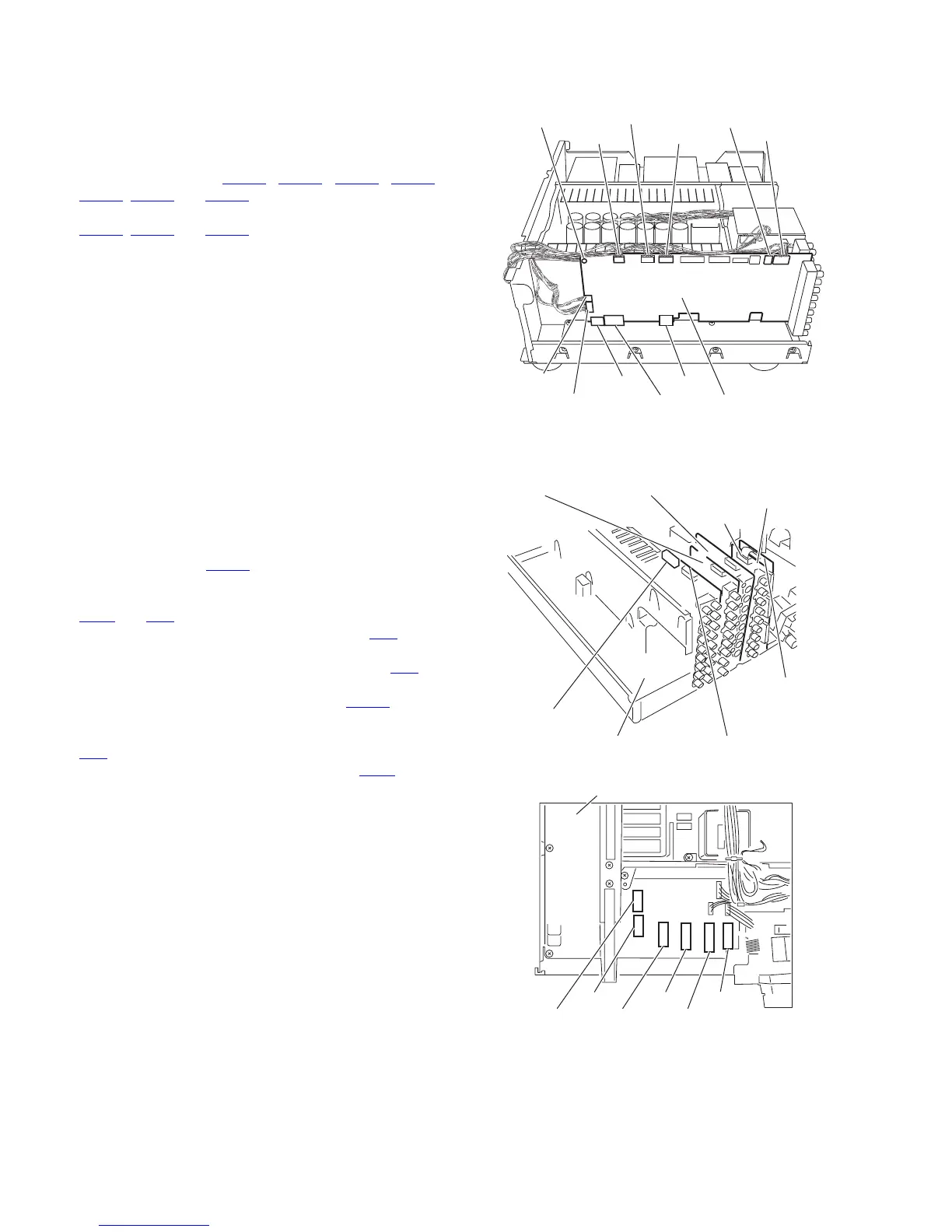

Fig.13
3.1.10 Removing the audio signal 2 board & video board & S video board & component video board & D5 video board
(See Figs.14 and 15)
• Prior to performing the following procedure, remove the top
cover, rear panel, front panel assembly, Y/C separator board,
DSP 1 board, DSP 2 board, shield cover and audio signal 1
board.
(1) From the top side of the main body, disconnect the wire
from the connector CN324
on the audio signal 2 board.
(See fig.14)
(2) Disconnect the audio signal 2 board from the connector
CN15
and CN6 on the main board. (See fig.15)
(3) Disconnect the video board from the connector CN7 on the
main board. (See figs.14 and 15)
(4) Disconnect the S video board from the connector CN8
on
the main board. (See figs.14 and 15)
(5) Disconnect the wire from the connector CN502 on the
component video board. (See fig.14)
(6) Disconnect the component video board from the connector
CN9
on the main board. (See fig.15)
(7) Disconnect the D5 video from the connector CN10
on the
main board. (See figs.14 and 15)
Fig.14
Fig.15
Plastic rivet
CN204
CN202
Audio signal 1 board
CN205
CN221
CN206
CN234
CN224
CN208
CN223
CN218
Video board
Component
video board
Audio signal 2 board
S video board
CN324
Main board
D5 video board
CN502
Main board
CN15
CN6
CN7
CN8
CN9
CN10
