JVC CA-C55BK User Manual

L-l (vlv02 ON)
foo)

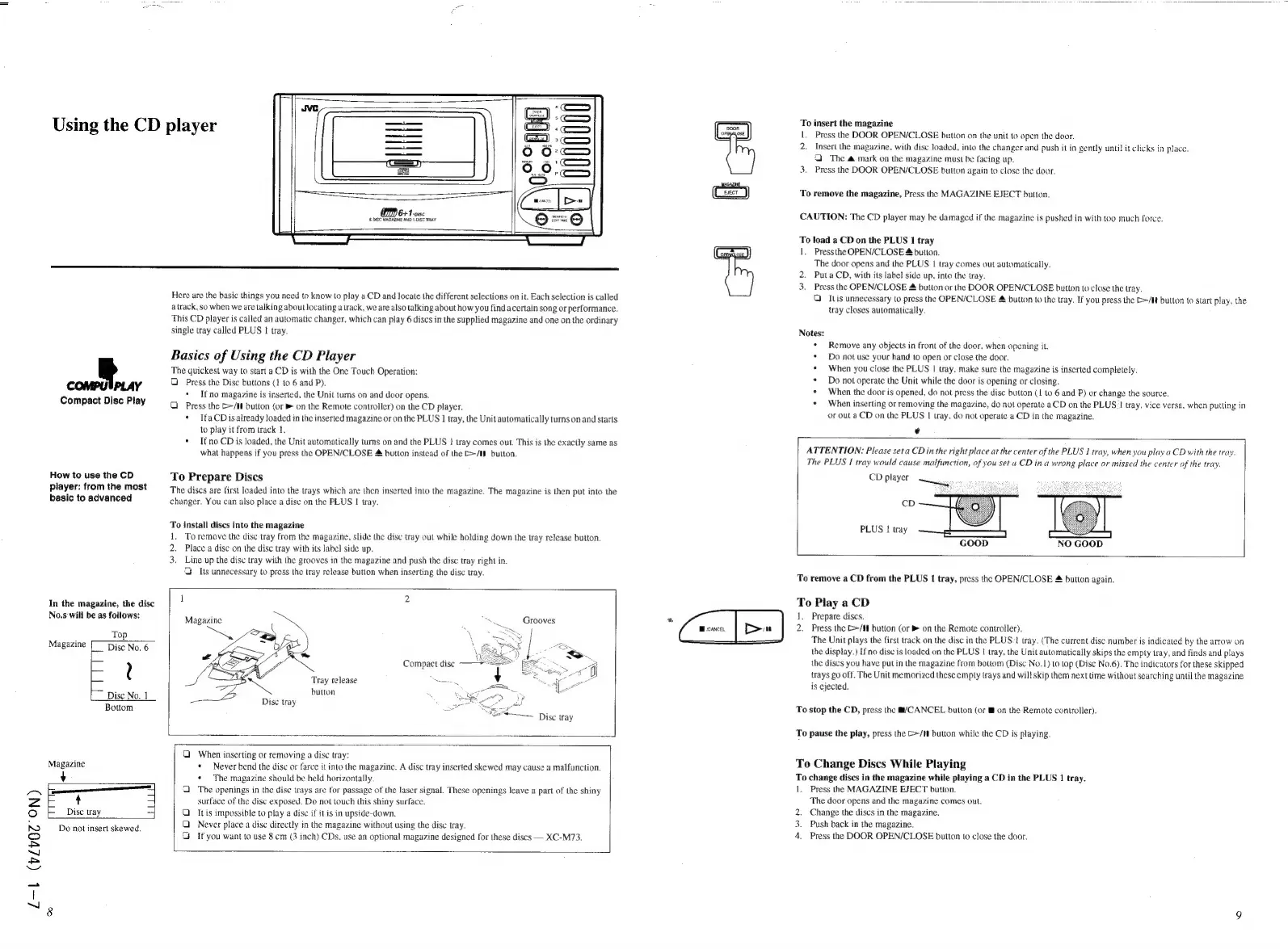

Using the CD player
O79 6 +1 -v1se
‘DISC MAGAZINE AND 1.DISC TRAY
ae. ae
Compact Disc Play
How to use the CD
player: from the most
basic to advanced
In the magazine, the disc
No.s will be as follows:
5p OP
Magazine [Disc No. 6
eet
L___Disc No. 1
Here are the basic things you need to know to play a CD and locate the different selections on it. Each selection is called
a track, so when we are talking about locating a track, we are also talking about how you find a certain song or performance.
This CD player is called an automatic changer. which can play 6 discs in the supplied magazine and one on the ordinary
single tray called PLUS | tray.
Basics of Using the CD Player
The quickest way to start a CD is with the One Touch Operation:
& Press the Disc buttons (1 to 6 and P),
« Ifno magazine is inserted, the Unit tums on and door opens.
Q 1 Press the &>/M button (or ® on the Remote controller) on the CD player.
* TfaCD is already loaded in the inserted magazine or on the PLUS 1 tray, the Unitautomatically turns on and starts
to play it from track 1.
* Ifno CD is loaded, the Unit automatically turns on and the PLUS } tray comes out. This is the exactly same as
what happens if you press the OPEN/CLOSE & button instead of the &>/l button.
To Prepare Discs
The discs are first loaded into the trays which are then inserted into the magazine. The magazine is then put into the
changer. You can also place a disc on the PLUS I tray.
To install discs into the magazine
1. To remove the disc tray from the magazine, slide the disc tray out while holding down the tray release button.
Place a disc on the disc tray with its label side up.
Line up the dise tray with the grooves in the magazine and push the disc tray right in.
J Its unnecessary to press the tray release button when inserting the disc tray.
ante:
Magazine Grooves
Tray release
button
Bottom
Magazine
LLL
t
Disc tray
Do not insert skewed.
“~———— Disc tray
Q When inserting or removing a disc tray:
* Never bend the disc or farce it into the magazine. A disc tray inserted skewed may cause a malfunction.
¢ The magazine should be held horizontally.
The openings in the disc trays are for passage of the laser signal. These openings leave a part of the shiny
surface of the disc exposed. Do not touch this shiny surface.
It is impossible to play a disc if it is in upside-down.
Never place a disc directly in the magazine without using the disc tray.
If you want to use 8 cm (3 inch) CDs. use an optional magazine designed for these discs — XC-M73.
u
ooo
To insert the magazine
1. Press the DOOR OPEN/CLOSE button on the unit to open the door.
2. Insert the magazine. with disc loaded, into the changer and push it in gently until it clicks in place.
The @ mark on the magazine must be facing up.
3. Press the DOOR OPEN/CLOSE button again to close the door.
To remove the magazine, Press the MAGAZINE EJECT button.
CAUTION: The CD player may be damaged if the magazine is pushed in with too much force.
To load a CD on the PLUS 1 tray
1. Pressthe OPEN/CLOSE 4 button.
The door opens and the PLUS | tray comes out automatically.
2. Puta CD, with its label side up, into the tray.
3. Press the OPEN/CLOSE & button or the DOOR OPEN/CLOSE button to close the tray.
Q Itis unnecessary to press the OPEN/CLOSE & button to the tray. If you press the E=/I button to start play, the
tray closes automatically.
Notes:
¢ Remove any objects in front of the door, when opening it.
* Do not use your hand to open or close the door.
* When you close the PLUS | way, make sure the magazine is inserted completely.
* Do not operate the Unit while the door is opening or closing.
* When the door is opened, do not press the disc button (1 to 6 and P) or change the source.
* When inserting or removing the magazine, do not operate a CD on the PLUS 1 tray, vice versa. when putting in
or outa CD on the PLUS | tray. do not operate a CD in the magazine.
@
a
ATTENTION: Please seta CD in the right place ar the center of the PLUS 1 tray, when you play a CD with the tray.
The PLUS | tray would cause malfunction, of you set a CD in a wrong place or missed the center of the tray.
CD player —
cD
PLUS ! tray
GOOD NO GOOD
To remove a CD from the PLUS | tray, press tho OPEN/CLOSE & button again.
To Play a CD
!. Prepare discs.
2. Press the &/#¥ button (or ® on the Remote controller).
The Unit plays the first track on the disc in the PLUS 1 tray. (The current disc number is indicated by the arrow on
the display.) If no disc is loaded on the PLUS 1 tray, the Unit automatically skips the empty tray, and finds and plays
the discs you have put in the magazine from bottom (Disc No.1) to top (Dise No.6). The indicators for these skipped
trays go off. The Unit memorized these empty trays and will skip them next time without searching until the magazine
is ejected.
To stop the CD, press the @/CANCEL button (or @ on the Remote controller).
To pause the play, press the &>/N button while the CD is playing.
To Change Discs While Playing
To change discs in the magazine while playing a CD in the PLUS 1 tray.
1. Press the MAGAZINE EJECT button.
The door opens and the magazine comes out.
2. Change the discs in the magazine.
3. Push back in the magazine.
4. Press the DOOR OPEN/CLOSE button to close the door.
