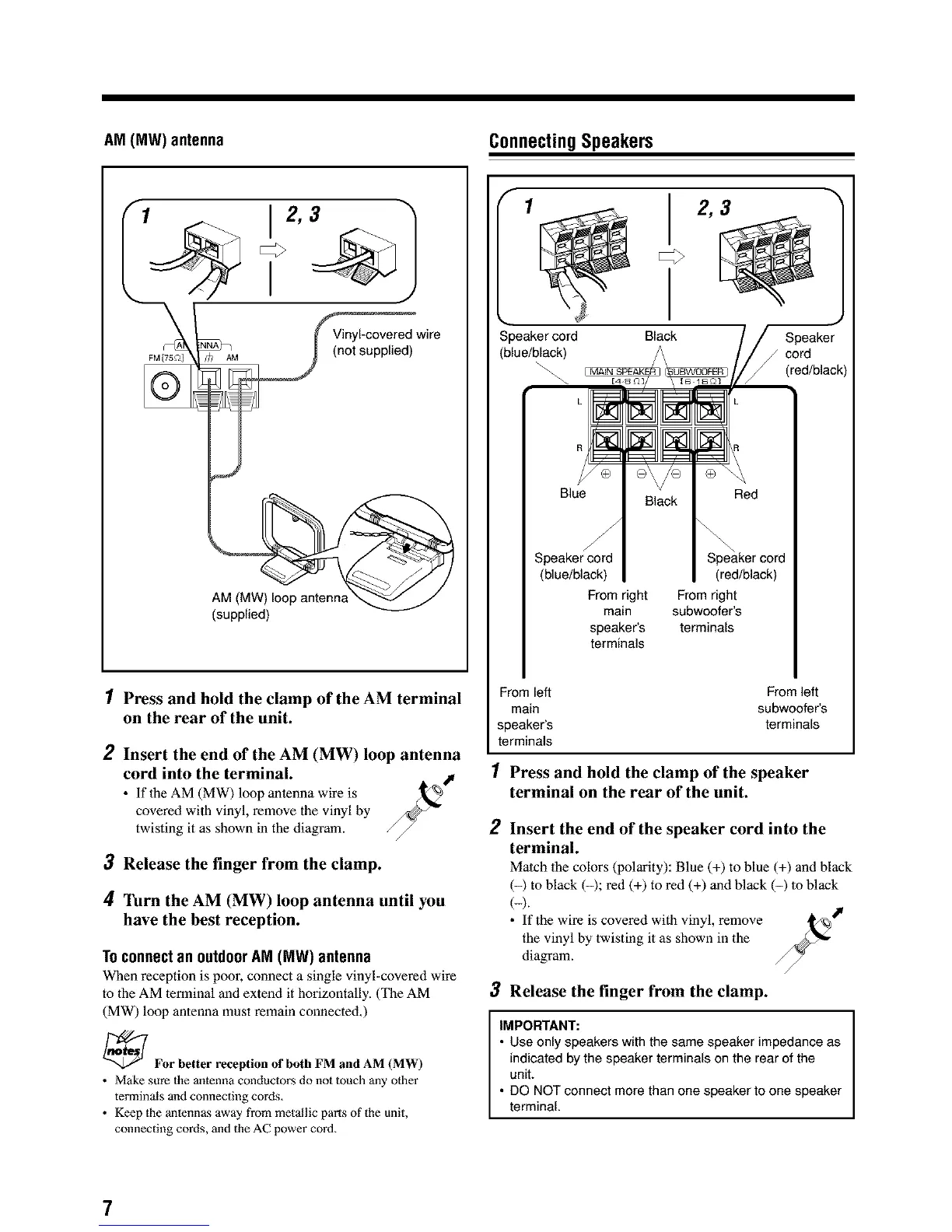

JVC CA-MXGT88

AM (MW) antenna
ConnectingSpeakers
Vinyl-covered wire
(not supplied)
AM (MW) loop antenn_
(supplied)
1 Press and hold the clamp of the AM terminal
on the rear of the unit.
2 Insert the end of the AM (MW) loop antenna
cord into the terminal.
• If 1heAM (MW) loop antenna wire is
covered with vinyl, remove the vinyl by
twisting it as shown in the diagram.
3 Release the finger from the clamp.
4 Turn the AM (MW) loop antenna until you
have the best reception.
Toconnectan outdoorAM (MW) antenna
When reception is poor, connect a single vinyl-covered wire
to 1he AM lerminal and extend it horizontally. (The AM
(MW) loop antenna must remain connected,)
_For better reception of both FM and AM (MW)
• Make sure the antenna conductors do no1 touch any other
terminals and connecting cords,
• Keep the anlennas away from metallic pans of 1he unit,
connecting cords, and 1he AC power cord.
1 2,3
Speaker cord Black Speaker
(blue/black) _ cord
[ (red/black)
Blue Black Red
Speaker cord Speaker cord
(blue/black) (red/black)
From right From right
main subwoofer's
speaker's terminals
terminals
From left From left
main subwoofer's
speaker's terminals
terminals
1 Press and hold the clamp of the speaker
terminal on the rear of the unit.
2 Insert the end of the speaker cord into the
terminal.
Match the colors (polarity): Blue (+) to blue (+) and black
(-) to black (-); red (+) to red (+) and black (-) to black
(-).
• If the wire is covered widl vinyl, remove
the vinyl by twisting it as shown in the
diagram.
3 Release the finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the
unit.
• DO NOT connect more than one speaker to one speaker
terminal.
