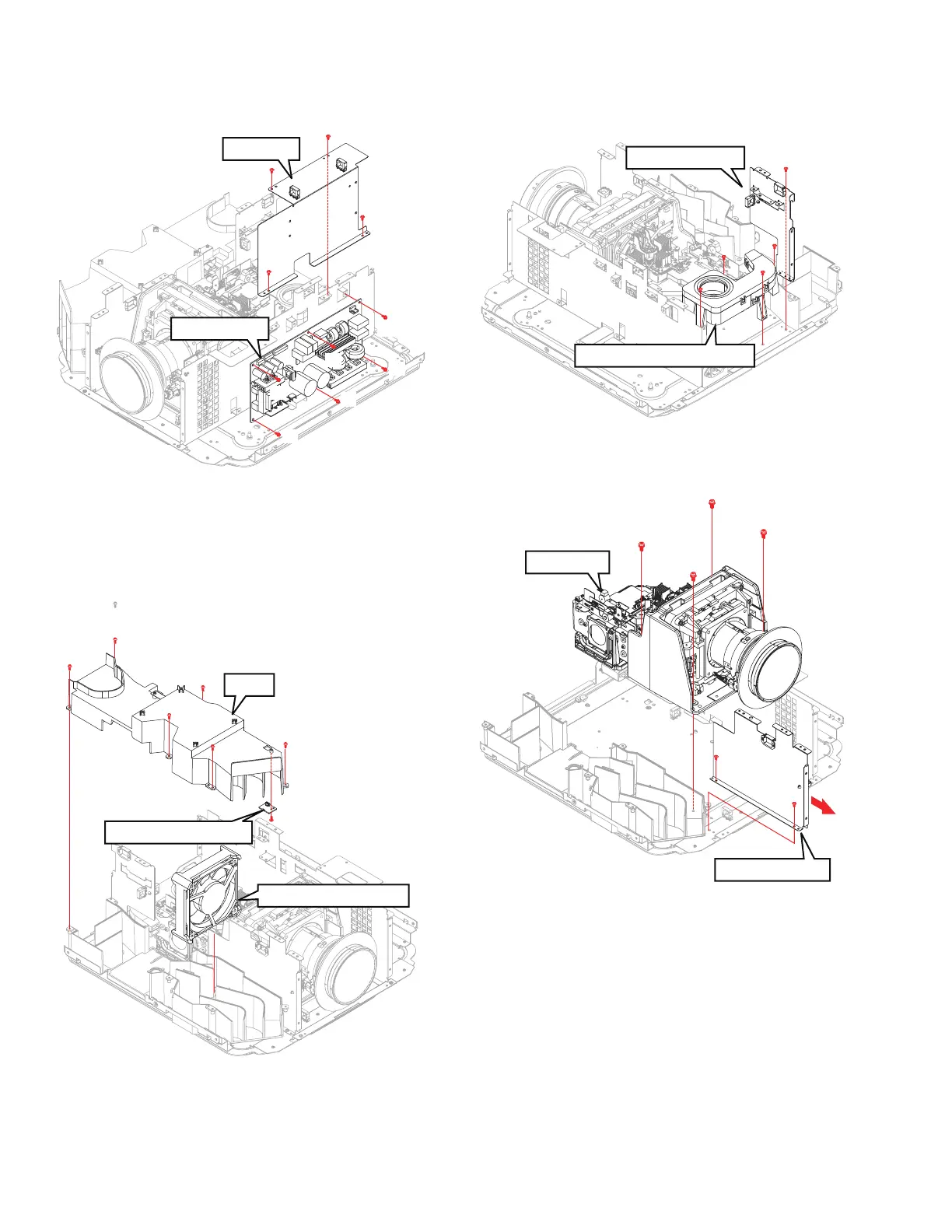

3.2.14 REMOVING THE POWER PWB (Fig.3-14)
(1) Remove the 4 screws (a), and remove the BRACKET.
(2) Remove the 6 screws (b), and remove the POWER PWB.
Fig.3-14
3.2.15 REMOVING THE LAMP EXHAUST FAN and TEMP
SENSOR PWB (Fig.3-15)
(1) Remove the 6 screws (a), and remove the DUCT.
(2) Remove the 1 screw (b), and remove the TEMP SENSOR
PWB.
(3) Remove the LAMP EXHAUST FAN.
Fig.3-15
3.2.16 REMOVING THE LAMP/PCS COOLING FAN (Fig.3-16)
(1) Remove the 1 screw (a), and remove the SIDE BRACKET.
(2) Remove the 4 screws (b), and remove the LAMP/PCS
COOLING FAN.
Fig.3-16
3.2.17 REMOVING THE OP BLOCK (Fig.3-17)
(1) Remove the 2 screws (a), and remove the SIDE BRACKET.
(2) Remove the 4 screws (c), and remove the OP BLOCK.
Fig.3-17
