JVC DLA-RS10 User Manual

2
Preparation
18

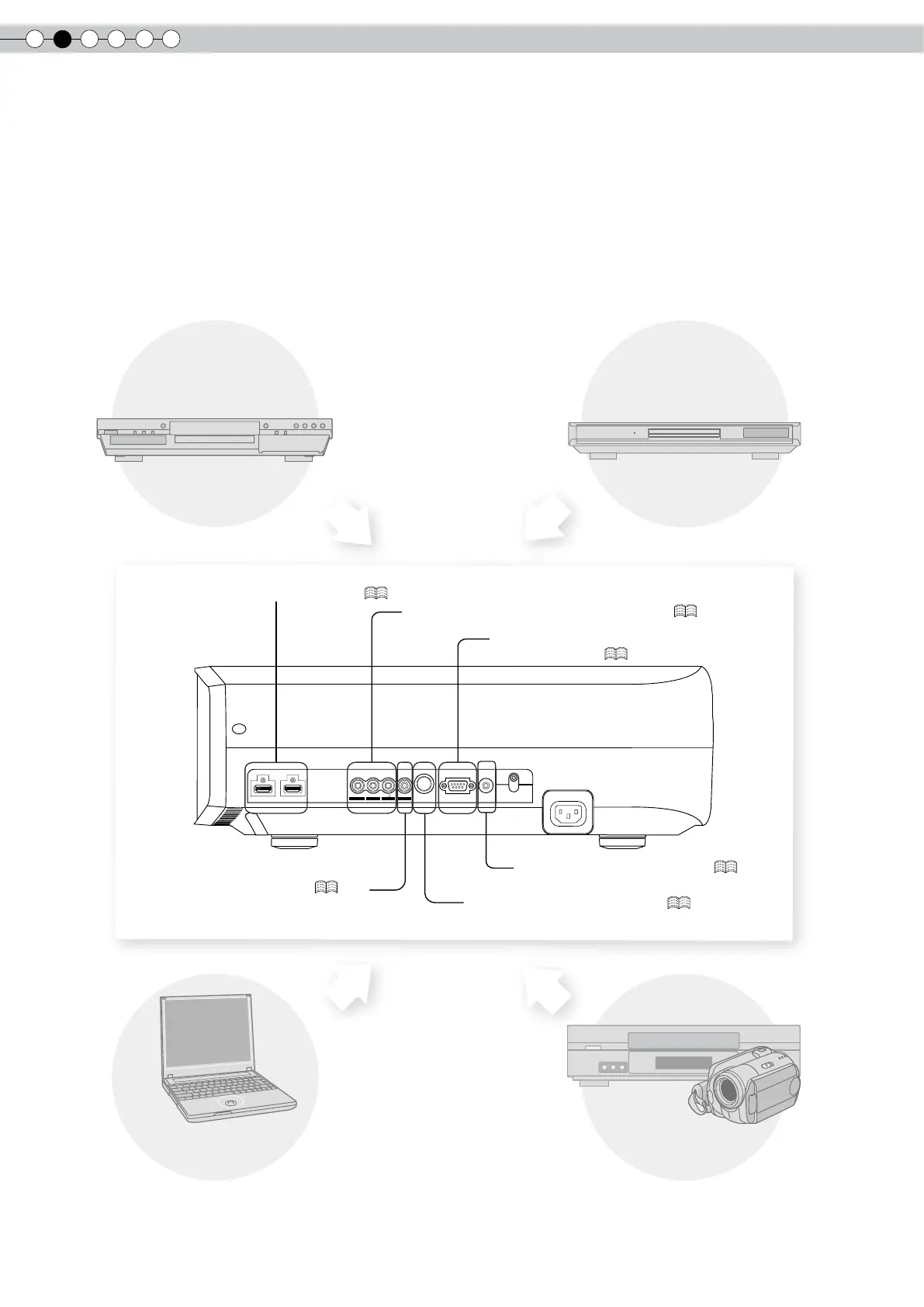

Selecting Connecting Devices
● Do not turn on the power until connection is complete.
● The connection procedures differ according to the device used. For details, refer to the instruction manual of the device to be
connected.
● For audio output, connect the device to an amplier.
● The images may not be displayed depending on the devices and cables to be connected.
Use an HDMI compliant cable (sold separately) with the HDMI logo.
● It may not be possible to connect to this unit depending on the dimension of the connector cover of the cables to be
connected.
G B R
SYNC
S-VIDEO
VIDEO
RS-232C
TRIGGER
HDMI 1
HDMI 2
Y
CB/PB
CR/PR
To connect via HDMI terminal (
P20
)
To connect RS-232C terminal
(external control) (
P52
)
To connect via component video terminals (
P19
)
To connect via video terminal (
P19
)
To connect via S-video terminal (
P19
)
DVD Recorder
DVD Player
Notebook PC
VCR and camcorder
To connect via Trigger terminal (
P22
)
