JVC DLA-X9900BE User Manual

Whole Adjust (Pixel) Operation Procedure
For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.
A
Set “Adjust Area” to “Whole”
B
Select “Adjust Color” and “Adjust Pattern Color”
C
Select “Adjust (Pixel)”, and press the [OK] button
0
The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are
displayed.
Color A.
GAMMA
BACK
Adjust.
COLOR
Color P.
3D
A. Area
PIC.
TEMP FORMAT ADJ.
H 0
V 0
Red
Pixel Adjust
Back
Operate
Select

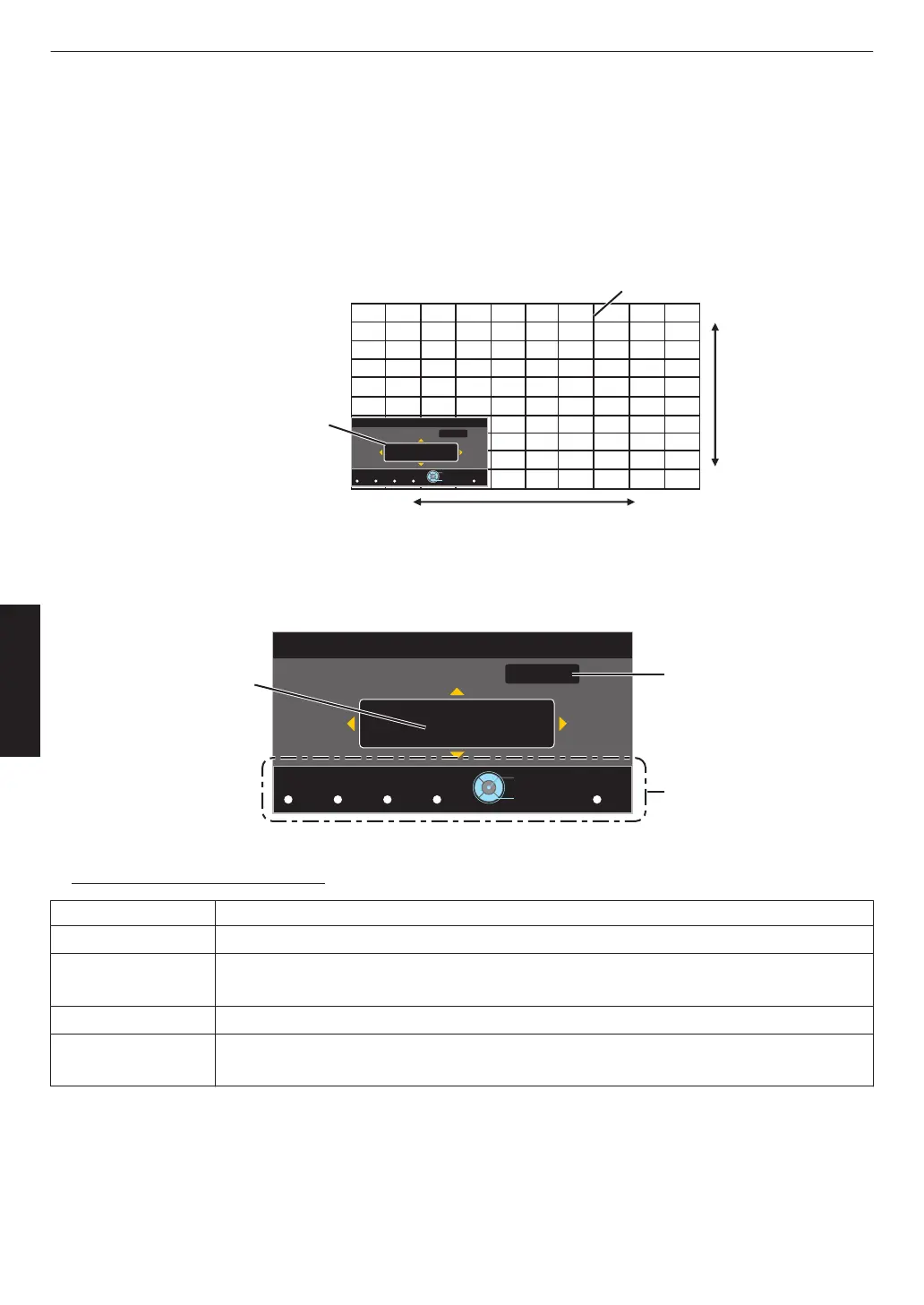

Whole Adjust (Pixel)
V (Vertical)
H (Horizontal)
Adjustment (Pixel) Window
Adjustment Pattern
D
Press the [OK] button to enter the Adjustment mode
E
Use the [JKH I] keys to move and adjust the vertical and horizontal pixels of the entire zone
0
The adjustment setting appears at the center of the Adjustment (Pixel) window.
Color A.
GAMMA
BACK
Adjust.
COLOR
Color P.
3D
A. Area
PIC.
TEMP FORMAT ADJ.
H 0
V 0
Red
Pixel Adjust
Back
Operate
Select
Whole Adjust (Pixel)
Remote Control Operation
Guide
Color for
Adjustment
Pixel Adjustment Setting
F
After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode
Remote Control Operation Guide
Button Name
Description of Operation
[GAMMA] Changes “Adjust Color”.
[COLOR TEMP.] Switches between “Adjust (Pixel)” and “Adjust (Fine)”.
0
Switches to “Adjust (Pixel)” when “Adjust Area” is set to “Zone”.
[3D FORMAT] Changes “Adjust Pattern Color”.
[PIC ADJ.] Switches “Adjust Area”.
0
A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.
54
Adjust/Set
