JVC DLA-X9900BE User Manual

Zone Adjust Operation Procedure
For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust
(Pixel)” and “Adjust (Fine)”.
0
The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.
A
Set “Adjust Area” to “Zone”
B
Select “Adjust Color” and “Adjust Pattern Color”
C
Select Adjust (Fine), and press the [OK] button
0
The Adjustment mode is activated, and the selected adjustment pattern and Zone Adjustment window are
displayed.
0
The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.
Color A.
GAMMA
BACK
Adjust.
COLOR
Color P.
3D
A. Area
PIC.
TEMP FORMAT ADJ.
0
0 / 0
0
V
H
Position
Red
Zone Adjust
Pixel Adjust
V (Vertical)
H (Horizontal)

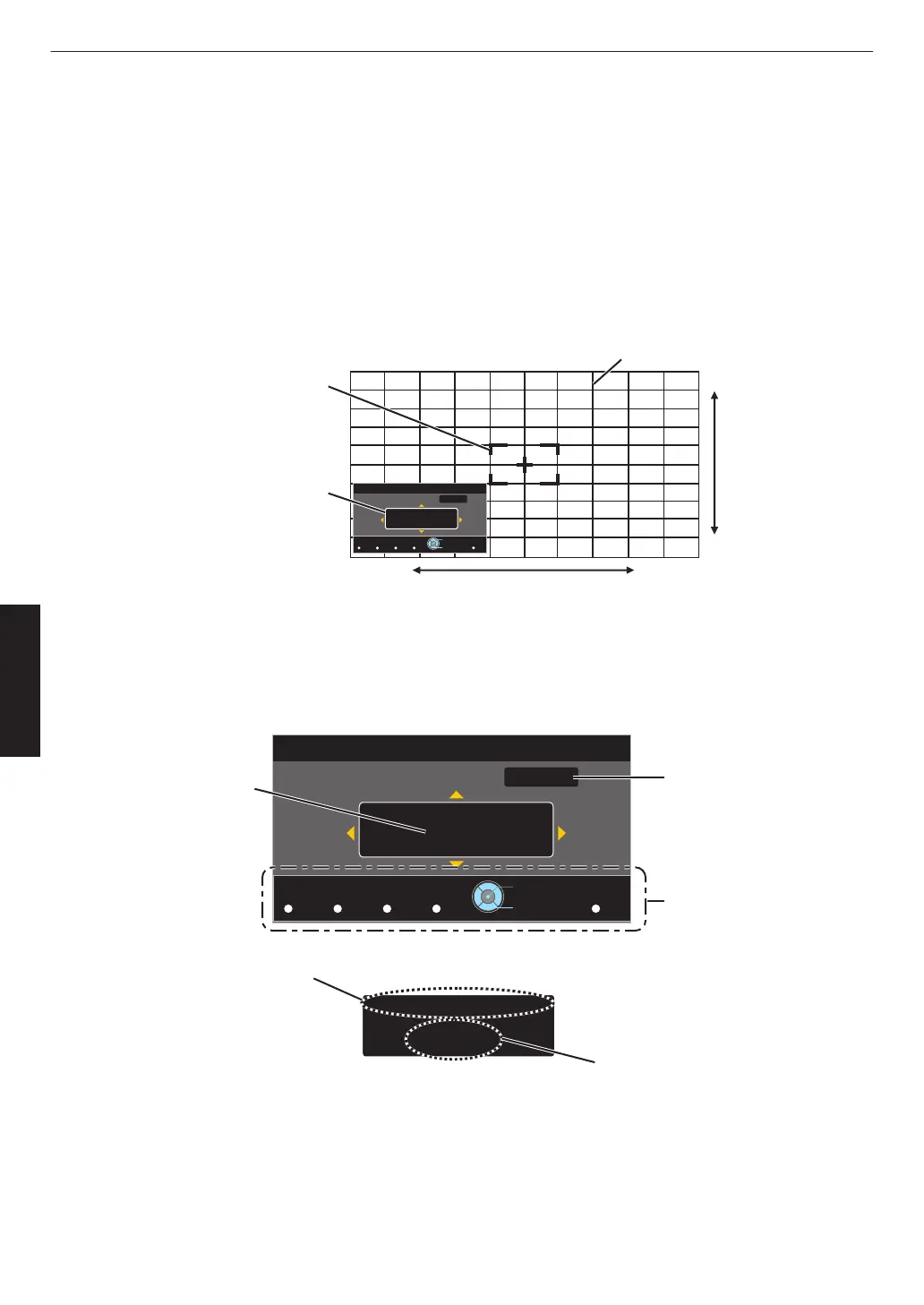

Zone Adjustment Window
Zone Cursor
Adjustment Pattern
Back
Operate
Select
D
Press the [JKH I] keys to move the cursor to the point to be adjusted
E
Press the [OK] button to enter the Adjustment mode
F
Use the [JKH I] keys to move and adjust the vertical and horizontal pixels of the entire zone
0
The adjustment setting appears at the center of the Zone Adjustment window.
H −31
V 7
Color A.
GAMMA
BACK
Adjust.
COLOR
Color P.
3D
A. Area
PIC.
TEMP FORMAT ADJ.
0
0 / 0
8 / 5
0
V
H
Position
Red
Zone Adjust
Pixel Adjust
Position
Adjustment Setting
Cursor Position
Remote Control Operation
Guide
Color for
Adjustment
Pixel Adjustment Setting
Back
Operate
Select
G
After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode
56
Adjust/Set
