JVC FS-Y1 Service Manual

1-10 (No.MB376)
3.1.5 Removing the rear panel

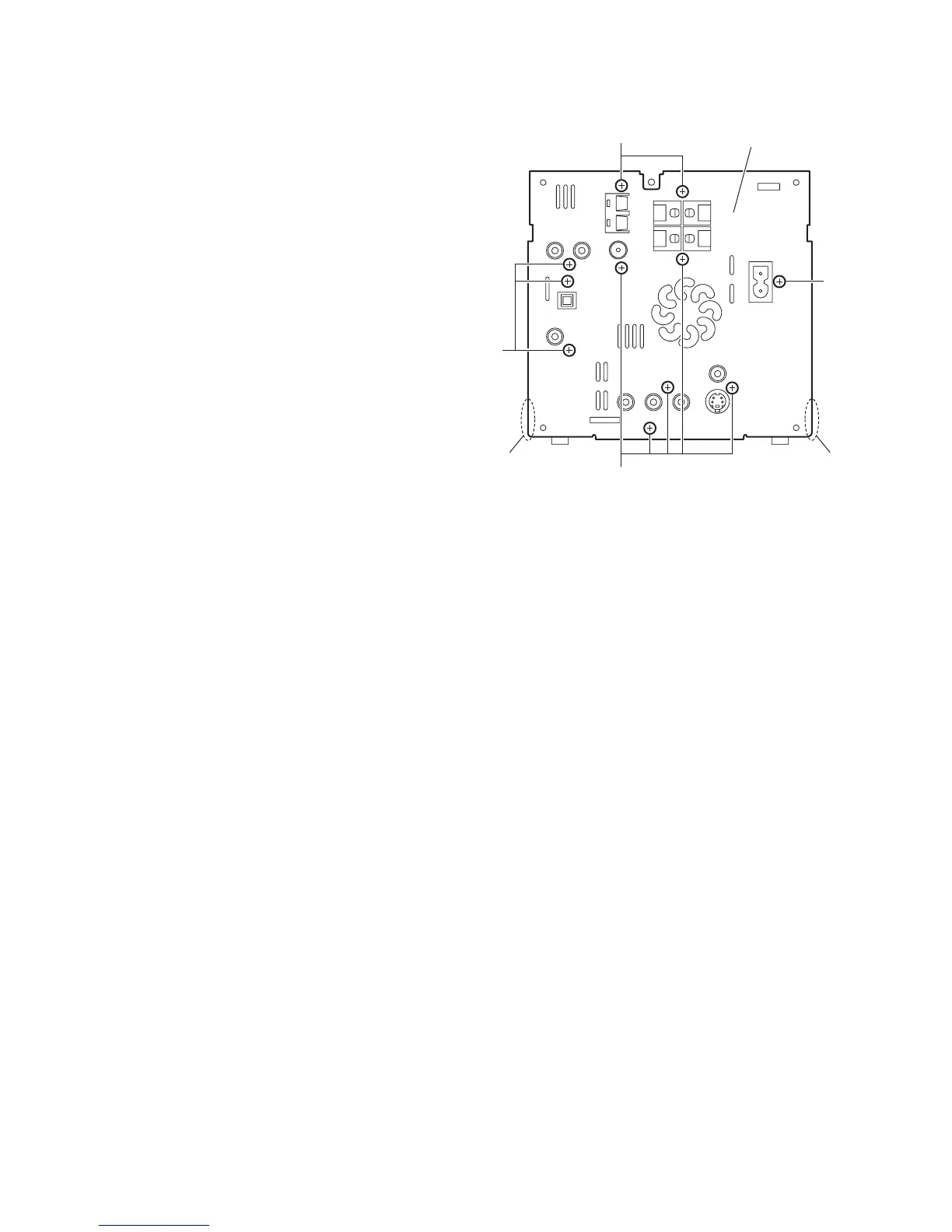

(See Fig.12)
• Remove the side panels L/R and top panel assembly.
(1) From the back side of the main body, remove the ten
screws M and screw N attaching the rear panel.
(2) From the both sides of the main body, release the joints f
and remove the rear panel.
Fig.12
M
M
N
M
Rear panel
ff
