JVC FS-Y1 Service Manual

(No.MB376)1-9
3.1.4 Removing the tuner
(See Figs.10 and 11)
• Remove the side panels L/R and top panel assembly.
(1) From the back side of the main body, remove the two
screws K attaching the tuner to the rear panel. (See
Fig.10.)
(2) Disconnect the card wire from the connector CN1
on the
tuner. (See Fig.11.)

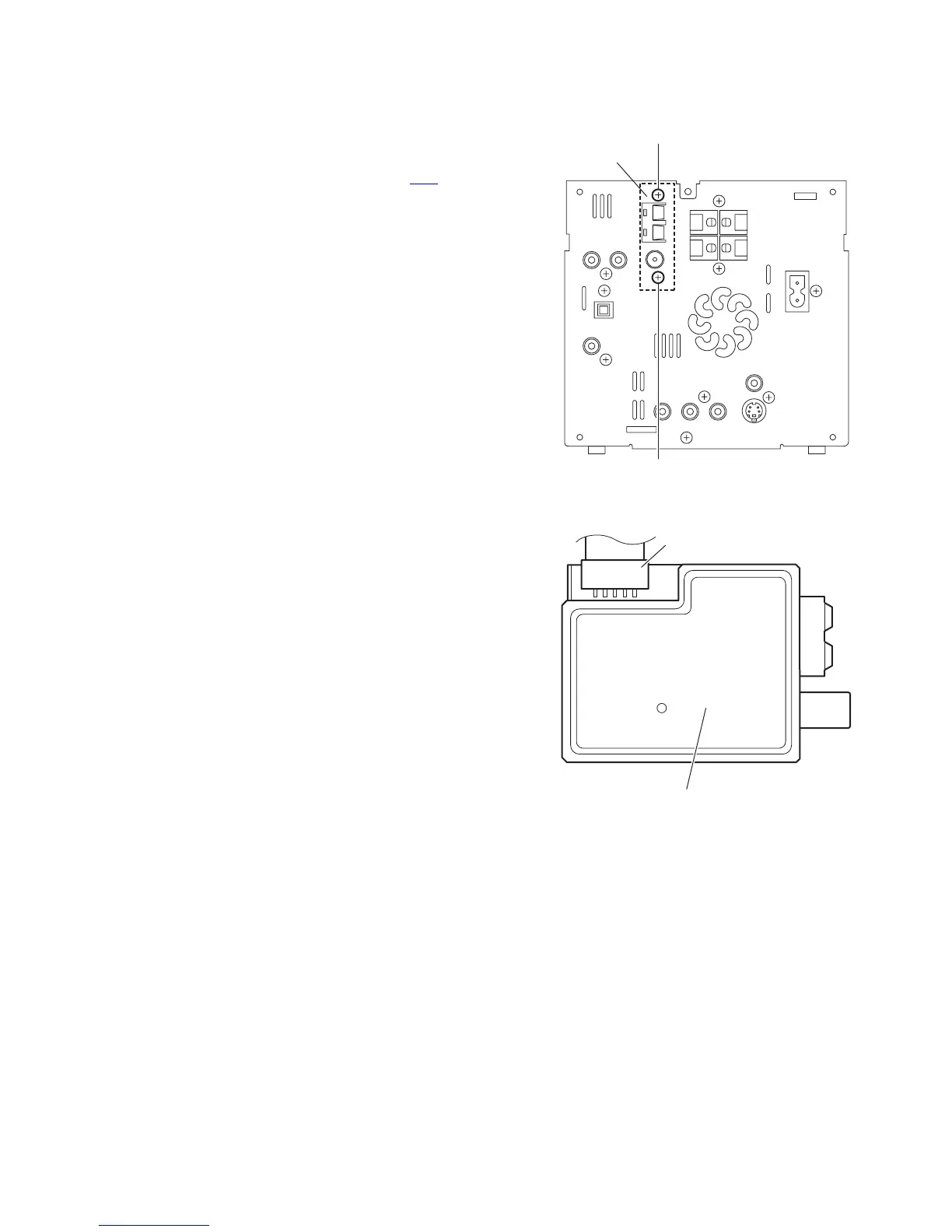

Fig.10
Fig.11
K
K
Tuner
Tuner
CN1
