1-16 (No.MB376)
3.1.13 Removing the switch board
(See Fig.29)
• Remove the side panels L/R and top panel assembly.
From the inside of the top panel assembly, remove the three
screws Y and take out the switch board.

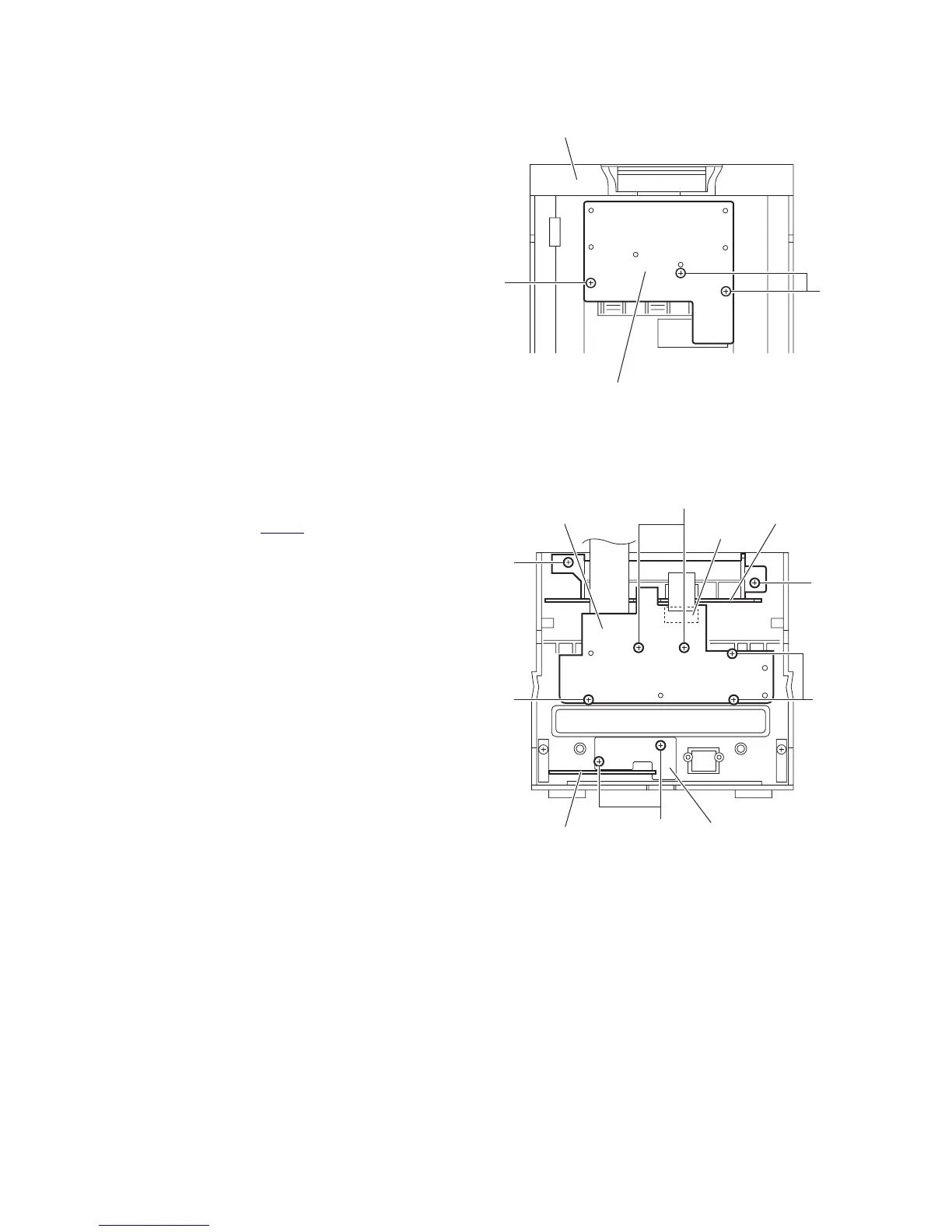

Fig.29
3.1.14 Removing the front board
(See Fig.30)
• Remove the side panels L/R, top panel and front panel assem-
blies.
(1) From the inside of the front panel assembly, disconnect the
card wire from the connector CN605
on the front board.
(2) Remove the five screws Z and take out the front board.
3.1.15 Removing the FL board
(See Fig.30)
• Remove the side panels L/R, top panel assembly, front panel
assembly and front board.
Remove the two screws Z and take out the FL board.
3.1.16 Removing the headphone board
(See Fig.30)
• Remove the side panels L/R, top panel and front panel assem-
blies.
(1) Remove the two screws Z and take out the support board.
(2) Take out the headphone board.
Fig.30
Top panel assembly
Switch board
Front board
FL board
CN605
Z
Z
Z
Z
Z
Z
Headphone board
Support board
