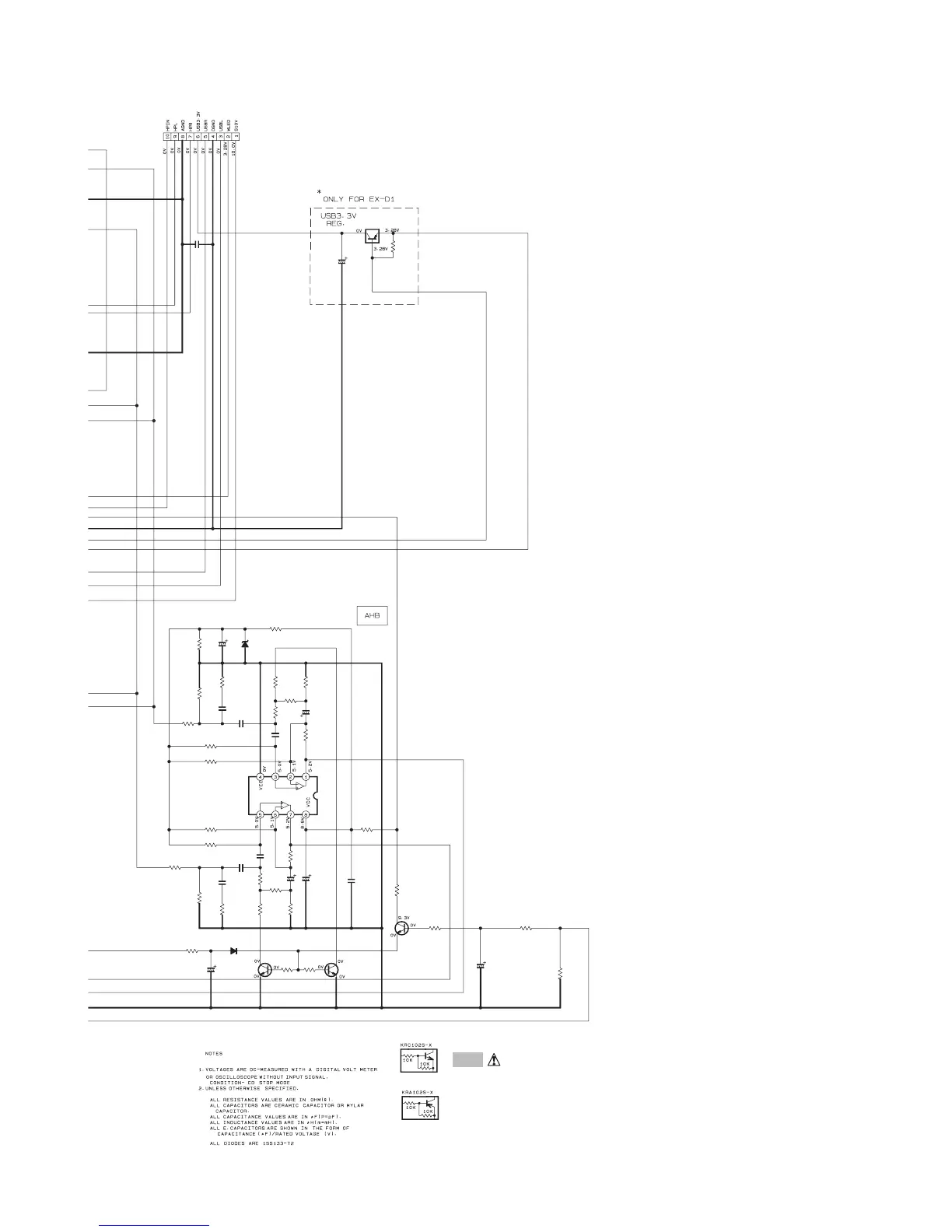

2-10
SHEET 4
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Q5750
CN501
C5380
R5398
R5271
C5273
C5272
R5272
R5276
R5275
R5273
R5172
R5377
C5173
R5378
R5279
R5179
R5176
R5392
R5171
Q5371
Q5372
R5373
R5374
R5277
R5281
R5181
D5371
R5372
Q5373
R5376
R5375
R5371
C5750
R5750
C5918
IC510
C5274
R5274
C5275
C5174
C5374
R5278
R5178
R5174
C5175
R5175
C5172
R5173
D5372
R5177
C5371
C5372
C5373
KRA111S-X
QGA2001C1-10
NI
47K
1.8K
0.047
0.47
180K
15K
27K
1.8K
180K
1K
0.047
10K
1K
1K
15K
1.5K
1.8K
KTC3875/YG/-X
KTC3875/YG/-X
10K
10K
47K
NI
NI
1SS133-T2
51K
KTC3875/YG/-X
100K
270
100
47/16
47K
100p
RC4580ID-X
0.047
1.5K
10/35
0.047
47/16
3.3K
3.3K
1.5K
10/35
27K
0.47
1.8K
MTZJ5.1B-T2
47K
100/16
10/50
1/50
TO FW621 (SHEET
5)
46
48
Table of Contents
Table of Contents
1
Area Suffix
1
Specification
2
Precaution
3
Safety Precautions
3
Warning
3
Critical Parts for Safety
3
Handling the Traverse Unit (Optical Pickup)
4
Grounding to Prevent Damage by Static Electricity
4
Handling the Optical Pickup
4
Preventing Static Electricity
4
Specific Service Instructions
5
Main Body Section
6
Removing the Side Panel L and Side Panel R
6
Disassembly
6
Removing the Top Panel Assembly
7
Removing the Front Panel Assembly
8
Removing the Tuner
9
Removing the Rear Panel
10
Removing the Switching Power Supply
11
Removing the Digital Amplifier Board Assembly
12
Digital Amplifier Board Assembly
12
No.mb376)1
12
Removing the Digital Amplifier Board
13
Removing the Micom Board
14
Removing the Regulator Board
14
Removing the Video Board
14
See Figs.10 and
14
Removing the DVD Mechanism Assembly
15
Removing the Switch Board
16
Removing the Front Board
16
Removing the FL Board
16
Removing the Headphone Board
16
Removing the Tray Assembly
17
Removing the Clamper Base
17
DVD Mechanism Section
17
Removing the Traverse Mechanism Assembly
18
Removing the DVD Module Board
18
Removing the Pickup
19
Attaching the Pickup
20
Removing the Feed Motor
21
Removing the Spindle Motor Board
21
Removing the Motor
22
Service Mode
23
Confirming Methods
23
Adjustment
23
DVD Test Mode
24
DVD Initialize
24
To Exit DVD TEST Mode
24
Eeprom Initialization
24
DVD Check Mode
25
FL Display (DVD Function)
27
Indicating Check for FL Display
27
Troubleshooting
33
Schematic Diagrams
35
Block Diagram
38
Standard Schematic Diagrams
40
DC Regulator and Audio Output Section
40
Digital Amplifier Circuit Section
42
System Control Section
44
Volume, AHB Circuit, HP. Circuit and Subwoofer Section
46
FL Display, User Control Keys, Remocon Circuit and Headphone Section
48
Video Driver and Video out Component Section
50
DVD Servo and DVD System Control Section
52
DVD Tray Loading Control Section
54
Printed Circuit Boards
56
Main Board
56
DVD Module Board
61
DVD Loading Switch Board
62
Other manuals for JVC FS-Y1
