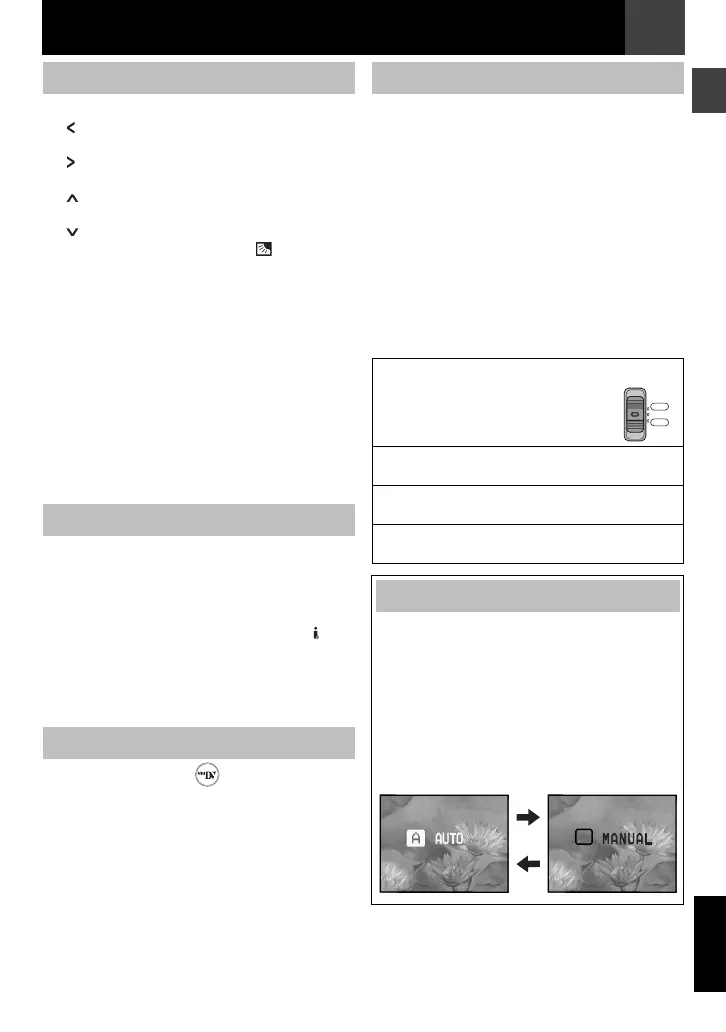

Getting Started
ENGLISH
a Control Lever (墌 7)
: Left / Rewind [ 3 ] (墌 18) /
Quick Review [QUICK REVIEW] (墌 16)
: Right / Fast-Forward [ 5 ] (墌 18) /
16:9 Wide Screen Button [16:9] (墌 15)
: Up / Play / Pause [4/9] (墌 18) /
Manual Focus [FOCUS] (墌 26)
: Down / Stop [8] (墌 18) /
Backlight Compensation (墌 27) /
Spot Exposure (墌 27)
Press down: SET
B Menu Button [MENU] (墌 21)
C Auto Button [AUTO] (墌 11)
D Data Battery Button [DATA] (墌 14)
E Recording Start/Stop Button [START/STOP]
(墌 16)
F Zoom Lever [T/W] (墌 17) /
Speaker Volume Control [VOL. +, –] (墌 18)
G Power Switch [PLAY, OFF, REC]
H Lock Button
I Cassette Open/Eject Switch [OPEN/EJECT]
(墌 15)
J Battery Release Button [BATT.] (墌 13)
The connector is located beneath the LCD
monitor.
K Digital Video Connector [DV OUT] (i.LINK*)
(墌 31, 32)
* i.LINK refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.LINK
standard.
The connectors are located beneath the cover.
L Audio/Video Output Connector [AV] (墌 20)
M DC Input Connector [DC] (墌 13)
N POWER/CHARGE “ ” Lamp (墌 13)
O LCD Monitor (墌 10)
P Shoulder Strap Eyelet (墌 9)
Q Grip Strap (墌 9)
R Camera Sensor
(Be careful not to cover this area, a sensor
necessary for shooting is built-in here)
S Stereo Microphone
T Lens
U Speaker (墌 18)
V Battery Cover (墌 13)
W Cassette Holder Cover (墌 15)
X Stud Hole (墌 9)
Y Tripod Mounting Socket (墌 9)
Z Battery Pack Mount (墌 13)
a Connector Cover
Controls
Connectors
Indicator
Other Parts
Power Switch Position
PLAY:
To play back a recording on the tape.
OFF:
To switch off the camcorder.
REC:
To perform recording on the tape.
Auto/Manual Mode
PLAY
REC
OFF
Press AUTO button repeatedly to switch to
auto/manual recording mode. When manual
mode is selected, the indicator “M” appears
on the LCD monitor.
Auto Mode : A
You can record using no special effects or
manual adjustments.
Manual Mode : M
Recording is possible by setting various
functions manually.
M
Set the power switch while
pressing down the lock button.
