Video unit equipped with
a DV input connector
Connection To A Video Unit Equipped With
A DV Connector
Connection to the GV-DT3 Digital Printer (optional) allows
you to print out images or transfer them to a PC. It is also
possible to copy recorded scenes from the camcorder onto
another video unit equipped with a DV connector. This
function is called Digital Dubbing ( pg. 45), which
offers virtually no image or sound deterioration.
1
Make sure all units are turned off.
2
Make connections to the device you want to connect
to using a DV cable, as shown in the illustration.
3
If necessary, connect the PC connection cable
(provided) to the printer’s PC connector and the PC’s
RS-232C connector.
4
Turn the camcorder’s Power Switch to “ ” while
pressing down the Lock Button located on the switch
and turn on the other units.
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the battery pack
(  pg. 7).
● For Digital Dubbing, this camcorder can be connected
only to one device at a time. The GR-DVL309/DVL109
can be used as both a player and a recorder. The
GR-DVL308/DVL108 can be used only as a player
(  pg. 45).
● If Still Playback, Slow-Motion Playback, Fast-Forward or
Rewind is attempted with the camcorder connected to a
video unit via the DV connector, the image will take on
an effect similar to a coloured mosaic pattern or it will
become black.
● Also refer to the instruction manuals of the connected
units.
For GR-DVL308/DVL108 Owners:
When using a DV cable, be sure to use the optional JVC
VC-VDV204U DV cable.

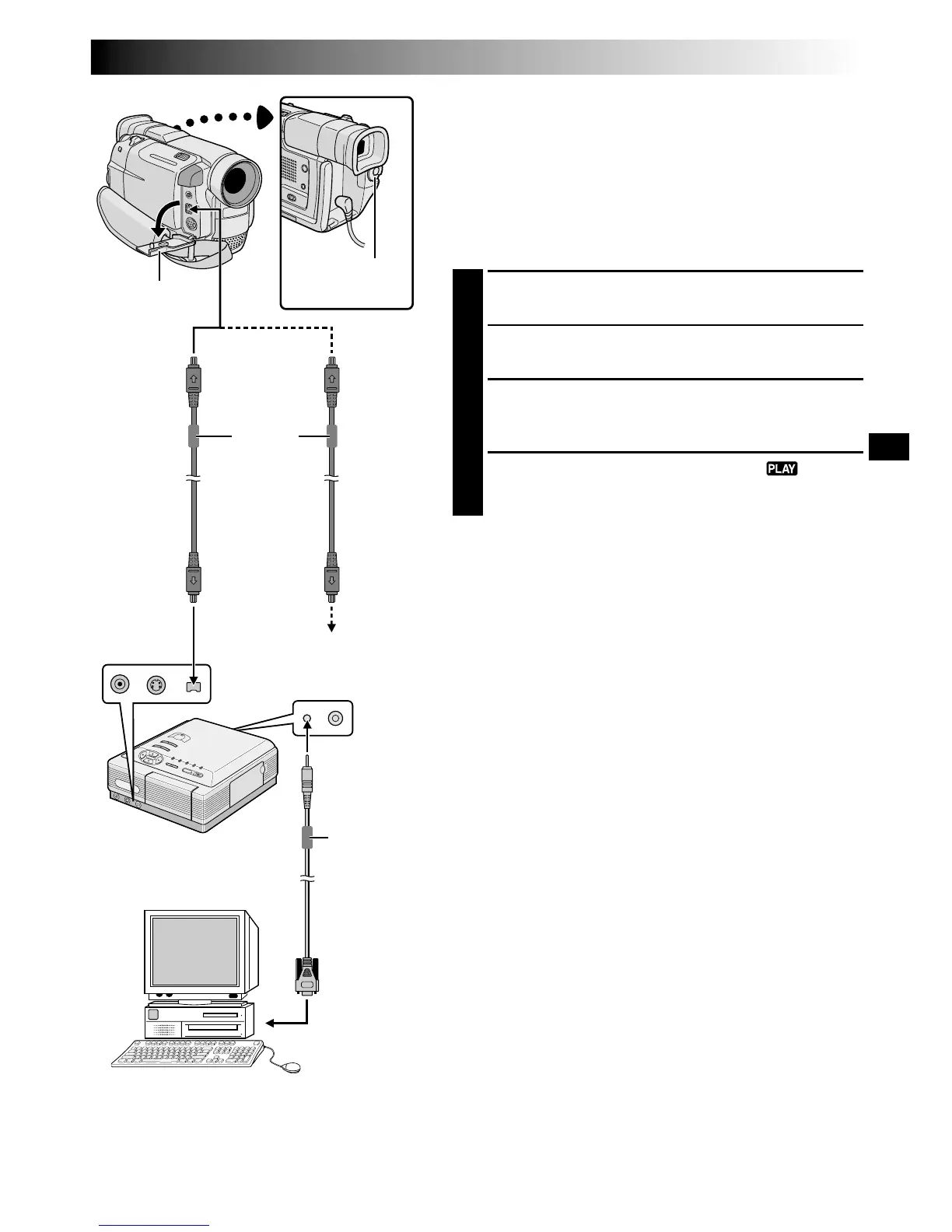

To
DV IN**/OUT
To DV
connector
Digital Printer
To DV IN
connector
PC
DV cable***
To PC
connector
PC connection
cable
(provided)
To RS-232C
Power Switch
Core filter
Connector
cover*
* When connecting the cable, open this cover.
** GR-DVL309/DVL109 only.
*** Provided with GR-DVL309/DVL109 only.
Core filter
