CONNECTIONS
Basic Connections
1 2

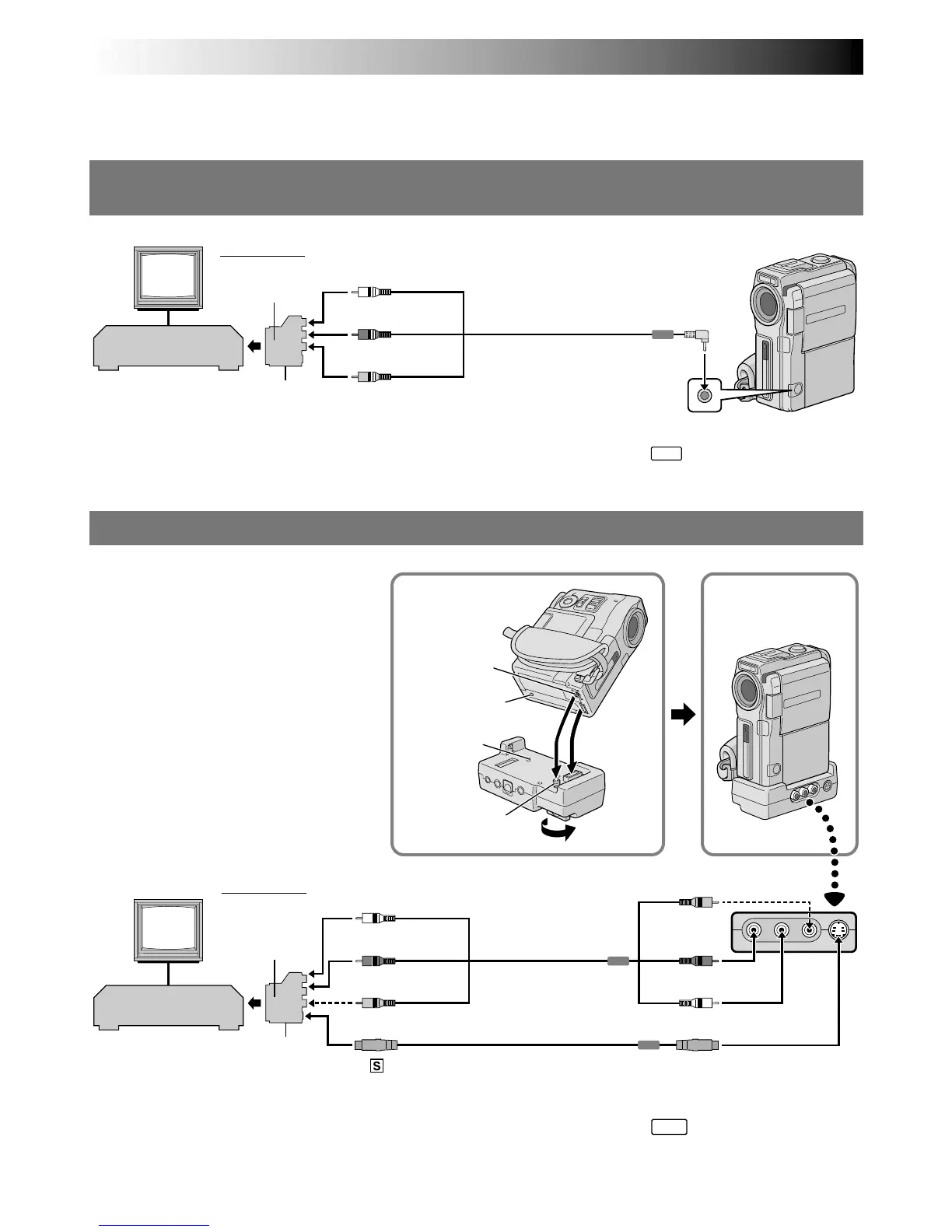

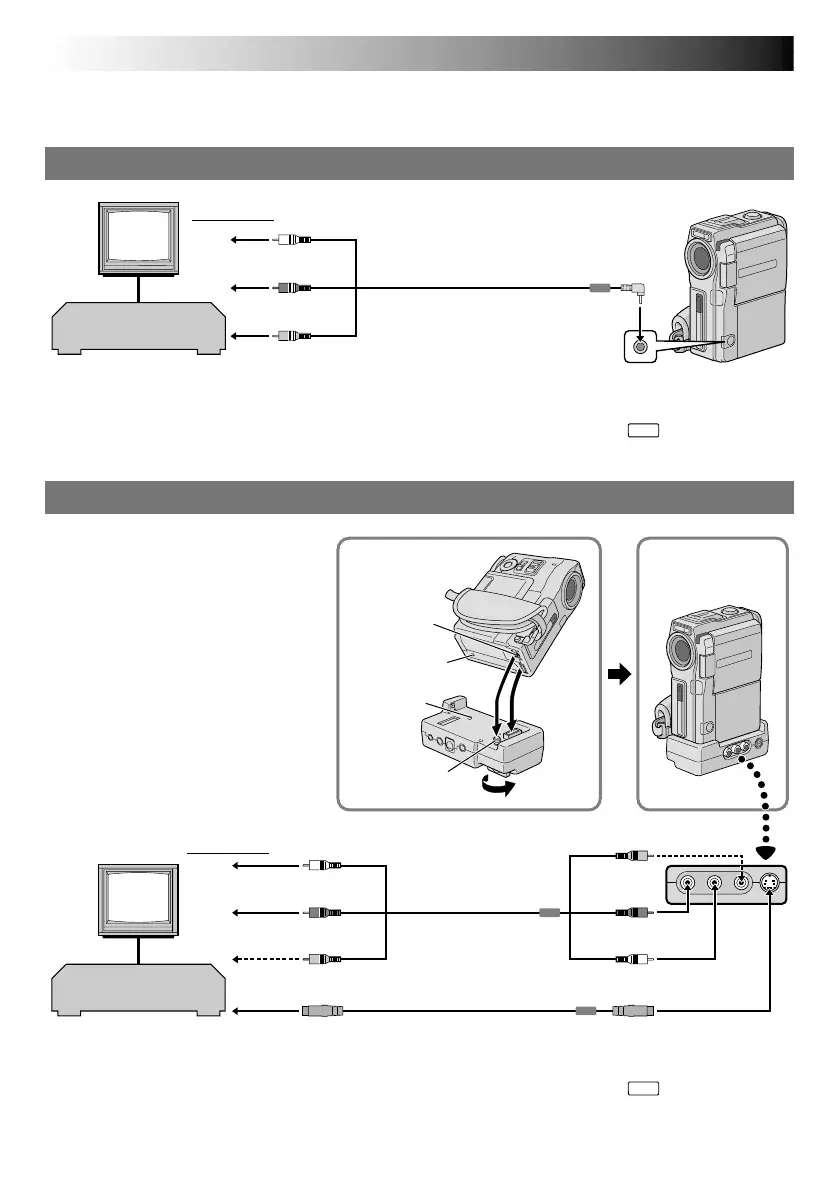

These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
TV
VCR
Yellow to
VIDEO
Audio/Video cable
[mini-plug to RCA plug]
(provided)
Red to
AUDIO R**
White to
AUDIO L**
Red to
AUDIO R**
White to
AUDIO L**
White to
AUDIO L**
To S-VIDEO IN
To
AV OUT
Red to
AUDIO R**
Yellow to
VIDEO IN*
Yellow to VIDEO*
To S
S-Video cable
(provided)
Audio/Video cable
[RCA plug to RCA
plug] (provided)
TV
VCR
Docking Station Attachment
1 Align the direction stud and screw on
the Docking Station with the stud hole
and tripod mounting socket on the
camcorder.
2 Tighten the screw.
•When removing the camcorder, loosen
the screw and detach the camcorder.
Connector cover*
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images with the POWER Switch set to “
M
EM
OR
Y
PLA
Y
”.
To TV or VCR
To TV or VCR
* Connect when the S-Video cable is not used.
** The Audio cable is not required for watching still images with the POWER Switch set to “
M
EM
O
R
Y
PLAY
”.
Tripod
mouting
socket
Stud hole
Stud
Screw
B. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
A. Connection to a TV or VCR equipped only with A/V input (RCA type) connectors
