PLAYBACK Connections

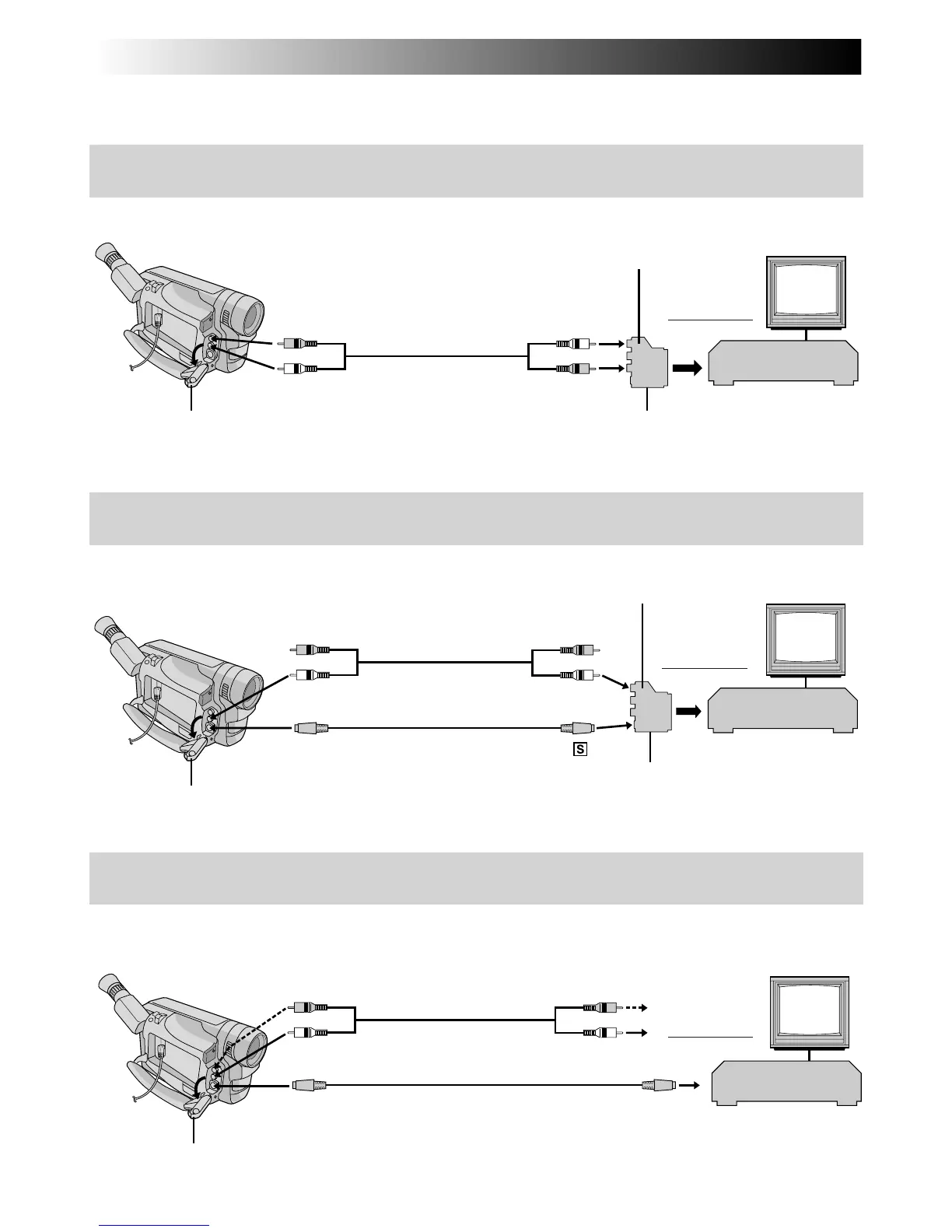

These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
A/V cable
(provided)
Yellow to Video
Output
TV
VCR
Connector cover*
To TV or VCR
Yellow to VIDEO
* When connecting the cables, open this cover.
Connector cover*
S-Video cable
(provided)
To S-Video Output
A/V cable
(provided)
White to AUDIO
(L/MONO)
VCR
TV
To -IN
White to
Audio Output
A. Connection to a TV or VCR equipped with a SCART connector compatible only with regular video
signal
Use the provided Audio/Video (A/V) cable.
To TV or VCR
White to Audio Output
White to AUDIO
(L/MONO)
Cable Adapter**
Set to CVBS
* When connecting the cables, open this cover.
** Commercially available (provided with GR-SXM46/SXM26/SX41/SX21 only).
To S-VIDEO INTo S-Video Output
Yellow to
VIDEO in
TV
To TV or VCR
B. Connection to a TV or VCR equipped with a SCART connector compatible with Y/C signal
(GR-SXM46/SXM26/SX41/SX21 only)
Use the provided Audio/Video (A/V) cable and S-Video cable.
Yellow:
not connected
Set to Y/C
Cable Adapter (provided)
Yellow:
not connected
* When connecting the cables, open this cover.
Connector cover*
VCR
White to
AUDIO in
S-Video cable
(provided)
C. Connection to a TV or VCR equipped with an S-VIDEO IN and/or A/V input (RCA type)
connectors (GR-SXM46/SXM26/SX41/SX21 only)
Use the provided Audio/Video (A/V) cable and S-Video cable.
Yellow to
Video Output
White to
Audio Output
A/V cable
(provided)
When the S-Video cable is
not used.
