JVC GY-HM620E - Page 11

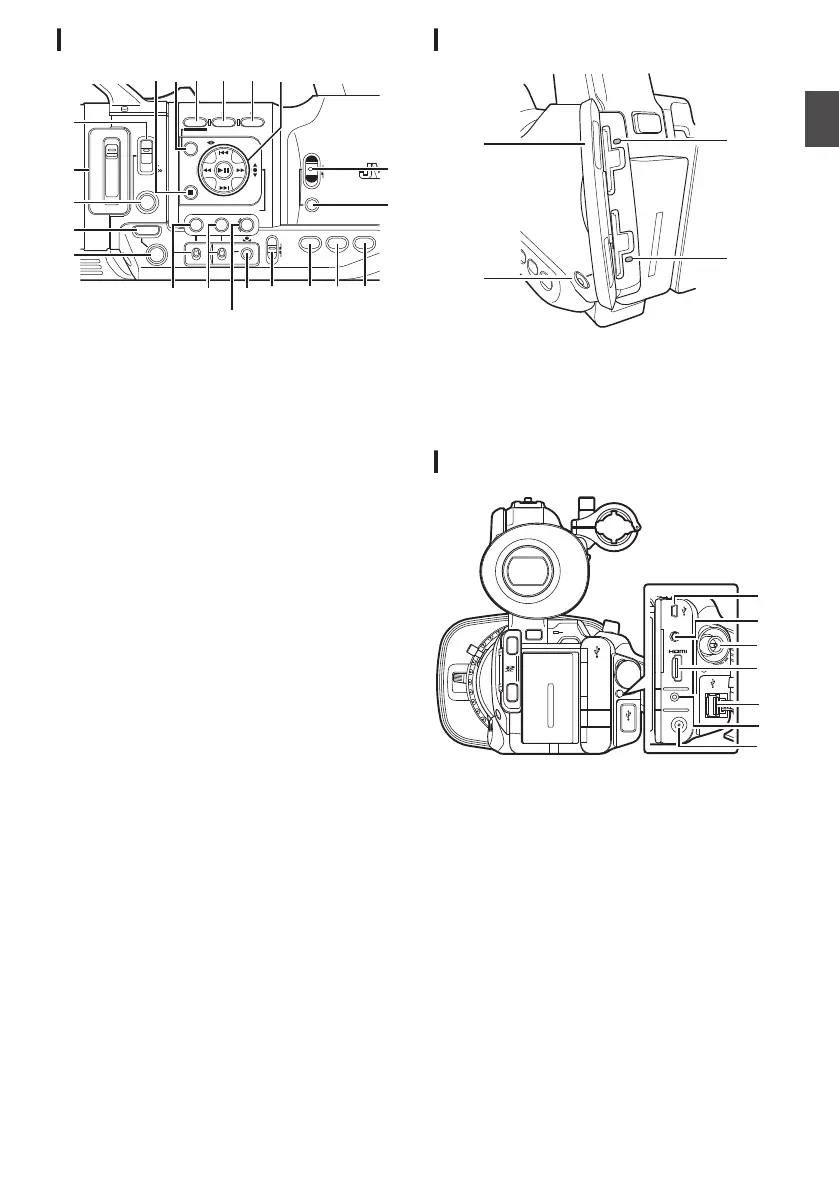

Side Control Panel
.
ND FILTER FOCUS
AE LEVEL
MANU
PUSH AUTO
MENU/THUMB
FOCUS ASSIST/1 OIS / 2 LOLUX / 3
1/64
1/16
1/4
OFF
PRESET
IRIS
GAIN
CANCEL
L
M
H
B
A
WHT BAL SHUTTER
FULL AUTO
MODE
POWER
ON
OFF
(CHG)
ON
OFF
AE LOCK/4 ZEBRA/5 MARKER/6
PUSH AUTO
TIME CODE
AUTO
A
B
C
E
S R Q
O
N
MLKJ
T
D
P
H
I
U
F G
A
[FOCUS AUTO/MANU/∞]
Focus Switch
B
[ND FILTER] ND Filter Switch
C
[PUSH AUTO] Focus Push Auto Button
D
[IRIS] Iris Auto/Manual Selection Button
E
[PUSH AUTO] Iris Push Auto Button
F
[GAIN] Gain Auto/Manual Selection Button / [L/
M/H] Sensitivity Selection Switch
G
[WHT BAL] White Balance Auto/Manual
Selection Button / [B/A/PRESET] Selection
Switch
H
[SHUTTER] Shutter Speed Auto/Manual
Selection Button
I
[y] One Push Auto White Balance Button
J
[FULL AUTO ON/OFF] Full Auto Switch
K
[AE LOCK/4] AE Lock/User 4 Button
L
[ZEBRA/5] Zebra/User 5 Button
M
[MARKER/6] Marker/User 6 Button
N
[MODE] Camera/Media Mode Selection Button
O
[POWER ON/OFF(CHG)] Lock Power ON/OFF
Switch
P
Cross-Shaped Button (JKHI)/Set Button (R)
Q
[LOLUX/3] Low-light Shooting/User 3 Button
R
[OIS/2] Optical Image Stabilizer/User 2 Button
S
[FOCUS ASSIST/1] Focus Assist/User 1 Button
T
[MENU/THUMB] Menu/Thumbnail Button
U
[CANCEL] Cancel Button
SD Slot
.
A
B
C
D
A
SD Card Cover
B
[SLOT A/B] Card Slot Selection Button
C
Card Slot B Status Indicator
D
Card Slot A Status Indicator
Rear Terminal
.
DEVICE
AV
HDMI
REMOTE
DC
HD/SD
SDI
POWER
/CHG
BATT .RELEASE
A
B
OPEN
CLOSE
HOST
AV
DEVICE
HOST
DC
REMOTE
C
D
B
A
E
F
G
A
[DEVICE] USB Mini Terminal
B
[AV]
AV Output Terminal
C
[HD/SD SDI] SDI Output Terminal (BNC)
D
[HDMI] HDMI Output Terminal
E
[HOST] USB Host Terminal a
F
[REMOTE] Remote Terminal
G
[DC] DC Input Terminal
