JVC GY-HM620E - Names of Parts

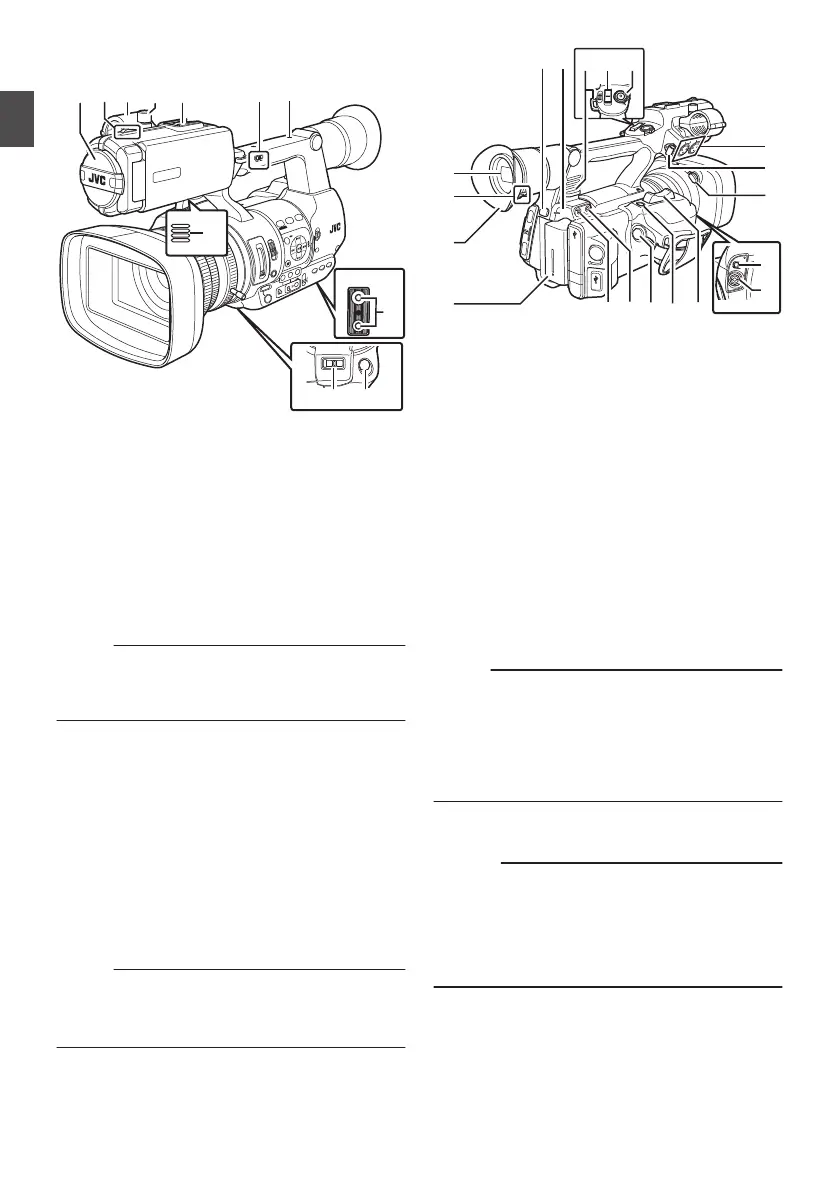

Names of Parts
.
SERVO MANUAL
ZOOM
REC
H
I
J
K
E GDACBF
FIX VAR OFF
FOCUS ASSIST/1
OIS/2
LOLUX/3
MENU/THUMB
AE LEVEL
FOCUS
ND FILTER
1/64
1/16
1/4
OFF
POWER
MARKER/6
ZEBRA/5
AE LOCK/4
SHUTTER
WHT BAL
CANCEL
PUSH AUTO
IRIS
GAIN
FULL AUTO
PUSH AUTO
PRESET
B
L
M
H
A
ON
OFF
ON
MANU
∞
MODE
OFF
(CHG)
SLOT
A/B
TIME CODE
AUTO
Bottom
A
Built-in Microphone
B
Tally Lamp
C
Microphone Holder
D
Microphone Holder Lock Knob
E
Shoe
F
[FIX/VAR/OFF
] Zoom Speed Switch
G
Accessory Mounting Screw Hole
H
Tripod Mounting Hole
I
[REC] Record Trigger Button
Memo :
0
This button is interlocked with the [REC] button
R
on the grip and the [REC/HOLD] button Z at
the top of the handle.
J
[ZOOM SERVO/MANUAL] Zoom Operation
Servo/Manual Switch
K
Monitor Speaker
L
Viewfinder
M
Visibility Adjustment Lever
N
Eyecup
O
Battery
P
[x] Headphone Jack (Φ3.5 mm)
Q
[AUX] AUX Input Terminal (Φ3.5 mm)
R
[REC] Record Trigger Button
Memo :
0
This button is interlocked with the [REC] button
I at the bottom of the lens and the
[REC/
HOLD] button Z at the top of the handle.
.
AUX
INPUT2
INPUT1
DEVICE
AV
A
BATT.RELEASE
POWER
/CHG
B
HDMI
REMOTE
DC
HD/SD
SDI
REC
HOST
W
T
REC
HOLD
IN
OUT
TC
L
M
N
O
d
R
S T
X
Z
a
bc
Q
P
U
V
Y
W
S
[C.REVIEW/7] Clip Review/User 7 Button
T
Zoom Lever at the Grip
U
[TC] TC Input/Output Terminal
V
[IN/OUT] TC IN/OUT Selection Switch
W
Hood Release Button
X
External Microphone Cable Clamp
Y
[INPUT1/INPUT2] Audio Input Terminal 1, 2
(XLR 3-pin x 2)
Z
[REC/HOLD] Record Trigger Button/Lock
Switch
Memo :
0
This button is interlocked with the [REC] button
R on the grip and the [REC] button
I at the
bottom of the lens.
0
The [REC] button R
on the grip and the [REC]
button I at the bottom of the lens will not be
locked.
a
Zoom lever at the Handle
b
Shoulder Belt Mount (x2)
Caution :
0
Be sure to use a shoulder belt with the strength
to withstand the weight
of this camera recorder.
0
If the shoulder belt is not properly attached, the
camera recorder may fall and cause injuries.
Check the instruction manual provided with the
shoulder belt before using.
c
[POWER/CHG] Power/Charging Display Lamp
d
[BATT.
RELEASE]
Battery
Lock
Release Button
10
Introduction
