JVC HR-A51U - Rear Panel and Display; VCR Rear Panel Connections; Front Display Panel Indicators

EN 41

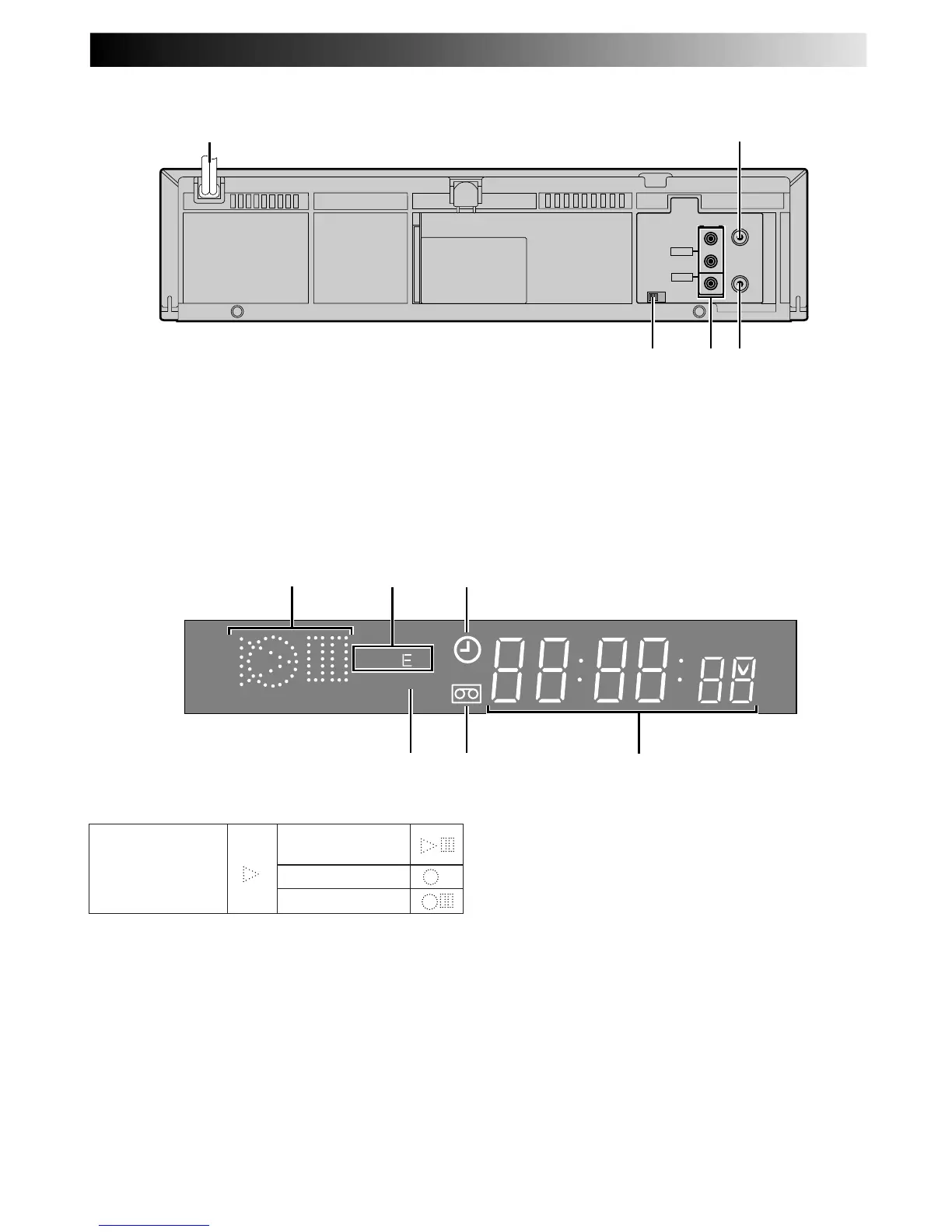

REAR VIEW
ANT. IN
RF OUT
CH3 CH4
1
53
2
4
OUT
AUDIO
VIDEO
1 Power Cord (墌 pg. 6)
2 ANT. IN Connector (墌 pg. 6)
3 Channel 3/4 Switch (墌 pg. 6)
4 VIDEO/AUDIO Output Connectors (墌 pg. 33)
5 RF OUT Connector (墌 pg. 6)
2 Tape Speed Indicators (墌 pg. 17)
3 Timer Mode Indicator (墌 pg. 29)
4 VCR Mode Indicator (墌 pg. 26)
5 “Cassette Loaded” Mark
6 Channel Display ["F-1" for AUX mode]
Counter Display (墌 pg. 8)
Clock Display (墌 pg. 8)
1 Symbolic Mode Indicators
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SEARCH:
FRONT DISPLAY PANEL
SP P
VCR
4
5
6
1
2 3
