JVC HR-A56U - Rear Panel; On-Screen Display

38 EN

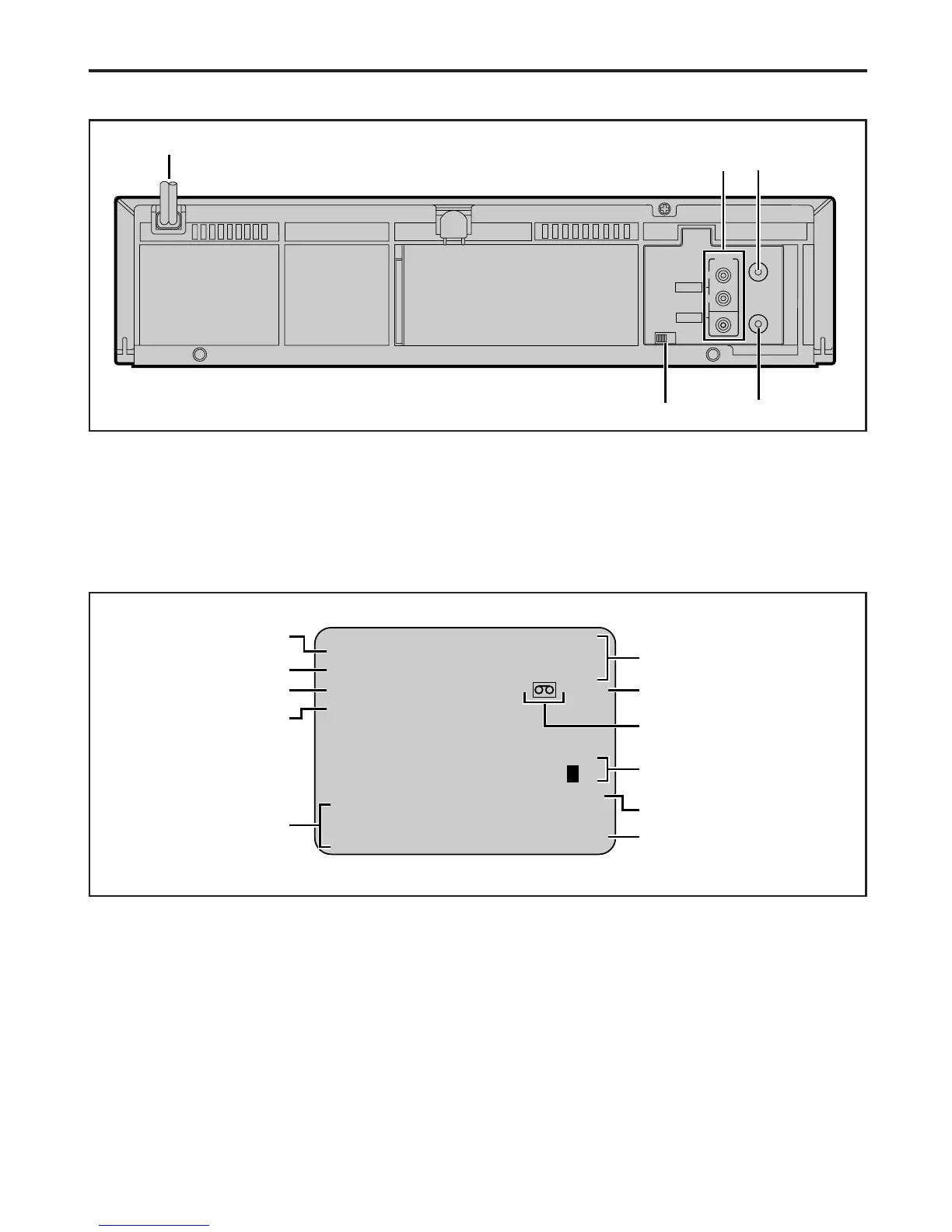

Rear panel
1 AC power cord : 墌 pg. 6
2 AUDIO/VIDEO OUT connectors : 墌 pg. 6, 32
3 ANT. (Antenna) IN terminal : 墌 pg. 6
4 CH3-CH4 switch : 墌 pg. 7
5 RF OUT terminal : 墌 pg. 6
On-screen display
ANT. IN
RF OUT
CH3 CH4
OUT
AUDIO
VIDEO
1
2
3
5
4
R
L
INDEX (cont.)
CH 125 RECORD
THU 12:00 AM PAUSE
STEREO SP
SAP
B - - - - - + - - - - - + - - - - - + - - - - - E
INDEX-1
–1:23:45
NORM
HI–FI COUNT
1
2
3
4
5
6
8
9
0
!
7
1 Channel and auxiliary input (“F-1”)
2 Day and clock time : 墌 pg. 16, 20
3 STEREO program indication : 墌 pg. 21
4 SAP (Second Audio Program) indication :
墌 pg. 21
5 Audio monitor indications : 墌 pg. 17, 31
6 VCR operation mode indication
7 Tape speed indication
8 Cassette indication
9 Tape position indicator : 墌 pg. 16
0 Index no. indication : 墌 pg. 18
! Time counter : 墌 pg. 16, 20
