DECK MECHANISM DISASSEMBLY
4-5
9. Arm assembly Cleaner (Fig. A-3-1)
1) Breakaway the (A) portion as Fig. A-3-1 from the
Embossing of the Chassis, turn the Arm assembly
Cleaner to clockwise direction and lift it up.
10. Head F/E (Fig. A-3-2)
1) Breakaway the (A) portion of the Head F/E from the
Embossing of the Chassis, turn it to counterclockwise
direction and lift it up.
11. Base assembly A/C Head (Fig. A-3-3)
1) Remove the Screw(S4) and lift the Base assembly A/C
Head up.
(A)
Arm Assembly
Cleaner
Base Assembly A/C Head
(S4)
Head F/E
(A)
Chassis

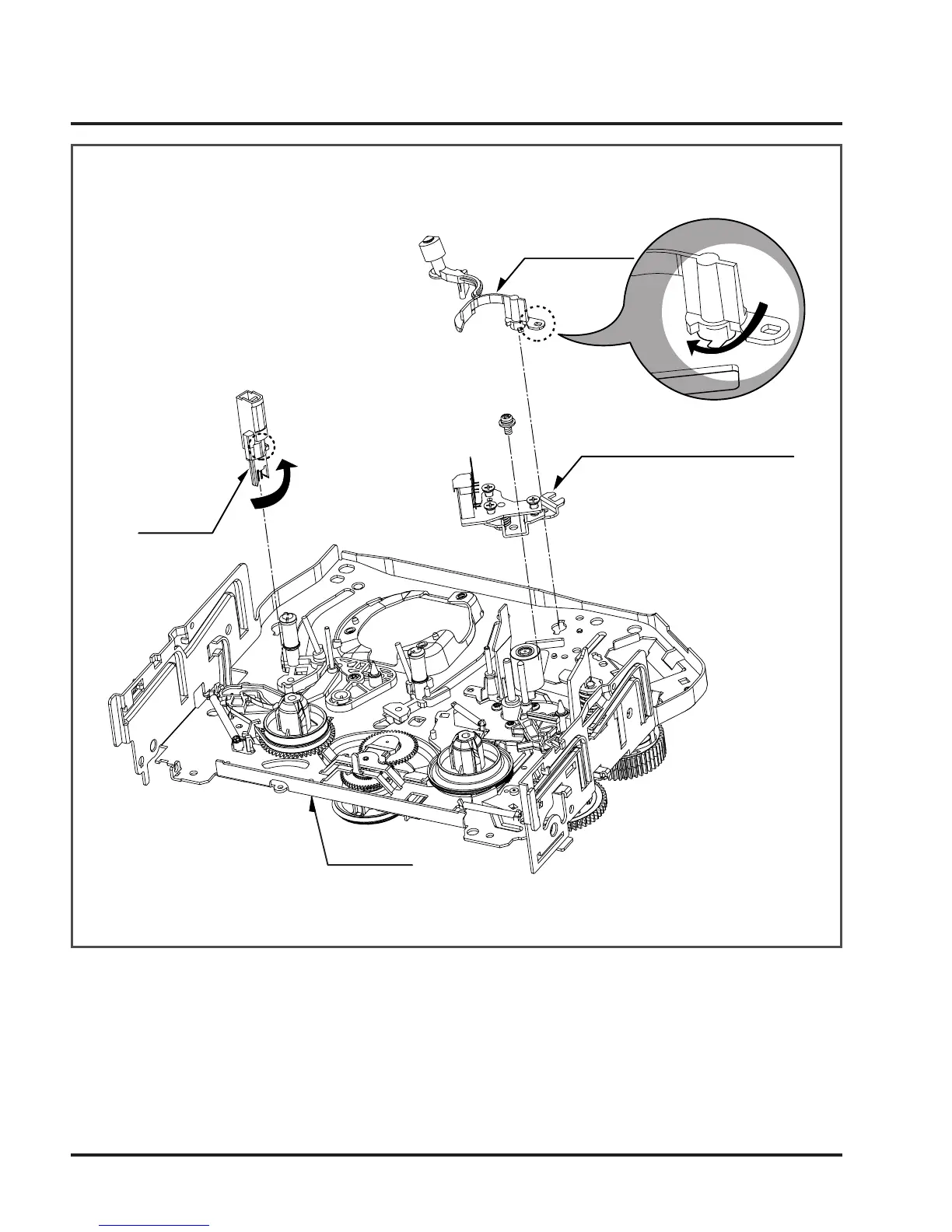

Fig. A-3
(Fig. A-3-1)
*(Fig. A-3-3)
(Fig. A-3-2)
