4-6
DECK MECHANISM DISASSEMBLY
Brake Assembly T
Spring TB
(H9)
Reel T
Brake Assembly RS
Spring RS
Arm Assembly Tension
Spring Tension
Reel S
Base Tension
(H11)
(H12)
Chassis
(H10)

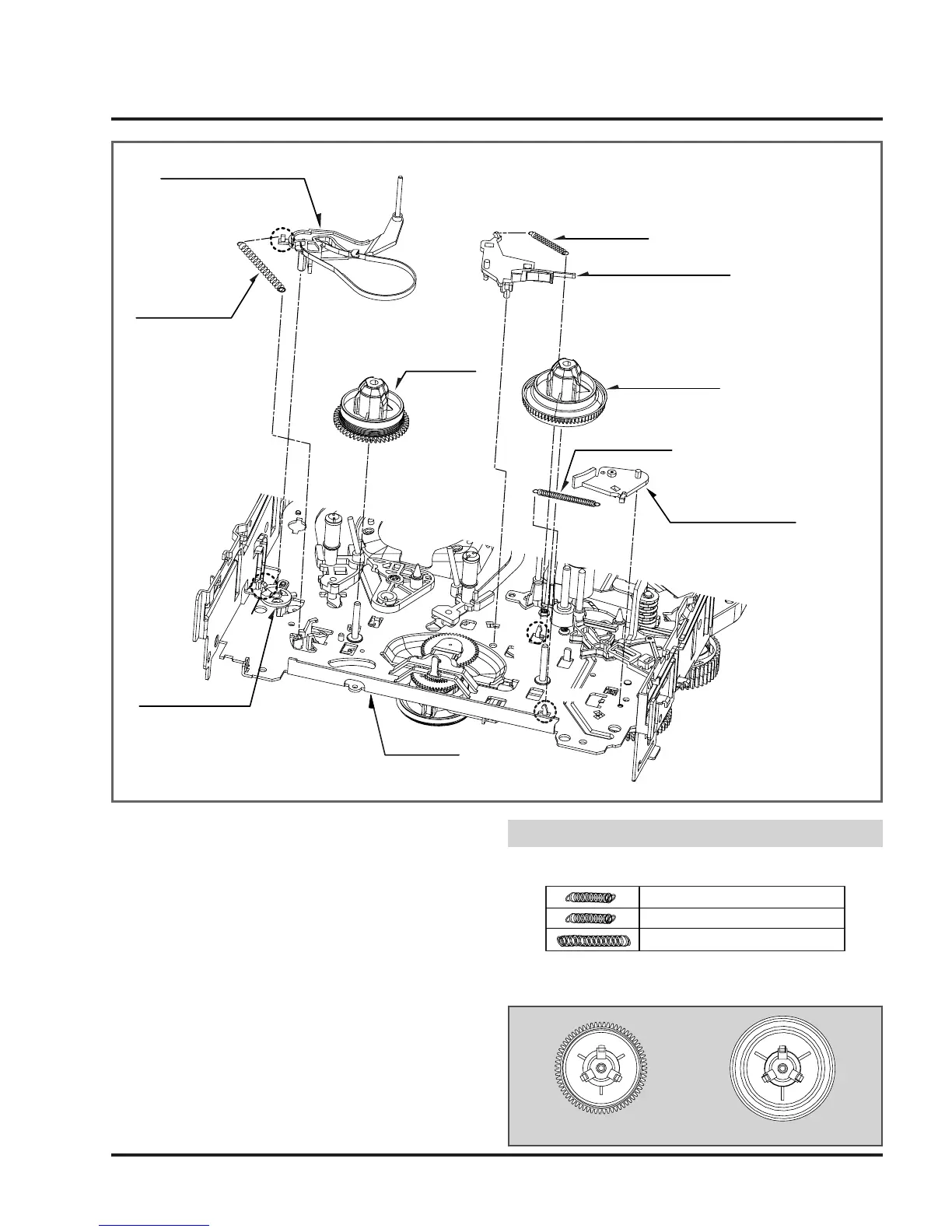

Fig. A-4
12. Brake assembly T (Fig. A-4-1)
1) Unhook the Spring TB from the Hook(H9) of the Chassis.
2) Lift the Brake assembly T up.
13. Brake assembly RS (Fig. A-4-2)
1) Unhook the Spring RS from the Hook(H10) of the
Chassis..
2) Lift the Brake assembly T up.
14. Arm assembly Tension (Fig. A-4-3)
1) Unhook the Spring Tension from the Hook(H11) of the
Arm assembly tension.
2) Unhook the Hook(H12) of the Base Tension and lift the
Arm assembly Tension up.
Difference for Springs
15. Reel S / Reel T (Fig. A-4-4)
1) Difference for Reel S / Reel T
Spring TB
Spring RS
Spring Tension
(Difference for Springs)
Color (Black)
Reel S Reel T
NOTE
(Fig. A-4-1)
(Fig. A-4-3)
(Fig. A-4-4)
(Fig. A-4-4)
(Fig. A-4-2)
