4-10
DECK MECHANISM DISASSEMBLY
Gear Assembly P3
Gear Assembly P2
Base Assembly P2
Base Assembly P3
(A)
(B)
Chassis
Gear assembly P2 Hole
Gear sector Hole(A)
Plate slider Hole(B)
Lever spring Boss
Gear assembly P3 Hole

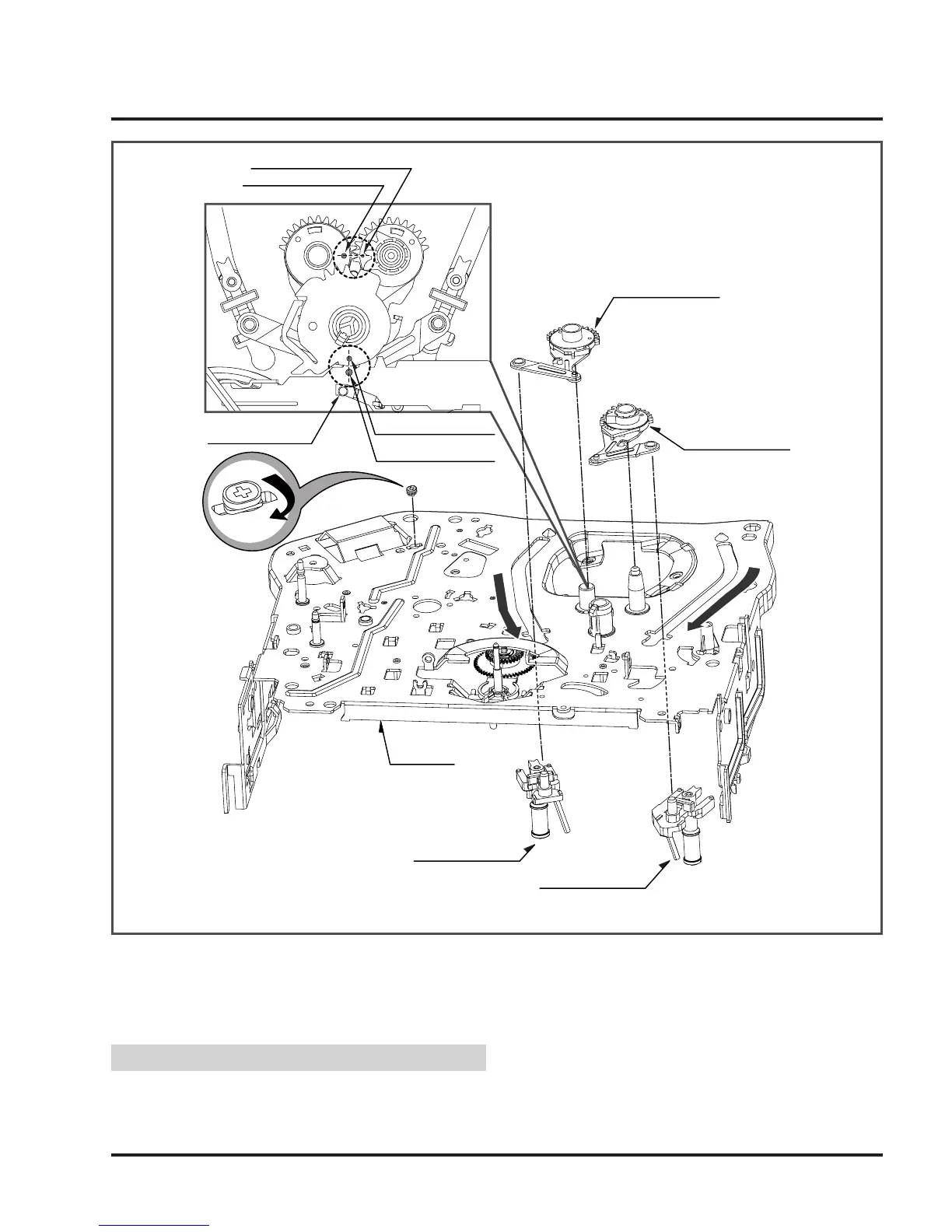

Fig. A-8
29. Gear assembly P2 (Fig. A-8-1)/
Gear assembly P3 (Fig. A-8-2)/
1) Just lift the Gear assembly P2 up.
2) Just lift the Gear assembly P3 up.
When reassembling, align the two Holes of the Gear assem-
bly P2 and P3 in a straight line after confirmation whether the
Gear Sector Hole(A) and the Plate Slider Hole(B) are aligned
or not as Fig.
30. Base assembly P2 (Fig. A-8-3)/
Base assembly P3 (Fig. A-8-4)
1) Move the Base assembly P2 in direction of arrow(A)
along the Guided Hole of the Chassis and disassemble it
on bottom side.
2) Move the Base assembly P3 in direction of arrow(B)
along the Guided Hole of the Chassis and disassemble it
on bottom side.
Place the Mechanism face down, or return to original
position.
NOTE
(Fig. A-8-1)
(Fig. A-8-2)
(Fig. A-8-3)
(Fig. A-8-4)
