DECK MECHANISM DISASSEMBLY
4-11
(A)
(B) (C)
(S7)
Arm Assembly Idler Jog
Base Loading
Base Tension
Chassis
(D)

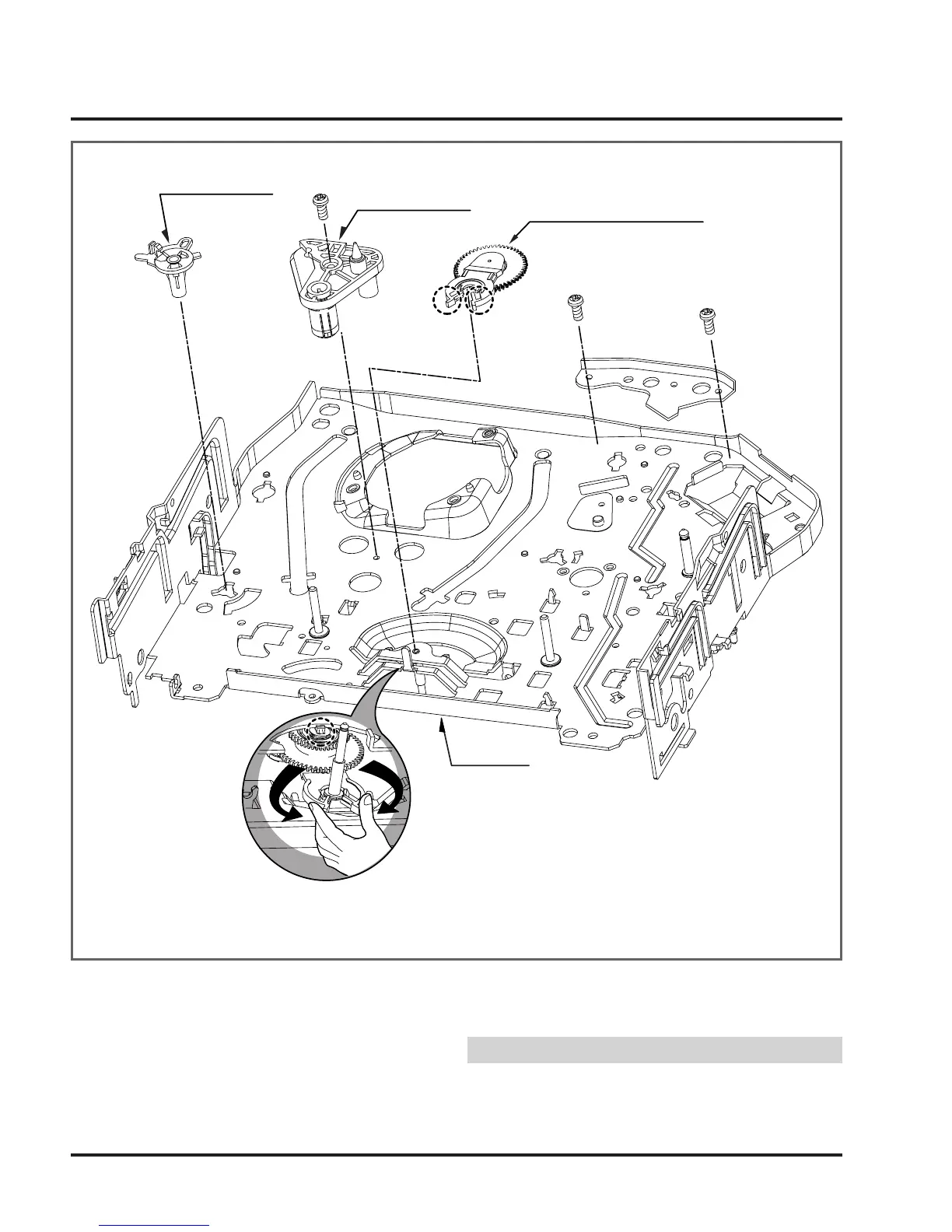

Fig. A-9
31. Base Loading (Fig. A-9-1)
1) Remove the Screw(S7).
2) Lift the Base Loading up.
32. Base Tension (Fig. A-9-2)
1) Breakaway the (A) portion of the Base Tension from the
Embossing of the Chassis.
2) Turn the Base Tension to counterclockwise direction and
lift it up.
33. Arm assembly Idler (Fig. A-9-3)
1) Make narrower the two parts, (A) and (B), as Fig. A-9-3.
2) Lift the Arm assembly Idler up.
When disassembling, be careful not to be caught the (D) part
by the Chassis as Fig.
NOTE
(Fig. A-9-1)
(Fig. A-9-2)
(Fig. A-9-3)
