INDEX

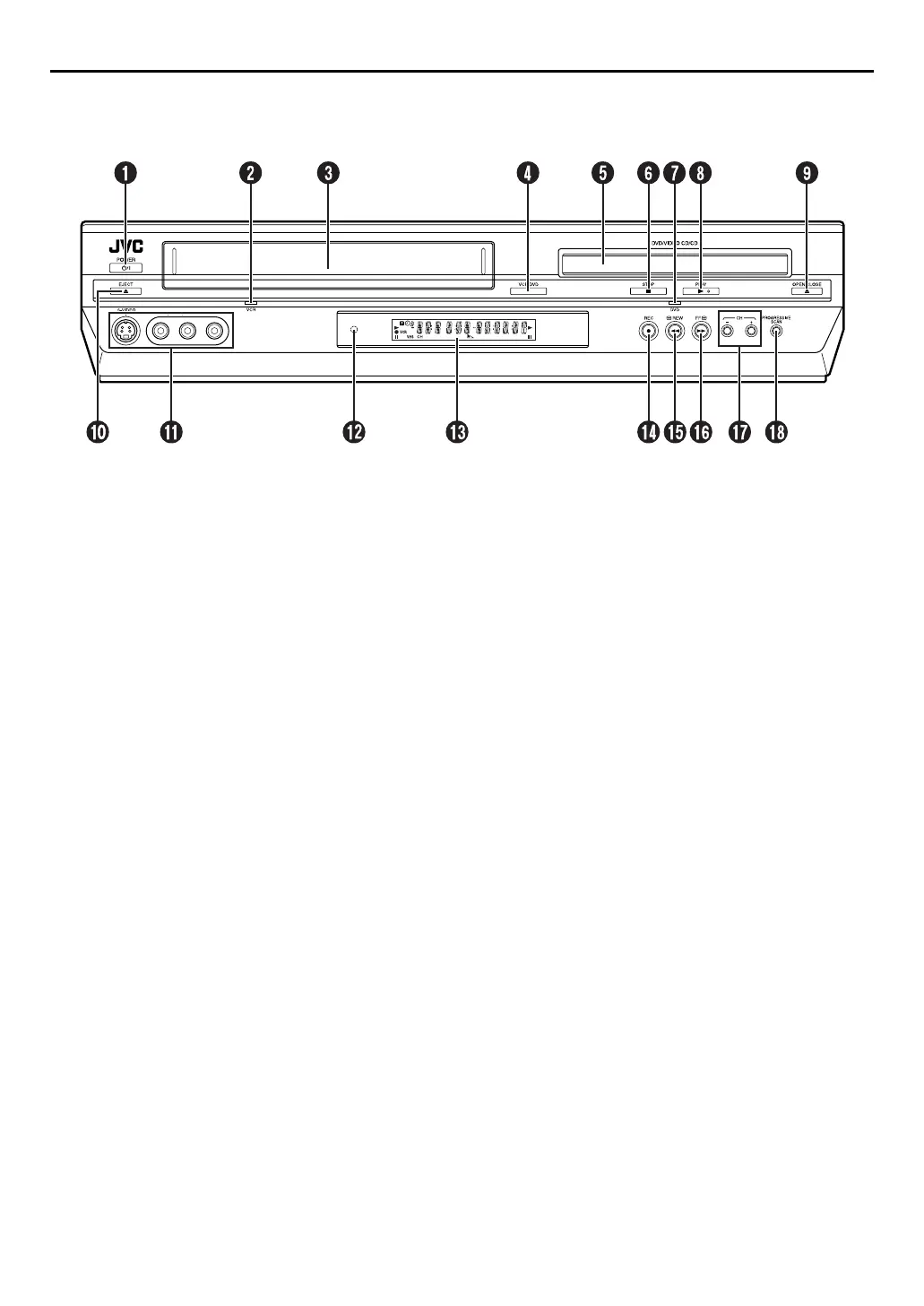

FRONT VIEW
A
Power Button (POWER (
1
))
墌
pg. 18
B
VCR Indicator
墌
pg. 28, 32
C
VHS Cassette Loading Slot
D
VCR/DVD Button
墌
pg. 28, 32, 42
E
Disc Tray
F
Stop Button (STOP (
8
))
墌
pg. 28, 32, 42
G
DVD Indicator
墌
pg. 42
H
Play Button (PLAY (
4
))
墌
pg. 28, 42
I
DVD Open/Close Button (OPEN/CLOSE (
x
))
墌
pg. 42
J
VHS Eject Button (EJECT (
x
))
墌
pg. 28, 32
K
S-Video/Video/Audio Input Connectors
(S-VIDEO/VIDEO/AUDIO)
墌
pg. 68
L
Remote Sensor
M
Front Display Panel
墌
pg. 11
N
Record Button (REC (
7
))
墌
pg. 32
O
Rewind Button (REW (
3
))
墌
pg. 28, 29, 44
P
Fast Forward Button (FF (
5
))
墌
pg. 28, 29, 44
Q
Channel Button (CH +/–)
墌
pg. 32
R
Progressive Scan Button (PROGRESSIVE SCAN)
墌
pg. 84
