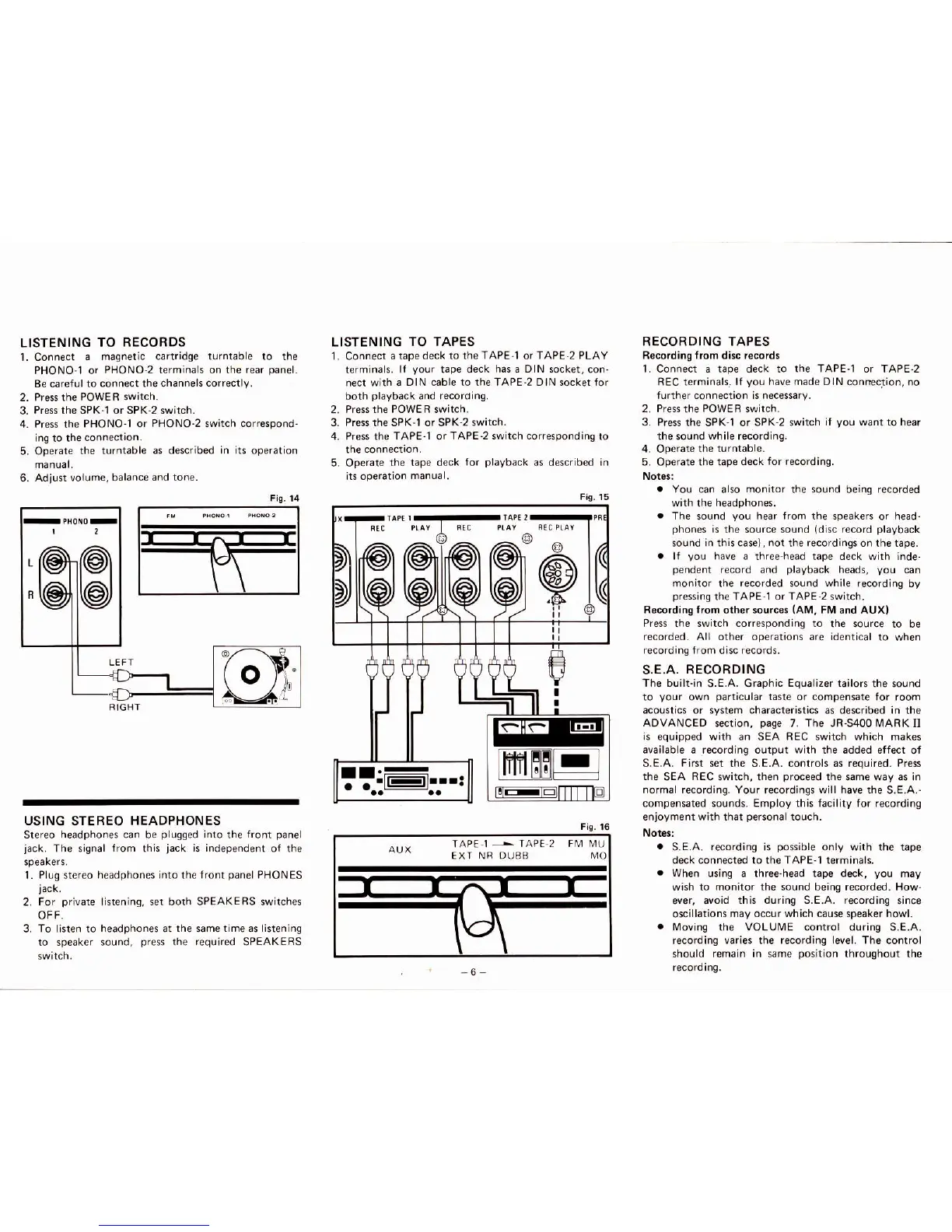

LISTENING
TO
RECORDS
1. Connect
a maqnetic caltridge turntable to the
PHONO l or
PHONO-2 terminalt on the
rear
panel.
Be careful to
connect the channels
correctlv,
2. Press the
POWEA
switch.
3.
Press theSPK-l or SPK'2 switch.
4. Press the
PHONO
I
or
PHONO-2 switch correspond
ing to the
connection.
5. Operate
the turntable
as described in its operation
6. Adjust vol!me,
balance and tone.
LISTEN ING
TO TAPES
1. Connect
a tapedeck to theTAPE
1
or
TAPE.2 PLAY
terminals.
lf
yolr
tape deck
has a DIN
socket, con.
nect with
a DIN cable to the TAPE-2 DIN socket for
both
playback
and recoroing.
2. Pres
the POWEB switch.
3. Press the SPK-l or SPK-2 switch.
4. Press the TAPE
1
or
TAPE-2 switch corespondinq
to
5. Operate
the tape deck
for
playback
as described in
its operation
manual.
RECORDING TAPES
Becording from dirc rocords
1. Connect a tape deck to the TAPE-l or TAPE2
REC
rprminols.
lr
you
hdve
ndde DIN conrection, no
further connection is necessary.
2. ftess the POWEB
switch.
3.
Press the SPK-I or SPK-2 switch
if
you
want to hear
the sound
while
recordins.
4, Operate
the turntable,
5. Operate the tape
deck for recording.
.
You
can also
monitor
the
sound
beinq recorded
with the
headphones.
.
The sound
vou
hear from the speakers
or
head.
phones
is the source sound
{dlsc
record
playback
sound in thiscase),
not
the
recordinsson
thetape.
.
lf
you
have a three
head
tape deck whh inde.
pendent
record and
playback
heads,
you
can
montor
the
recorded
sound
while
recordlng by
pressing
the
TAPE-l or TAPE-2 switch.
Becording lrom
other 3ources
(AM,
Flvl.nd
AUXI
Press the switch coresponding to
the so!rce to be
recorded. All other operations are identical
to when
recordins irom dlsc records.
S.E.A.
RECORDING
The built-in
S.E.A. Graphic
Eqoalizer
tailors the soud
to
your
ow^
parricul.r
rasre or compensaie for
room
acoustics or system characterhtics as described in
the
ADVANCEo
section,
pase
7-
The
JR5400MARKll
k equipped with an
SEA
REC switch which makes
available a recording output with the added effect
of
S.E.A. Fiut ret the S.E.A. controls as required. Press
the
SEA
BEC
switch, then
proceed
tre sdme way .s
in
normal recording. Your recordings will have the
S.E.A.-
compensated sounds- Employ thh facility tor recording
enjoyment with that
personal
touch.
.
S.E.A.
recording is
possible
only
with the tape
deck connected to theTAPE-1 terminals
USING
STEREO
HEADPHONES
Stereo
headphones
can be
plugged
.to
the
front
panel
iack.
The signal
from
thrs
jack
is independent
of the
1.
Pllg
stereo
headphones into the front
panel
PHONES
2.
For
private
listenlnq, set both SPEAKEaS switches
OF
F.
3. To llsten to headphones at
the same time as listenlng
ro speaker sound.
press
the requlred
SPEAKEAS
When
using a three head tape decl..
you
may
wish to monitor the
sound being recorded.
How-
ever, avoid
this during S.E.A. recording
rince
oscilldlions
mdy occur which cause speaker howl.
lvloving the VOLUN4E control during S.E.A.
recordins varies the r€cordins level. The control
should remain
in same
position
throughout the
