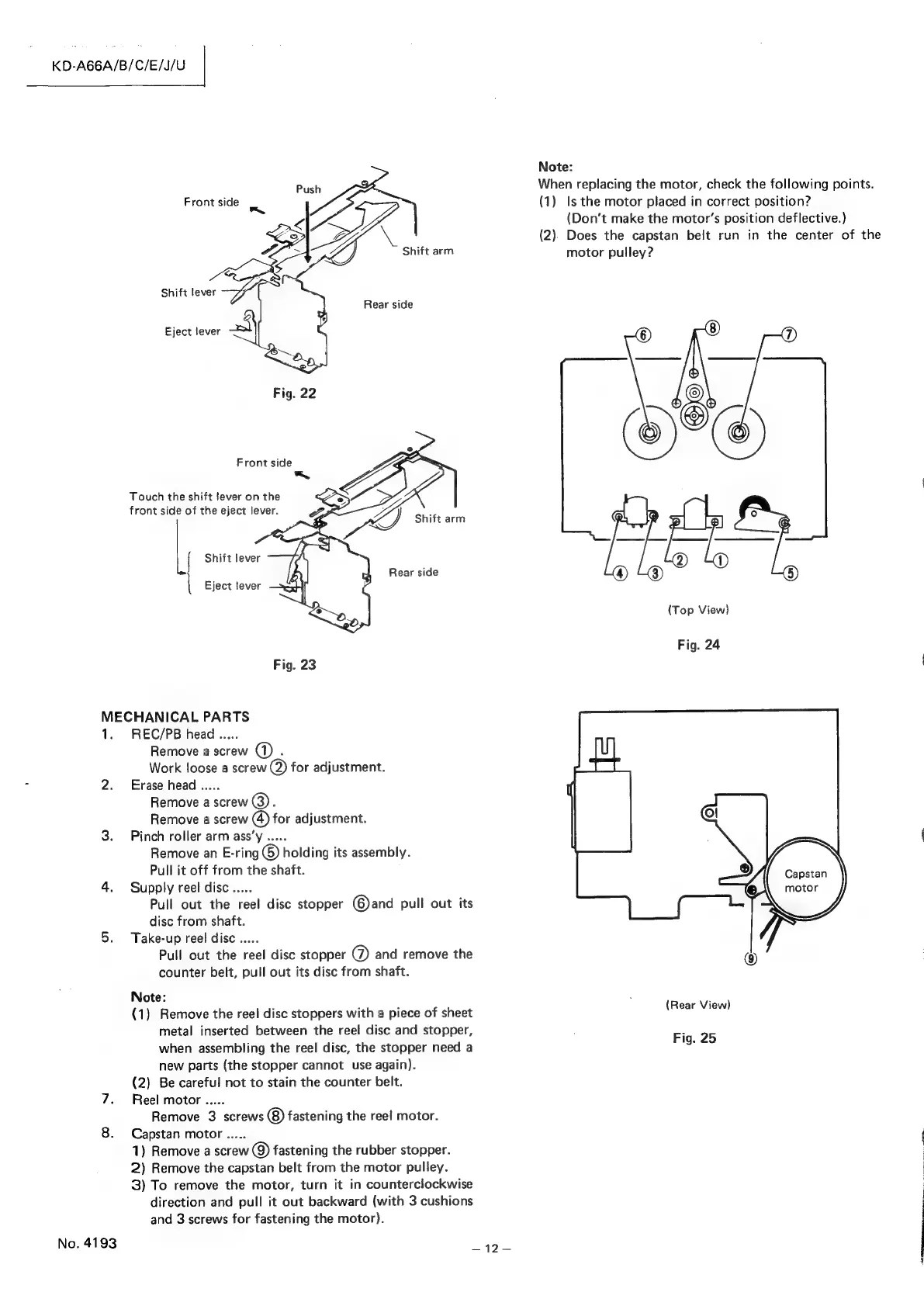

JVC KD-A66 Service Manual

KD-A66A/B/C/E/J/U
Front side
Shift arm
Shift lever
Eject fever at
Rear side
Fig. 22
Front side
Touch the shift fever on the
front side of the eject lever.
| Shift lever
| Eject lever
Fig. 23
MECHANICAL PARTS
1. REC/PB head .....
Remove a screw
Work loose a screw (2) for adjustment.
2. Erase head .....
Remove a screw ® :
Remove a screw (4) for adjustment.
3. Pinch roller arm ass’y .....
Remove an E-ring © holding its assembly.
Pull it off from the shaft.
4. Supply reel disc .....
Pull out the reel disc stopper ®and pull out its
disc from shaft.
5. Take-up reel disc .....
Pull out the reel disc stopper DM and remove the
counter belt, pull out its disc from shaft.
Note:
(1) Remove the reel disc stoppers with a piece of sheet
metal inserted between the reel disc and stopper,
when assembling the reel disc, the stopper need a
new parts (the stopper cannot use again).
(2) Be careful not to stain the counter belt.
7. Reel motor .....
Remove 3 screws (8) fastening the reel motor.
8. Capstan motor .....
1) Remove a screw © fastening the rubber stopper.
2) Remove the capstan belt from the motor pulley.
3) To remove the motor, turn it in counterclockwise
direction and pull it out backward (with 3 cushions
and 3 screws for fastening the motor).
No. 4193 ibe.
Note:
When replacing the motor, check the following points.
(1) Is the motor placed in correct position?
(Don’t make the motor’s position deflective.)
(2). Does the capstan belt run in the center of the
motor pulley?
(Top View)
Fig. 24
Capstan
motor
(Rear View)
Fig. 25
=
