JVC KD-A66 Service Manual

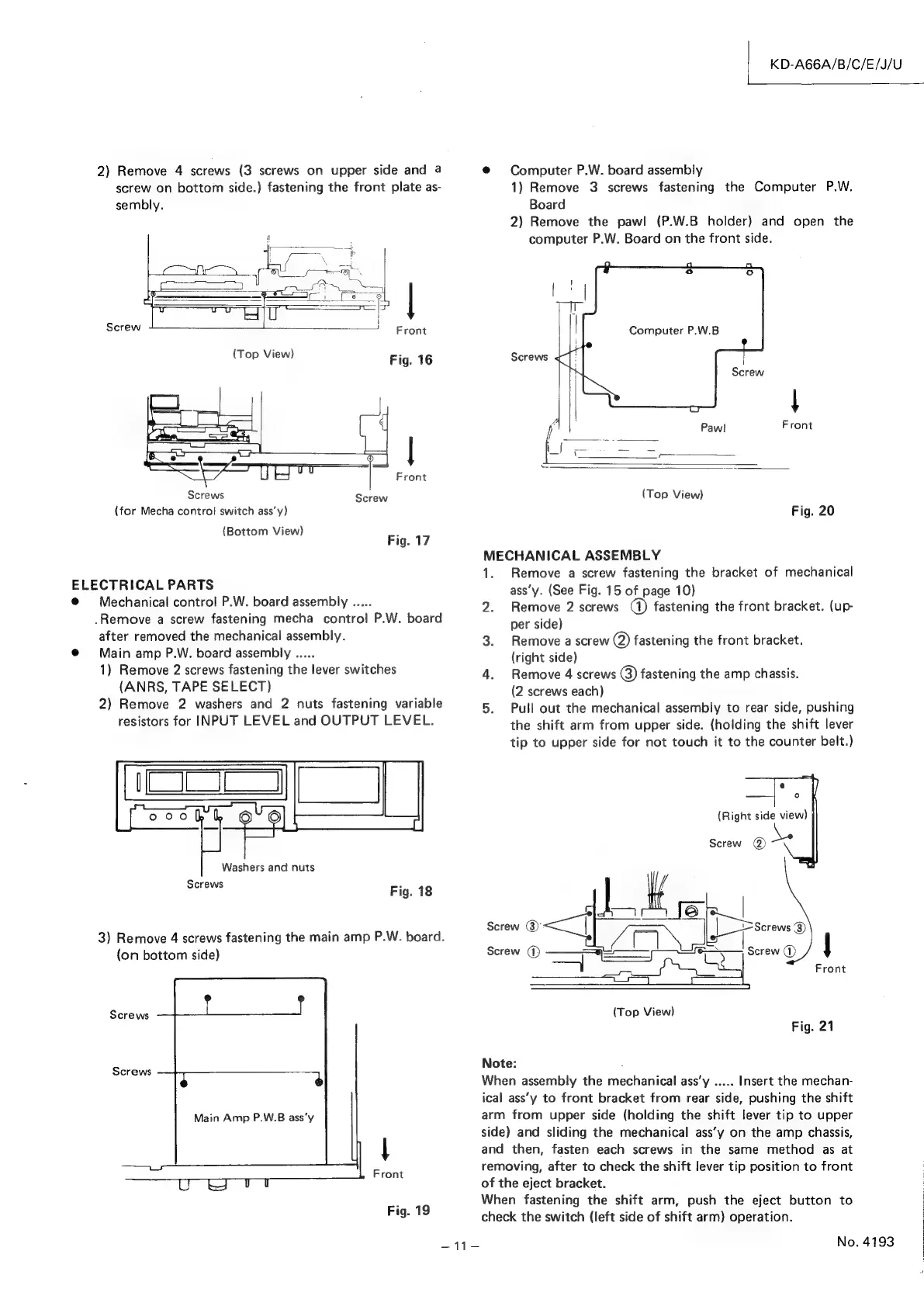

2) Remove 4 screws (3 screws on upper side and a
screw on bottom side.) fastening the front plate as-
sembly.
Screw
Screws
(for Mecha control switch ass’y)
(Bottom View)
ELECTRICAL PARTS
@ Mechanical control P.W. board assembly .....
.Remove a screw fastening mecha control P.W. board
after removed the mechanical assembly.
@® Main amp P.W. board assembly .....
1) Remove 2 screws fastening the lever switches
(ANRS, TAPE SELECT)
2) Remove 2 washers and 2 nuts fastening variable
resistors for INPUT LEVEL and OUTPUT LEVEL.
Washers and nuts
Screws
Fig. 18
3) Remove 4 screws fastening the main amp P.W. board.
(on bottom side)
Screws
Screws
Main Amp P.W.B assy
Front
Fig. 19
| ko-assala/cetsy
@ Computer P.W. board assembly
1) Remove 3 screws fastening the Computer P.W.
Board
2) Remove the pawl (P.W.B holder) and open the
computer P.W. Board on the front side.
Computer P.W.B
Screws q
(Top View)
Fig. 20
MECHANICAL ASSEMBLY
1. Remove a screw fastening the bracket of mechanical
assy. (See Fig. 15 of page 10)
2. Remove 2 screws a) fastening the front bracket. (up-
per side)
3. Remove a screw (2) fastening the front bracket.
(right side)
4. Remove 4 screws 8) fastening the amp chassis.
(2 screws each)
5. Pull out the mechanical assembly to rear side, pushing
the shift arm from upper side. (holding the shift lever
tip to upper side for not touch it to the counter belt.)
(Right side view)
Screw (@)
1K rot |
Screw @) > a7 Screws 3
Screw (@) SE HS Screw @ |
fa
Front
(Top View)
Fig. 21
Note: :
When assembly the mechanical ass’y ..... Insert the mechan-
ical ass’y to front bracket from rear side, pushing the shift
arm from upper side (holding the shift lever tip to upper
side) and sliding the mechanical ass’y on the amp chassis,
and then, fasten each screws in the same method as at
removing, after to check the shift lever tip position to front
of the eject bracket.
When fastening the shift arm, push the eject button to
check the switch (left side of shift arm) operation.
No. 4193

JVC KD-A66 Specifications

General

Brand	JVC
Model	KD-A66
Category	Cassette Player
Language	English
