(No.MA232)1-11

3.1.10 Removing the switch board

(See Figs.10 to 12)

• Remove the front panel assembly.

(1) Remove the five screws N attaching the front panel assem-

bly. (See Fig.10)

(2) Release the ten joints h and take out the rear cover. (See

Fig.11)

(3) Lift the switch board from the front panel assembly little by

little and take out the switch board. (See Fig.12)

Reference:

The volume knob is removed from the front side simultaneous-

ly.

Note:

When removing the rear cover assembly and switch board, be

careful not to lose the compression spring and comp. spring.

(See Fig.12)

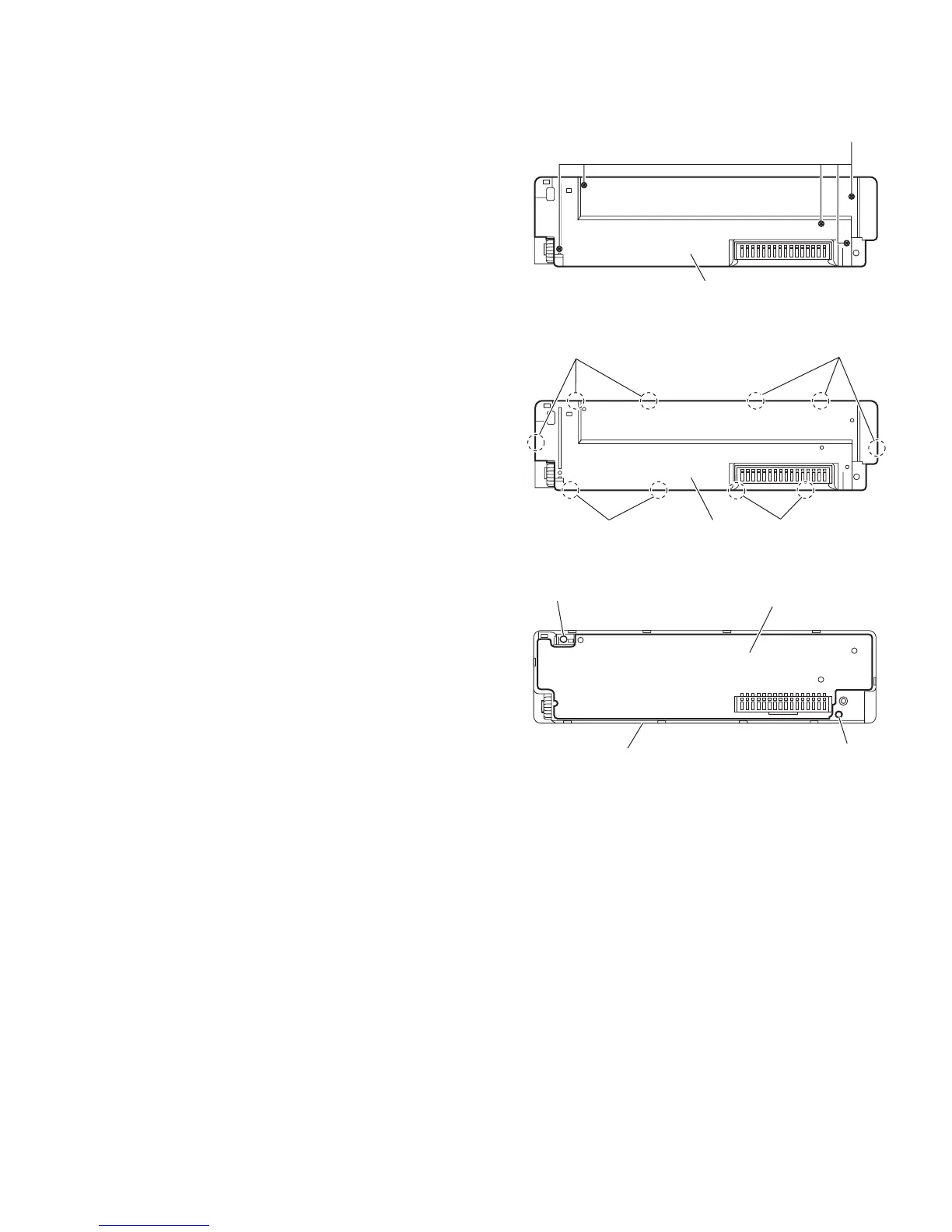

Fig.10

Fig.11

Fig.12

Rear cover

Switch board

Compression spring

Comp. spring

Front panel assembly
