1-10 (No.MA232)
3.1.8 Removing the CD mechanism control board
(See Fig.8)
[For KD-AR470, KD-G420, KD-G524 and KD-G525]
• Remove the front panel assembly, bottom cover, front chassis
assembly, side panel and main board.
(1) Disconnect the card wire from the connector CN601
on the
CD mechanism control board.
(2) Remove the five screws K attaching the CD mechanism
control board.
(3) Remove the joint f an upward direction and remove the
joint g in the direction of the arrow.

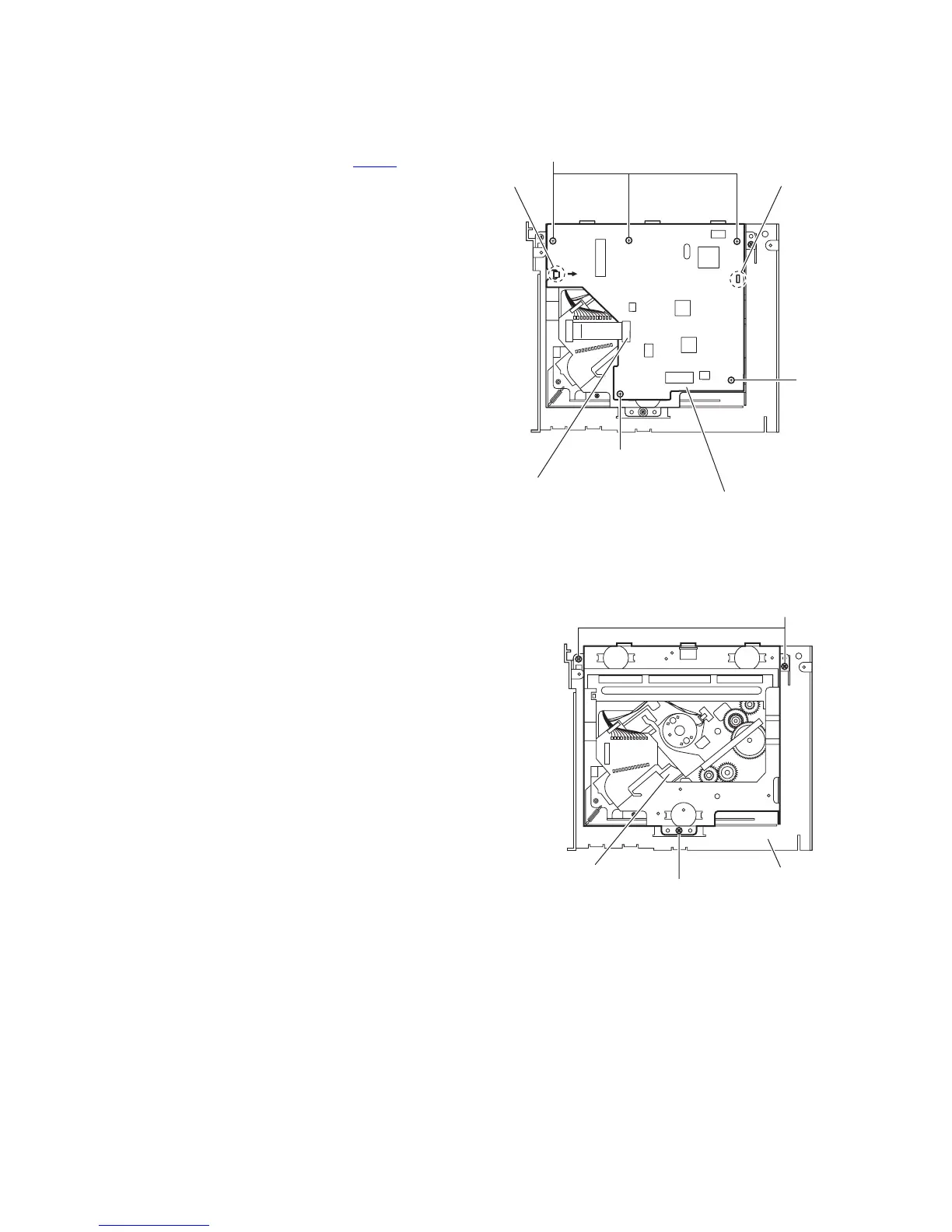

Fig.8
3.1.9 Removing the CD mechanism assembly
(See Fig.9)
• Remove the front panel assembly, bottom cover, front chassis
assembly, side panel, main board and CD mechanism control
board.
(1) Remove the three screws M attaching the top chassis.
(2) Take out the CD mechanism assembly.
Fig.9
CD mechanism control board
CN601
K
K
K
f
g
M
M
CD mechanism assembly
Top chassis
To Next Page
