1-8 (No.MA232)
3.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Remove the front panel assembly and bottom cover.
(1) Remove the two screws A on the front side of the main
body. (See Fig.3)
(2) Remove the two screws B on the both sides of the main
body. (See Fig.4)
(3) Release the joints d and joints e on the both sides of the
main body, then remove the front chassis assembly toward
the front. (See Fig.4)

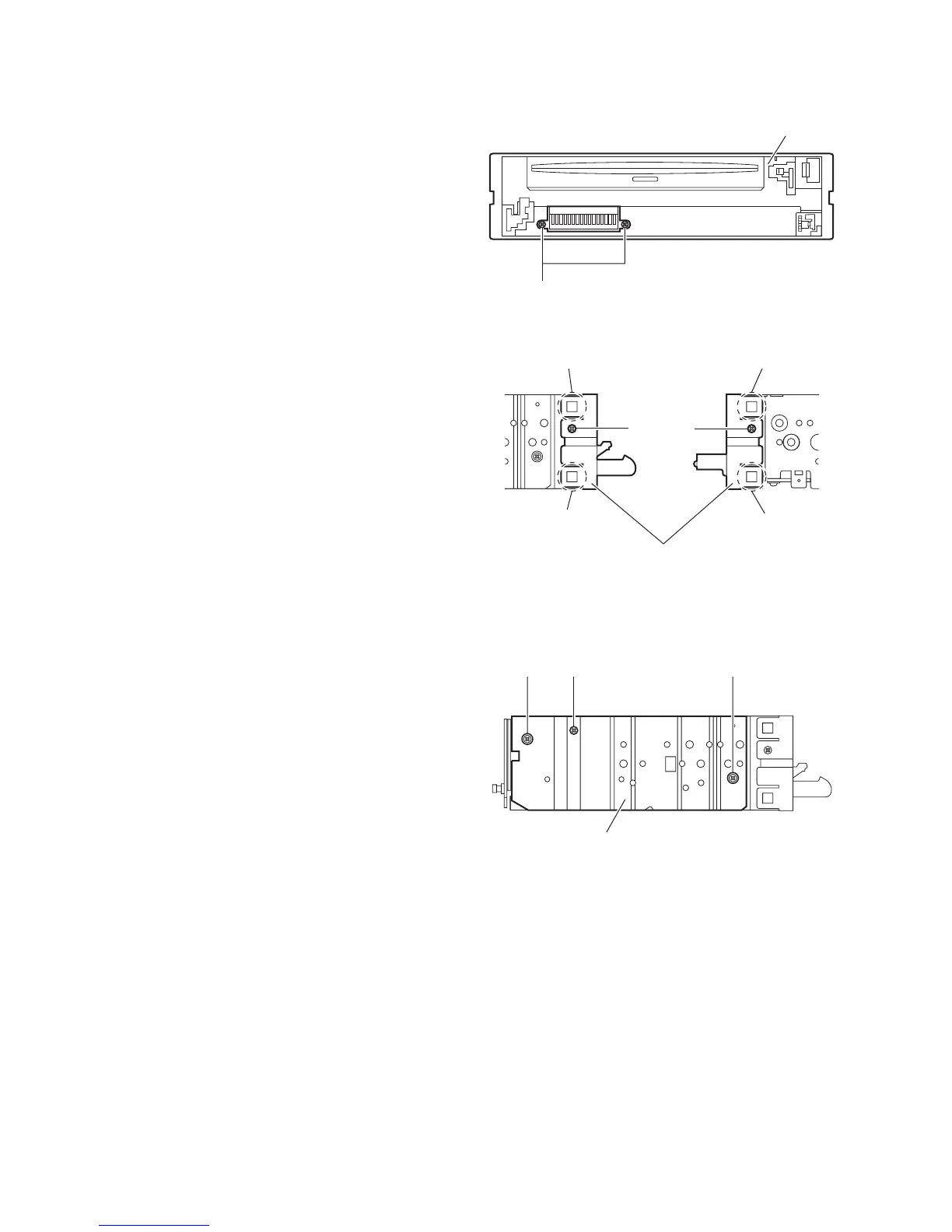

Fig.3
Fig.4
3.1.4 Removing the side panel
(See Fig.5)
Reference:
Remove the front panel assembly as required.
(1) Remove the two screws C and screw D attaching the side
panel on the left side of the main body.
(2) Take out the side panel from the main body.
Fig.5
A
Front chassis assembly
d
d
Front chassis assembly
B
e
e
B
Side panel
CCD
To Next Page
