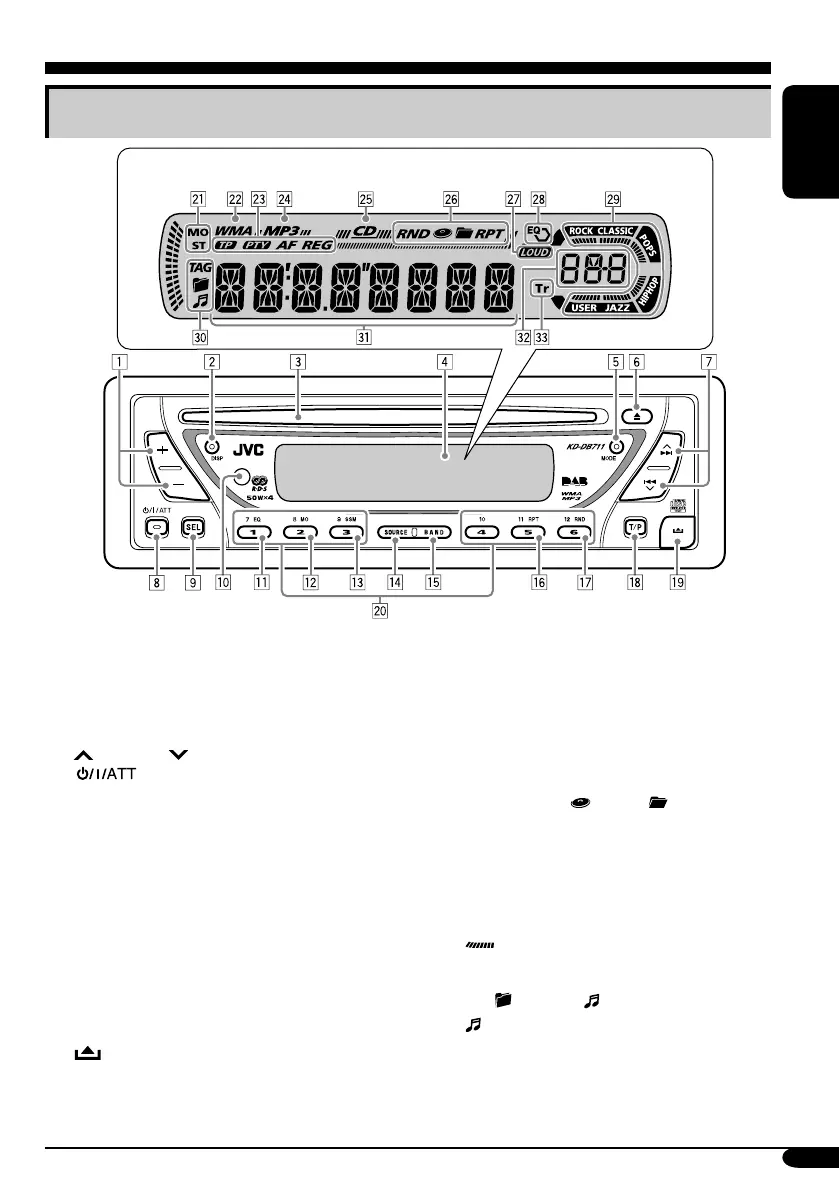

Control panel — KD-DB711
Parts identification
1 +/– buttons
2 DISP (display) button
3 Loading slot
4 Display window
5 MODE button
6 0 (eject) button
7
¢/4 buttons
8 (standby/on/attenuator) button
9 SEL (select) button
p Remote sensor
• See page 26.
q EQ (equalizer) button
w MO (monaural) button
e SSM (Strong-station Sequential Memory)
button
r SOURCE button
t BAND button
y RPT (repeat) button
u RND (random) button
i T/P (traffic programme/programme type)
button
o (control panel release) button
; Number buttons
Display window
a Tuner reception indicators—MO (monaural),
ST (stereo)
s WMA indicator
d RDS indicators—TP, PTY, AF, REG
f MP3 indicator
g CD indicator
h Playback mode / item indicators—
RND (random),
(disc), (folder),
RPT (repeat)
j LOUD (loudness) indicator
k EQ (equalizer) indicator
l Sound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS,
HIP HOP, JAZZ, USER
• also works as the time countdown
indicator.
/ Disc information indicators—TAG (ID3
Tag), (folder), (track/file)
• also lights up when DLS is shown for a
DAB service.
z Main display
x Source display / Volume level indicator
c Tr (track) indicator
Display window
