(No.MA236)1-13

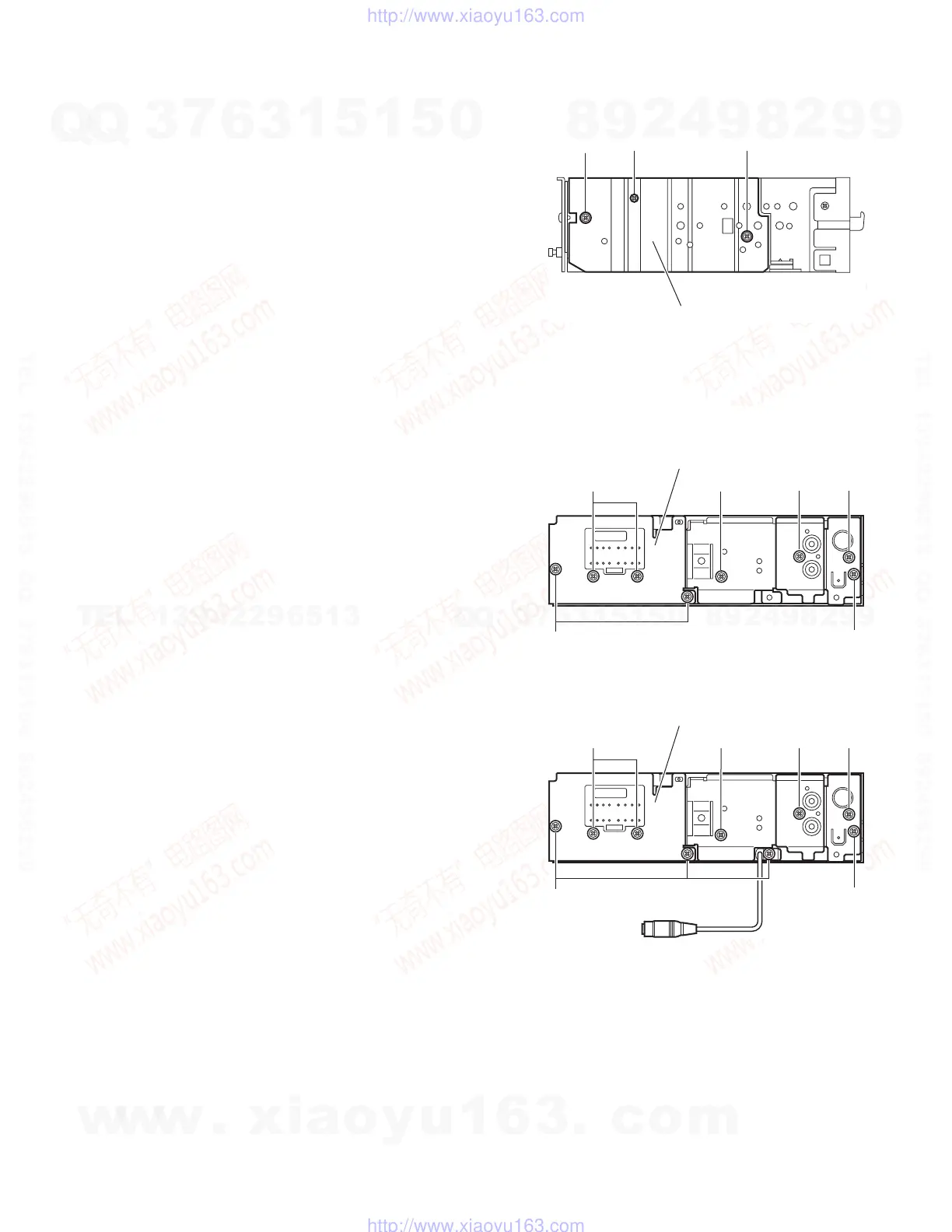

3.1.4 Removing the side panel
(See Fig.4)
Reference:
Remove the front panel assembly as required.
(1) Remove the screw B and two screws C attaching the side
panel on the left side of the main body.
(2) Remove the side panel from the main body.
Fig.4
3.1.5 Removing the rear bracket
(See Fig.5)
• Remove the bottom cover.
(1) Remove the three screws D, three screws E and two
screws F attaching the rear bracket on the back side of the
main body. (For KD-AR270, KD-G220, KD-G227, KD-
G323, KD-G324, KD-G325, KD-G326, KD-G327)
(2) Remove the four screws D, three screws E and two screws
F attaching the rear bracket on the back side of the main
body. (For KD-G321, KD-G322)
(3) Remove the rear bracket.
Fig.5
Side panel
C
B
C
(For KD-AR270,KD-G220,KD-G227,KD-G323,
KD-G324,KD-G325,KD-G326,KD-G327 )
(For KD-G321,KD-G322)
DD
EFE
Rear bracket
F
EF
DD
E
Rear bracket
F
