JVC KD-R481 User Manual

ENGLISH
21
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Car fuse block
Ignition switch
Recommended connection
Light blue/yellow
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your
vehicle factory wiring harness
does not have “12V ignition
switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Vehicle
dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Purple: Rear speaker (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white:
Remote (200mA max.)

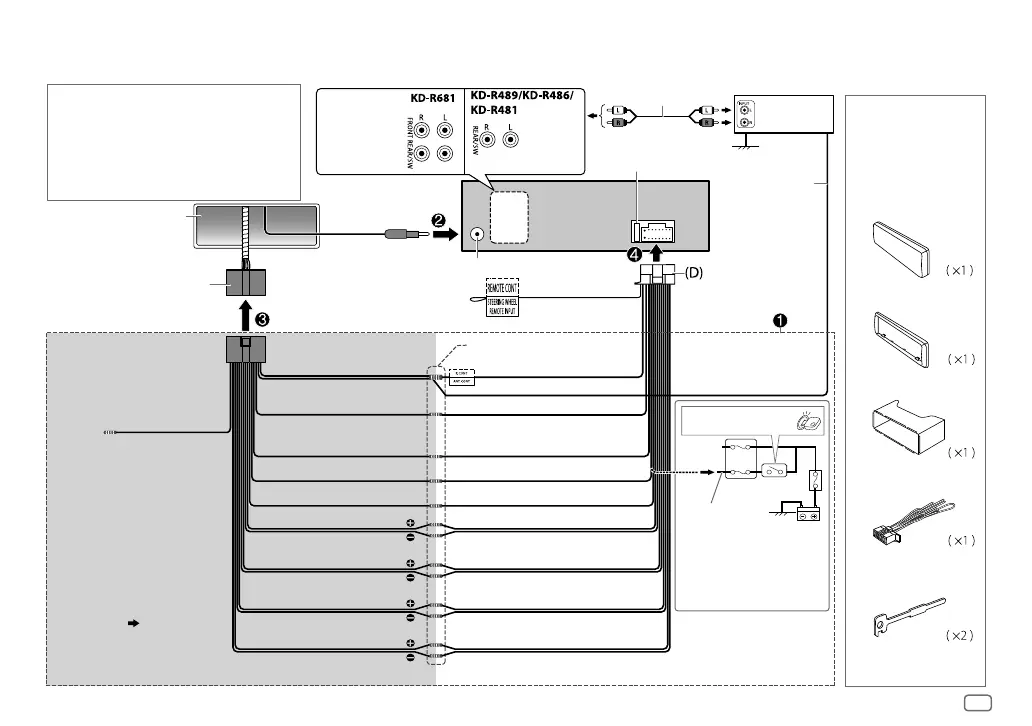

Wiring connection
Green: Rear speaker (left)
*
2
Green/black
*
2
Brown (not used)
*
1
Firmly connect the ground wire
of the amplifier to the car’s
chassis to avoid damaging the
unit.
*
2
You can also connect a
subwoofer speaker directly
using this lead without an
external subwoofer amplifier.
For setting,
 13 .
IMPORTANT
We recommend installing the unit with a
commercially available custom wiring harness
specific for your car and leave this job to
professionals for your safety. Consult your car
audio dealer.
Custom wiring harness
(separately purchased)
Part list for
installation
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
(A) Faceplate
Output
terminals
JS_JVC_KD_R681_M_EN_4.indd 21JS_JVC_KD_R681_M_EN_4.indd 21 8/1/2016 10:22:52 AM8/1/2016 10:22:52 AM

JVC KD-R481 Specifications

General

MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	FLAC, MP3, WAV, WMA
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM, LW, MW
Preset stations quantity	24
DIN size	1 DIN
Product color	Black
Disc types supported	CD-R, CD-ROM, CD-RW
Equalizer bands quantity	13
Mobile operating systems supported	Android, iOS
Display type	LCD
Illumination color	White
Display number of lines	2 lines
Bluetooth	-
USB version	2.0
USB port position	Front
Line outputs (RCA)	1
File format system	FAT 12/16/32
Package weight	1600 g
Storage temperature (T-T)	-30 - 85 °C
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	159 mm
Width	182 mm
Height	53 mm
Weight	1500 g
Dimensions (WxDxH)	182 x 53 x 159 mm
