ENGLISH

Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

(A)

Faceplate

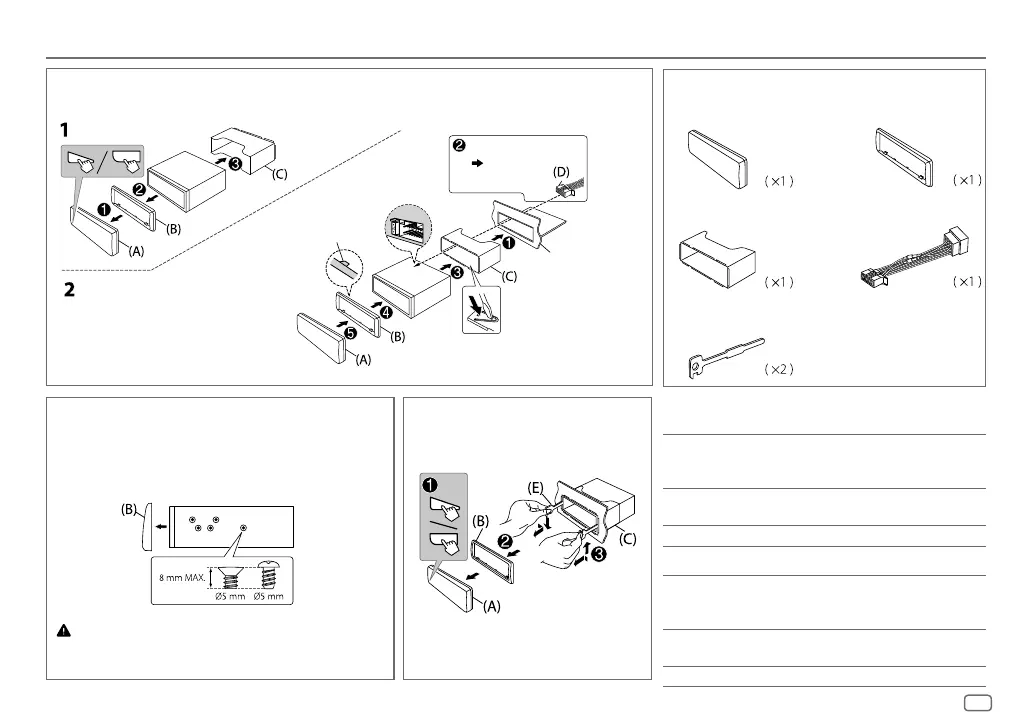

INSTALLATION/CONNECTION

How to remove the unitWhen installing without the mounting sleeve

Remove the mounting sleeve and trim plate from the unit.

Align the holes in the unit (on both sides) with the

vehicle mounting bracket and secure the unit with screws

(commercially available).

Use only the specified screws. Using wrong screws might damage

the unit.

Installing the unit (in-dash mounting)

Do the required wiring.

( 32)

Bend the appropriate tabs to

hold the sleeve firmly in place.

Hook on the top side

Orientate the trim plate

as illustrated before

fitting.

Dashboard of

your car

Part list for installation

(C)

Mounting sleeve

(B)

Trim plate

(D)

Wiring harness

(E)

Extraction key

Output terminals

For 2-way crossover setting

3 pairs REAR

FRONT

Rear output

Front output

Subwoofer output

2 pairs FRONT

REAR/SW

Front output

Rear/subwoofer output

1 pair REAR/SW

Rear/subwoofer output

For 3-way crossover setting

3 pairs REAR

FRONT

Tweeter output

Mid Range output

Woofer output

2 pairs FRONT

REAR/SW

Mid Range output

Woofer output

1 pair REAR/SW

Woofer output

JS_JVC_KD_R981_E_EN_5.indd 31JS_JVC_KD_R981_E_EN_5.indd 31 9/1/2016 2:07:38 PM9/1/2016 2:07:38 PM

Questions and Answers:

Need help?

Do you have a question about the JVC KD-R881BT and is the answer not in the manual?

JVC KD-R881BT Specifications

General

Audio system	MOS-FET
MP3 playback	Yes
Audio formats supported	FLAC, MP3, WAV, WMA
DIN size	1 DIN
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Display type	LCD
Display number of lines	2 lines
Key illumination color	Multi
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, PBAP
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	24
