ENGLISH
32
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
When connecting to an external
amplifier, connect its ground wire to the
car’s chassis to avoid damaging the unit.

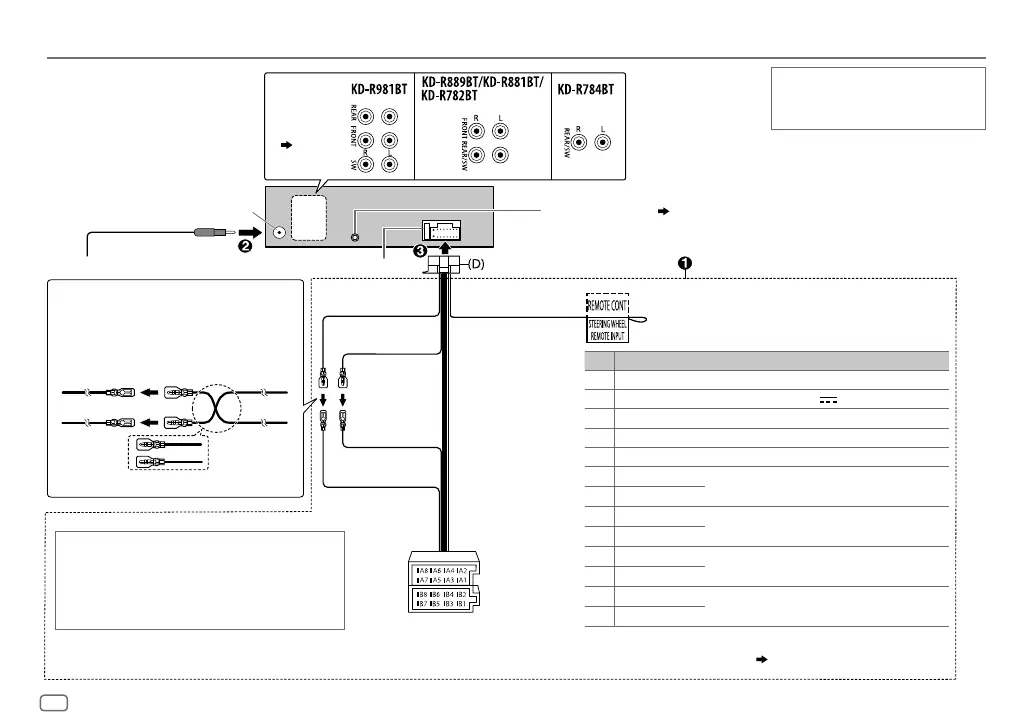

Wiring connection
Fuse (10A)
Antenna terminal
Light blue/yellow
(Steering remote
control wire)
To the steering wheel remote control adapter
Yellow (A4)
Red (A7)
Yellow (Battery wire)
Pin Color and function
A4 Yellow : Battery
A5 Blue/White : Power control (12V
350mA)
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
Unit
Connecting the ISO connectors on some
VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Vehicle
A7 (Red)
Ignition wire
(Red)
A4 (Yellow)
Default wiring
Battery wire
(Yellow)
*
You can also connect a subwoofer speaker directly without an external
subwoofer amplifier. For setting,
21
.
ISO connectors
If your car does not have an ISO terminal
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult
your car audio dealer.
INSTALLATION/CONNECTION
Red (Ignition wire)
Microphone input jack
( 11)
Output
terminals
( 31)
