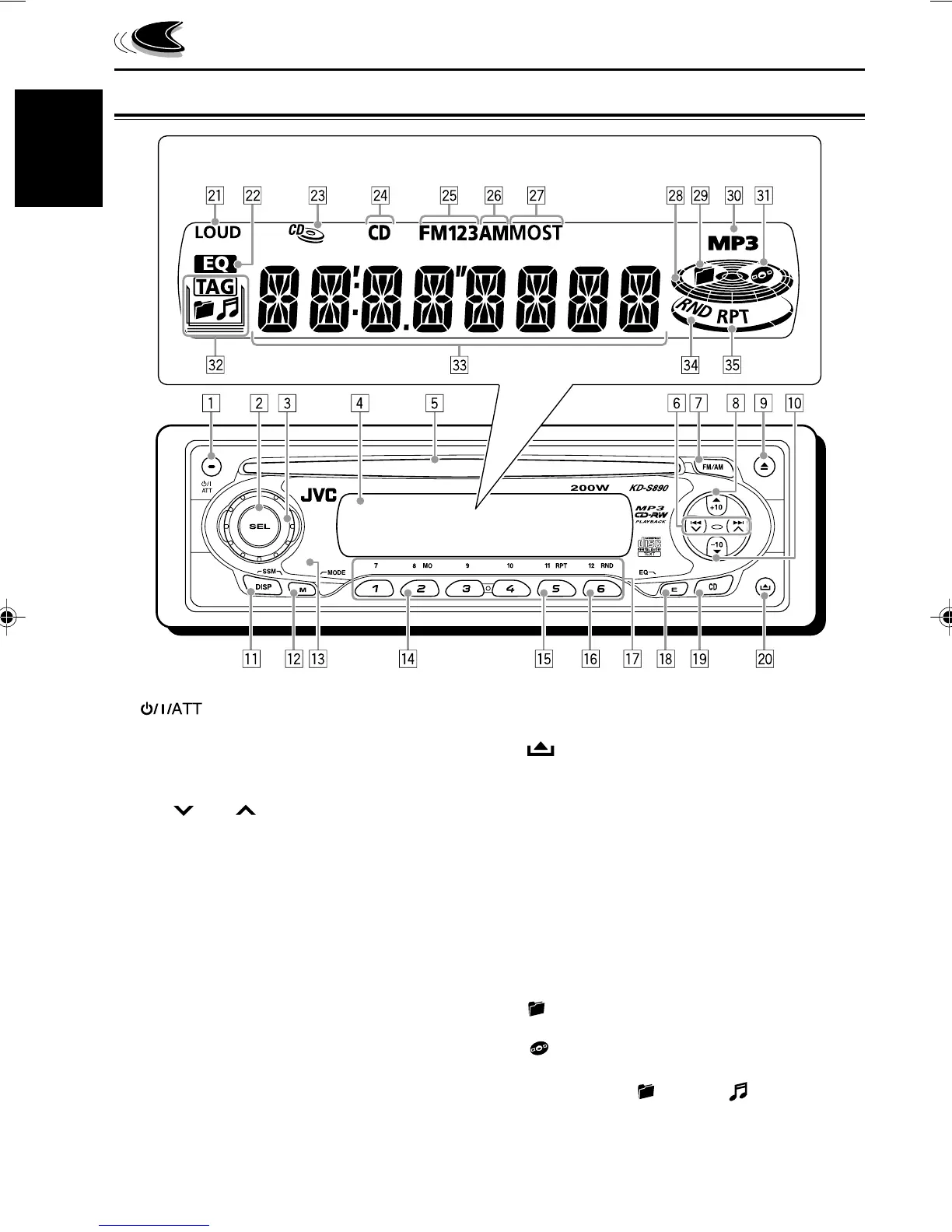

LOCATION OF THE BUTTONS
i E (EQ: equalizer) button
o CD button
; (control panel release) button
Display window
a LOUD (loudness) indicator
s EQ (equalizer) indicator
d CD–in indicator
f CD indicator
g FM band indicators (FM1, FM2, FM3)
h AM band indicator
j Tuner reception indicators
MO (monaural), ST (stereo)
k Volume (or audio) level indicator
l (folder) indicator
/ MP3 indicator
z (disc) indicator
x Disc information indicators
TAG (ID3 tag), (folder), (track/file)
c Main display
v RND (random) indicator
b RPT (repeat) indicator
Control panel
1 (standby/on/attenuator) button
2 SEL (select) button
3 Control dial
4 Display window
5 Loading slot
6 4 /¢ buttons
7 FM/AM button
8 5 (up) button
+10 button
9 0 (eject) button
p ∞ (down) button
–10 button
q DISP (display) button
• Also functions as SSM buttons when pressed
together with M (MODE) button.
w M (MODE) button
• Also functions as SSM buttons when pressed
together with DISP (display) button.
e Remote sensor
r MO (monaural) button
t RPT (repeat) button
y RND (random) button
u Number buttons
