1-4
KD-SX8250/KD-SX780

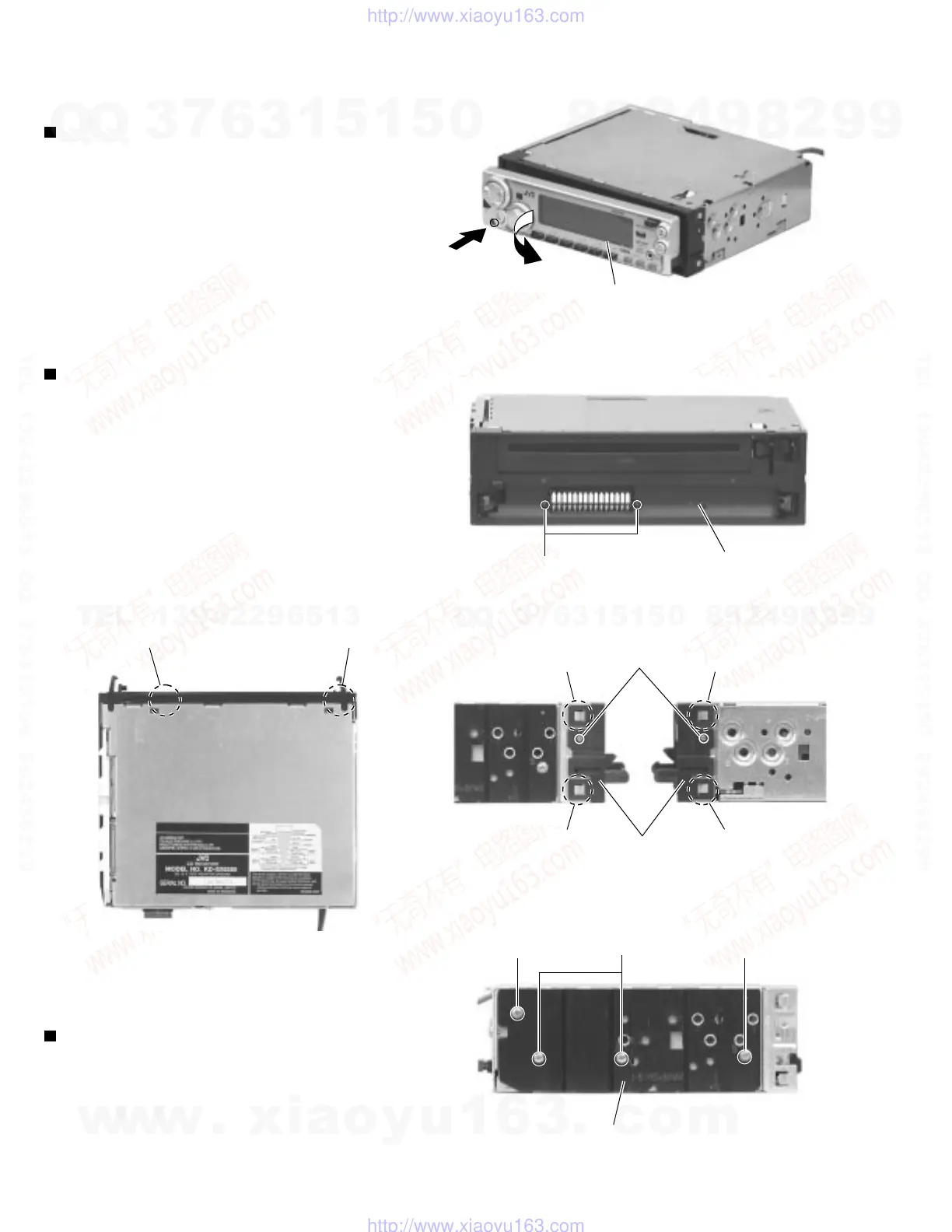

Press the release switch and remove the front panel
unit in the direction of the arrow.
1.
Disassembly method
Removing the front panel unit
(See Fig.1)
Remove the two screws A attaching the front
chassis.
Remove the two screws B on each side of the body.
Release the two joints a and the two joints b on the
sides. Release the two joints c at the bottom and
remove the front chassis toward the front.
1.
2.
3.
Removing the front chassis
(See Fig.2 to 4)
Remove the four screws B attaching the heat sink
on the left side of the body, and remove the heat
sink.
1.
Removing the heat sink (See Fig.5)
Joint c
Heat sink
Fig.2
Fig.1
Fig. 3
Fig.4
Fig. 5
Front panel unit
Front chassis
A
B
Front chassis
Joint a
Joint a
Joint b
Joint b
B
B
B
Joint c
