KD-SX8250/KD-SX780
Extend the two tabs c of the feed sw. holder and pull
out the switch.
Unsolder the DET switch wire if necessary.
1.
2.
Removing the DET switch
(See Fig.3 and 6)
Prior to performing the following procedure, remove
the top cover and the connector board.
Remove the two suspension springs (L) and (R)
attaching the chassis unit to the frame.
1.
Removing the chassis unit
(See Fig.7 and 8)
The shape of the suspension spring (L)
and (R) are different. Handle them with
care.
CAUTION:
When reassembling, make sure that the
three shafts on the underside of the
chassis unit are inserted to the dampers
certainly.
CAUTION:

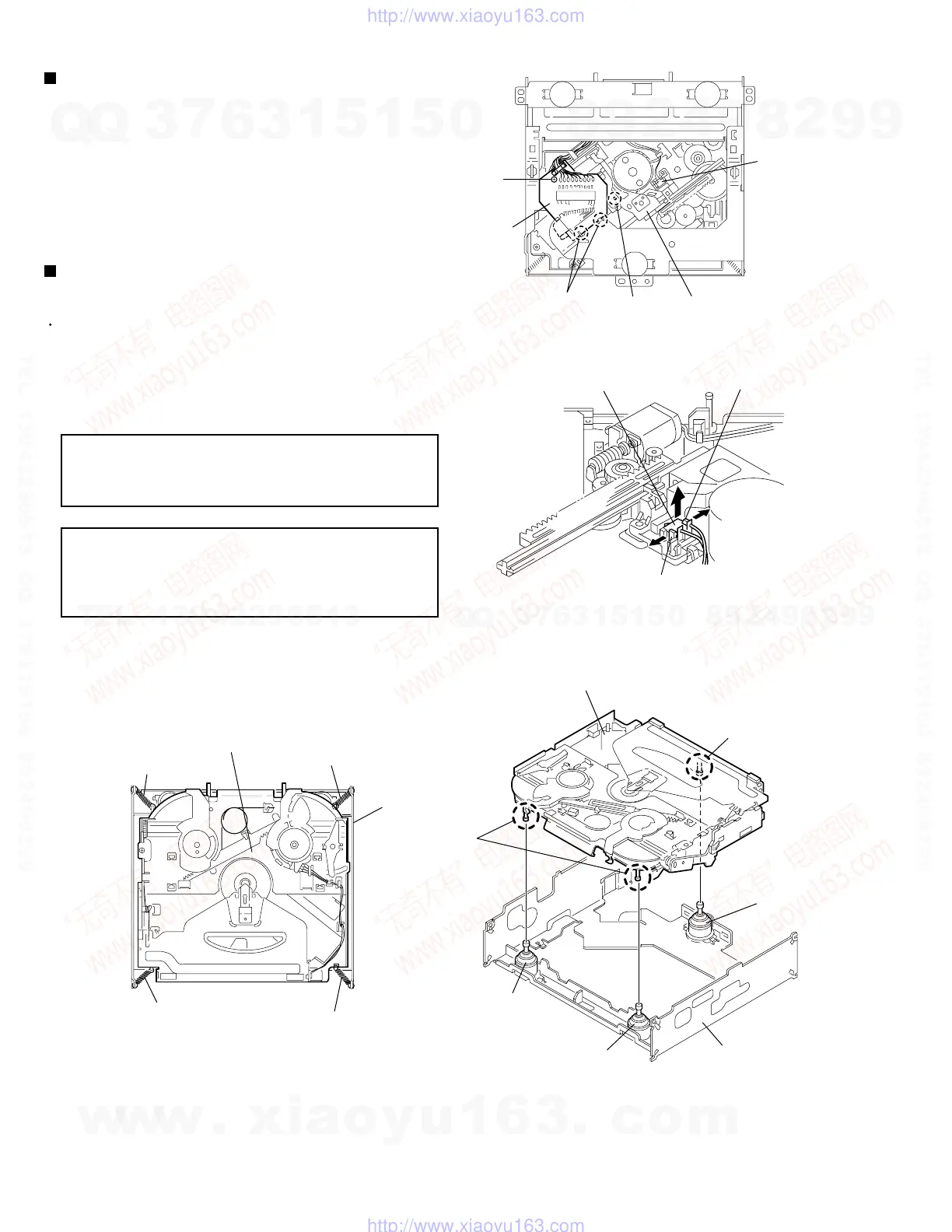

Fig.3
Fig.6
Fig.8Fig.7
B
Connector board
DET switch
DET switch
Pickup
Short-circuit
Joints b
Tab c
Feed sw. holder
Tab c
Suspension spring (L)
Suspension spring (L)
Suspension spring (R)
Suspension spring (R)
Chassis unit
Chassis unit
Frame
Frame
Shafts
Shaft
Damper
Damper
Damper
