KD-V6A/B/C/E/J/U

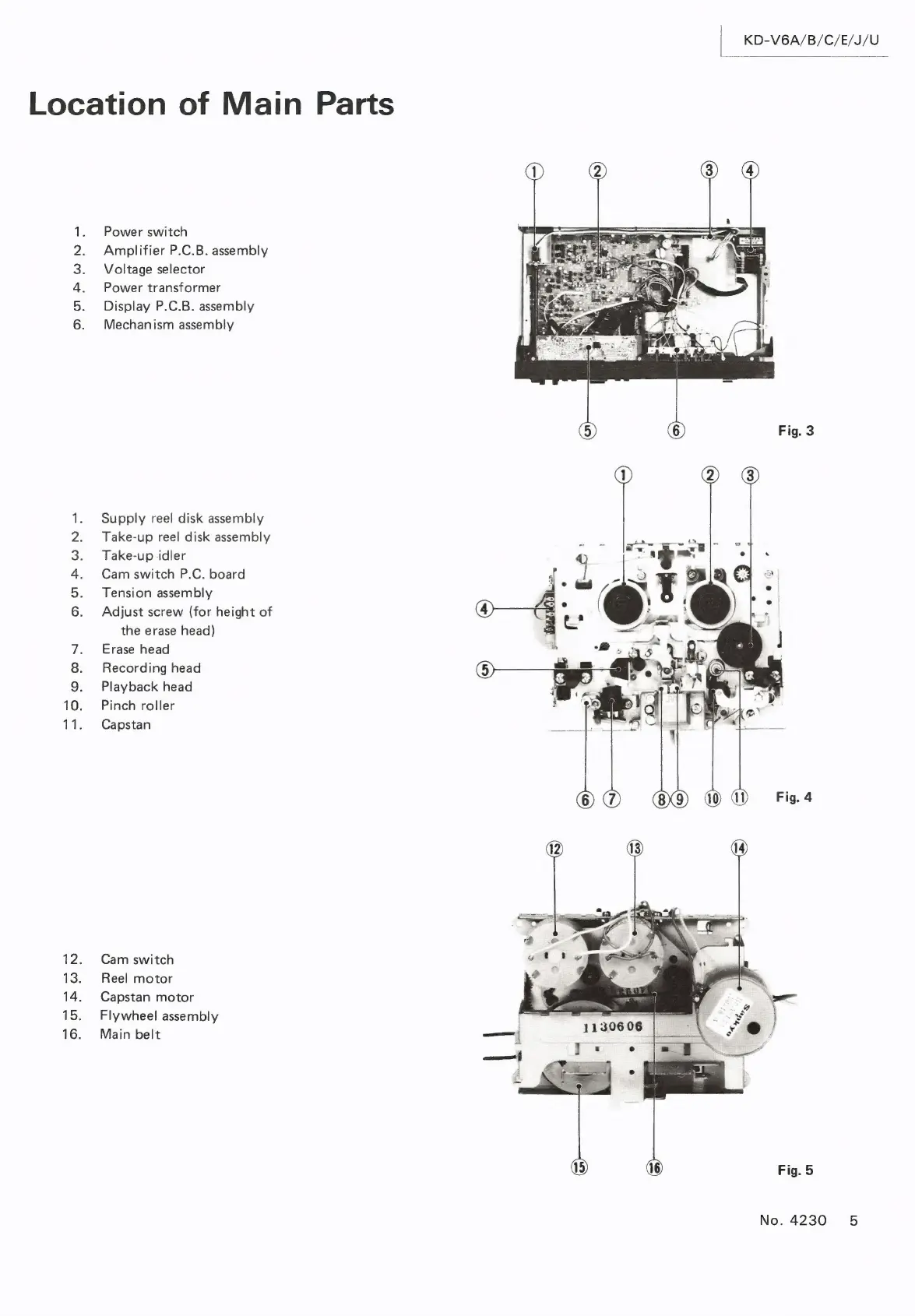

Location of Main Parts
Power switch
Amplifier P.C.B. assembly
Voltage selector
Power transformer
Display P.C.B. assembly
Mechanism assembly
O01 PB WNT
Fig. 3
Supply reel disk assembly
Take-up reel disk assembly
Take-up idler
Cam switch P.C. board
Tension assembly
Adjust screw (for height of
the erase head)
Erase head
Recording head
Playback head
Pinch roller
Capstan
O21 Oe
—_— = OO OS
12. Cam switch
13. Reel motor
14. Capstan motor
15. Flywheel assembly
16. Main belt
