JVC KS-F363R

KS-F363R/KS-F360R
1-14
Head section view
Head azimuth screw
Cassette mechanism
(Surface)
Tape speed adjust
Motor assembly
Fixed screw
Height adjusting screw
c
Height adjusting screw
b
Height adjusting screw
a
Playback head
Playback head
Azimuth screw

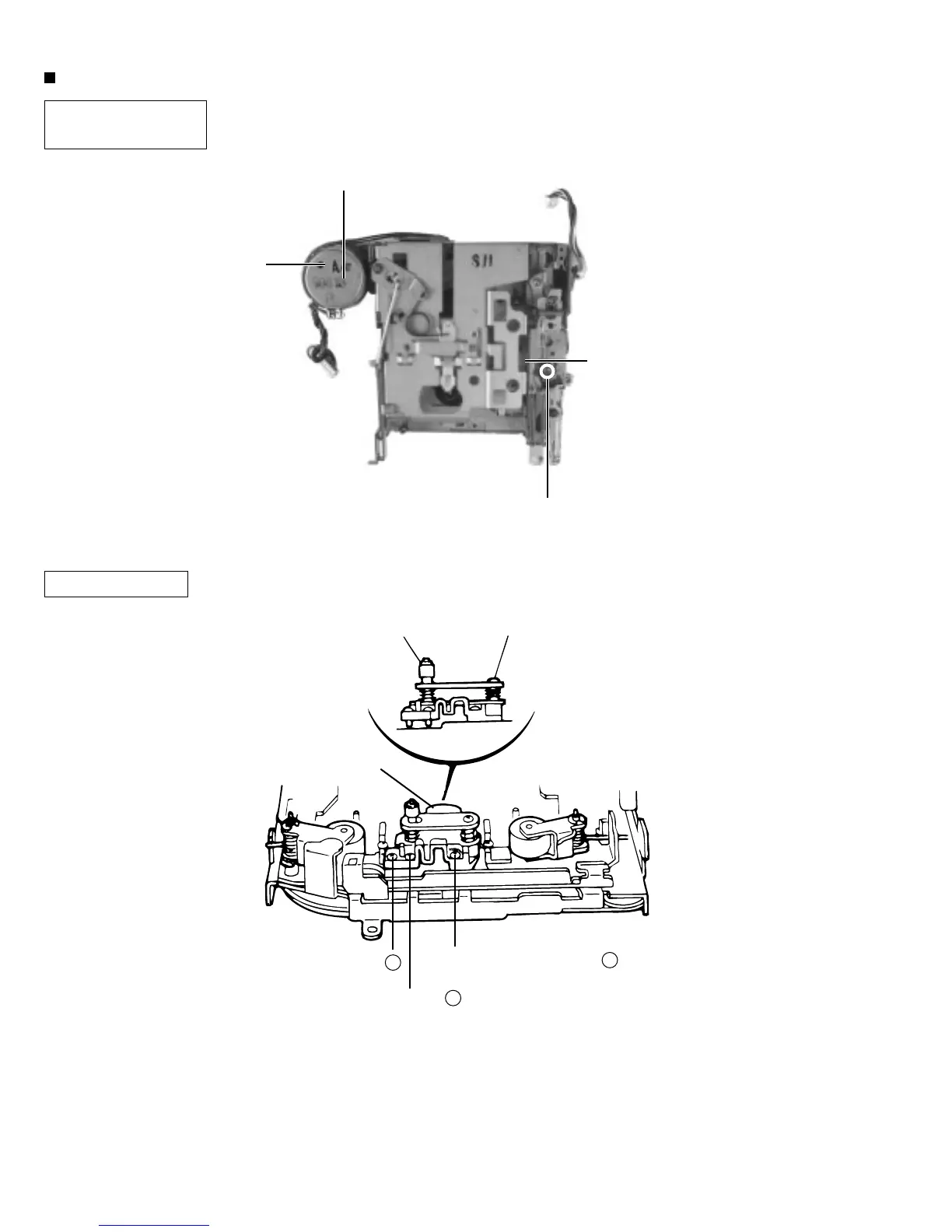

Arrangement of adjusting & test points
