KS-F363R/KS-F360R
1-4
Remove the three screws A on the left side of the
body.
1.

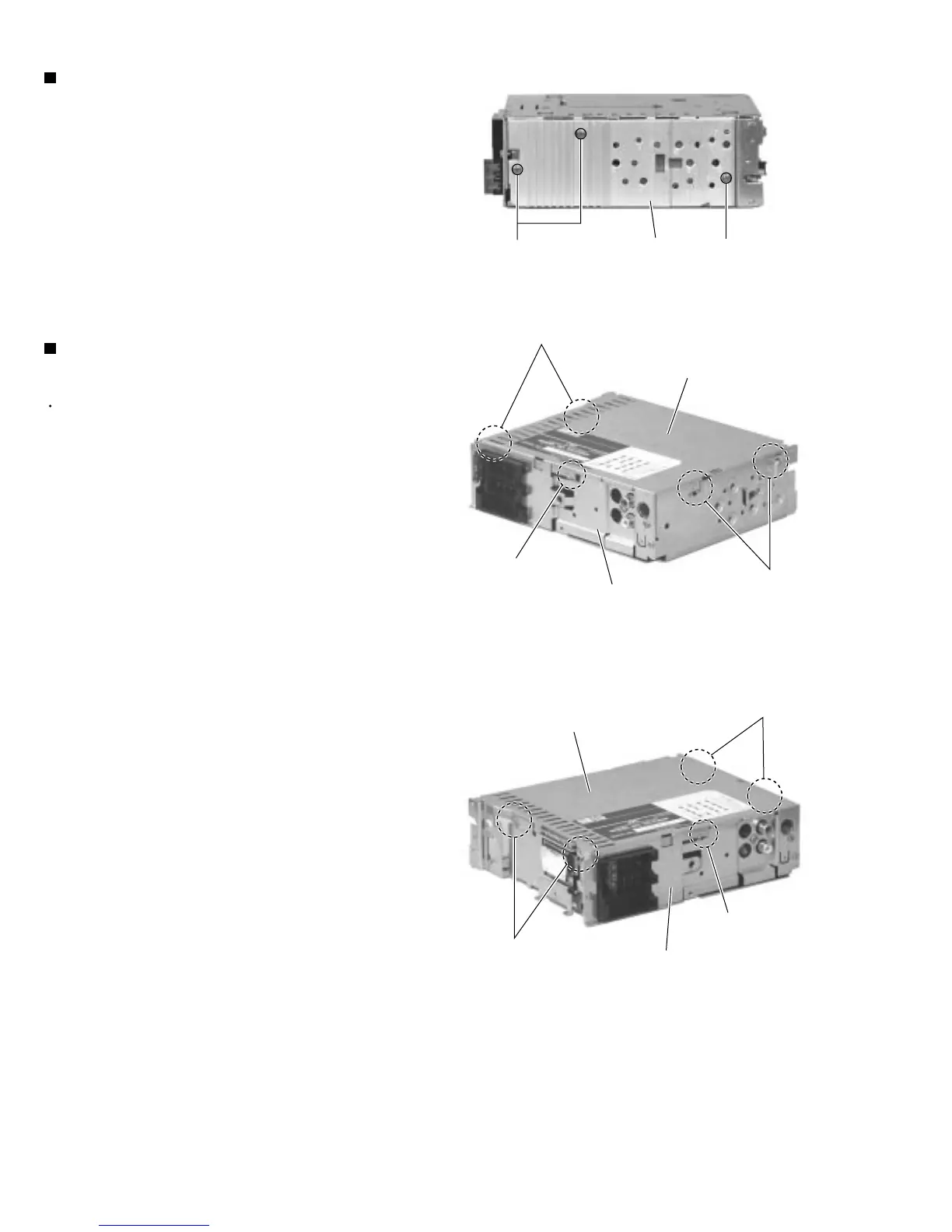

Removing the heat sink (See Fig.4)
Prior to performing the following procedure, remove
the front panel assembly, the front chassis assembly
and the heat sink.
Turn over the body and unjoint the five joints b with
the bottom cover and the body using a screwdriver.
1.
Removing the bottom cover
(See Fig.5 and 6)
Fig.4
Fig.5
Fig.6
Heat sink
A
A
Joints b
Joints b
Joint b
Joints b
Joints b
Joint b
Bottom cover
Bottom cover
Rear panel
Rear panel
To Next Page
