KS-FX742R
1-14 (No.49816)
2.2.19 Removing the gear base assembly / take up gear / reflector gear
(See Fig.32 to 34)
(1) Push in the pin d' of the gear base assembly on the upper
side of the body and move the reflector gear toward the
bottom, then pull out.
(2) Remove the polywasher on the bottom and pull out the
take up gear.
(3) Move the gear base assembly in the direction of the arrow
to release it from the two slots e' of the main chassis.
REFERENCE:
The parts are damaged when removed. Please replace with
new ones.

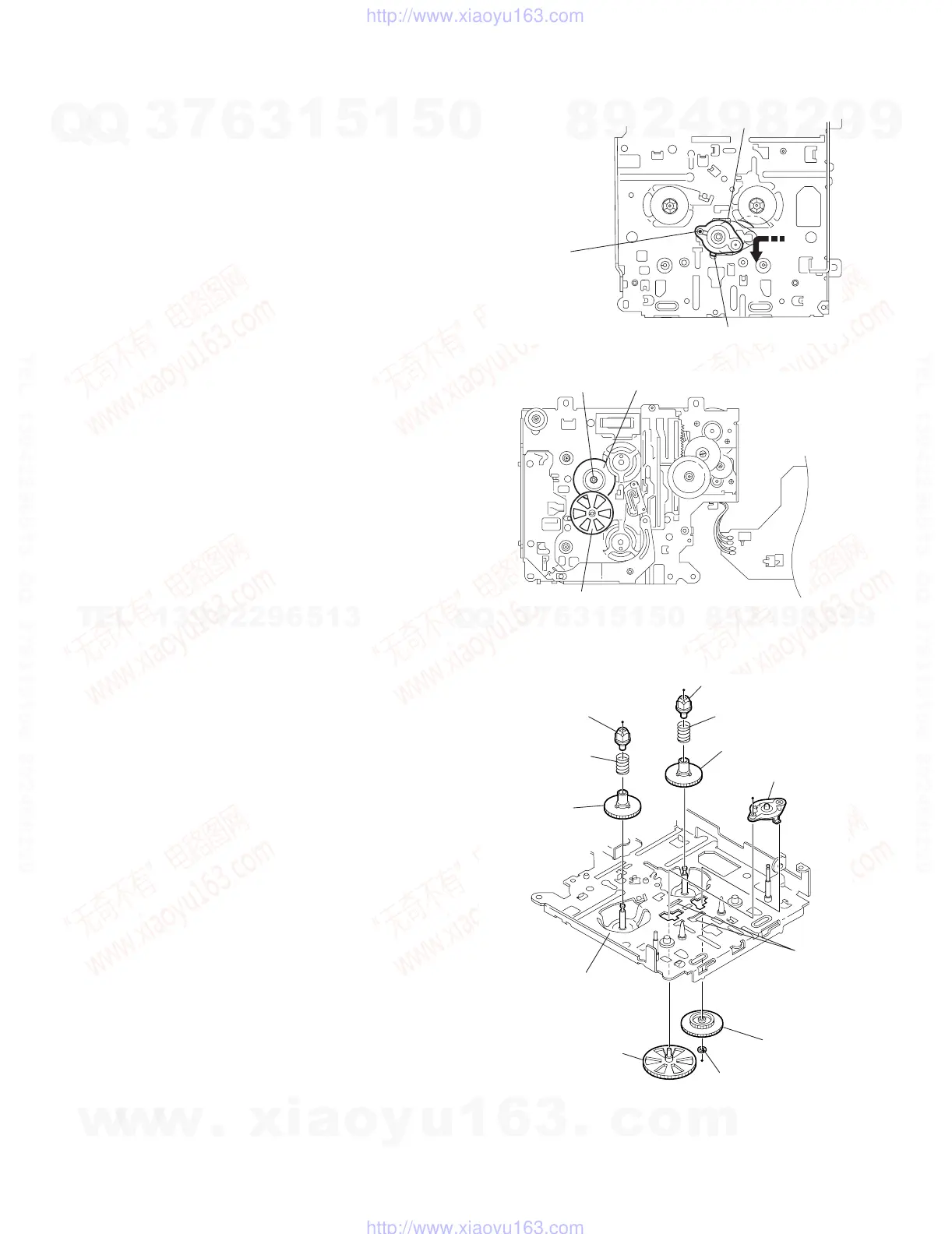

Fig.32
Fig.33
2.2.20 Removing the reel driver / reel spindle
(See Fig.34)
(1) Draw out the reel driver from the shaft on the main chassis
and remove the reel driver spring and the reel spindle re-
spectively.
CAUTION:
The reel driver is damaged when removed. Please replace
with a new one.
Fig.34
Gear base assembly
Pin d'
Slot e'
Slot e'
Polywasher
Reflector gear
Take up gear
Reel driver spring
Reel driver spring
Reel driver
Reel driver
Reel spindle
Reel spindle
Gear base assembly
Slots e
Main chassis
Reflector gear
Polywasher
Take up gear
