KS-FX742R
(No.49816)1-9

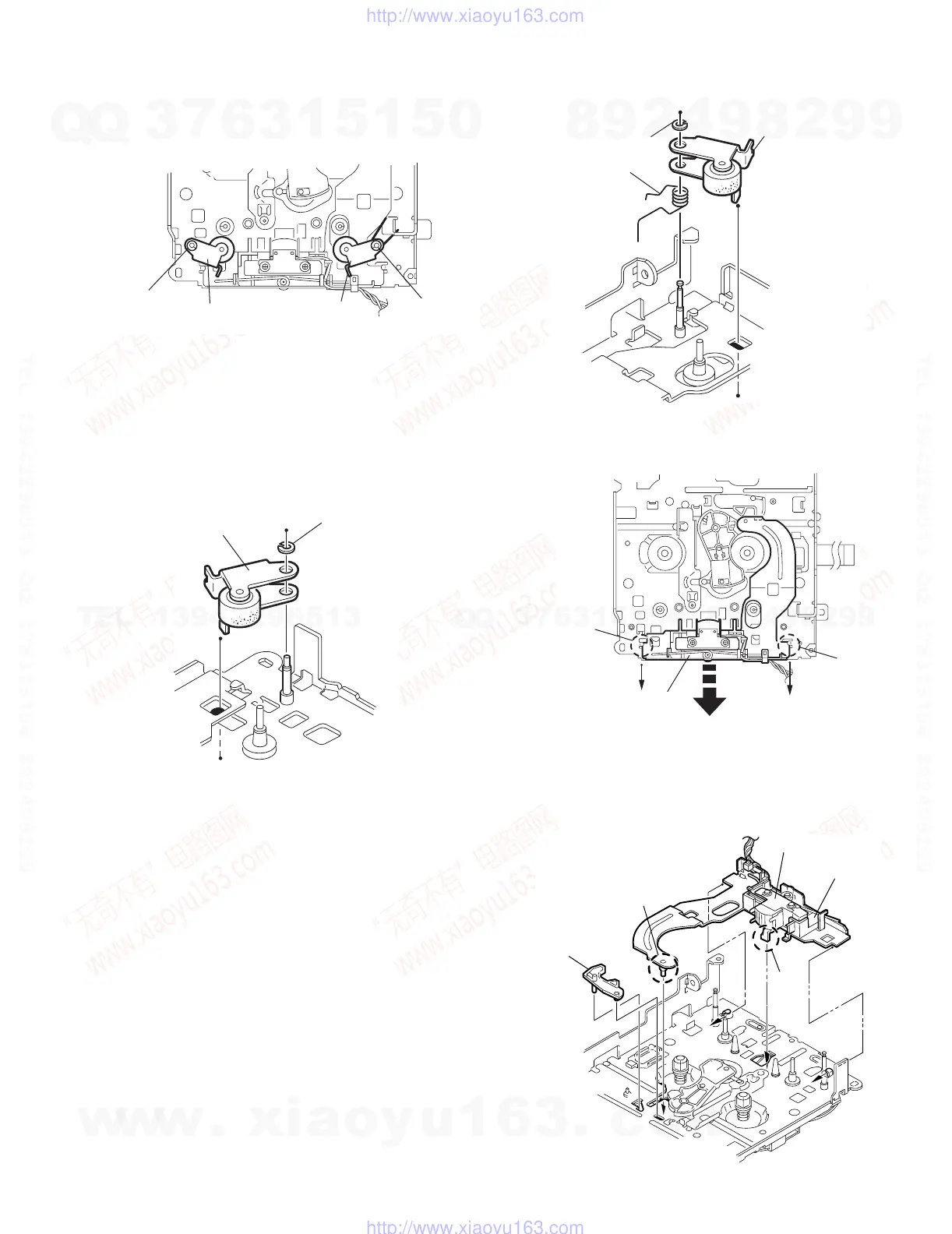

2.2.5 Removing the pinch arm (F) assembly
(See Fig.11 and 12)
(1) Remove the polywasher and pull out the pinch arm (F) as-
sembly.
(2) Remove the compulsion spring.
Fig.11
Fig.12
2.2.6 Removing the pinch arm (R) assembly
(See Fig.11 and 13)
(1) Remove the polywasher and pull out the pinch arm (R) as-
sembly.
Fig.13
Fig.14
2.2.7 Removing the slide chassis assembly
(See Fig.14 and 15)
REFERENCE:
It is not necessary to remove the head and the tape guide.
(1) Move the slide chassis assembly in the direction of the ar-
row to release the two joints l and remove from the main
chassis.
(2) Remove the rack link.
CAUTION:
When reassembling, first reattach the rack link, and next fit the
boss m and hook n of the slide chassis assembly to the hole
of the main chassis, and engage the two joints l.
Fig.15
Polywashe
Polywasher
Pinch arm
(F) assembly
Pinch arm
(R) assembly
Polywasher
Pinch arm (F) assembly
Compulsion spring
Pinch arm
(R) assembly
Polywashe
Slide chassis
assembly
Joint l
Joint l
Boss m
Hook
n
Rack link
Head
Tape guide
