Connecting external components
INSTALLATION/CONNECTION
KW-R935BTS : USB cable (DC 5 V 1.5 A) (approx. 1.2 m/4 feet)
MIC (Microphone input terminal)
( 15)
Expansion port (12 V 500mA)
To the optional SiriusXM Vehicle Tuner (commercially available)
( 12)

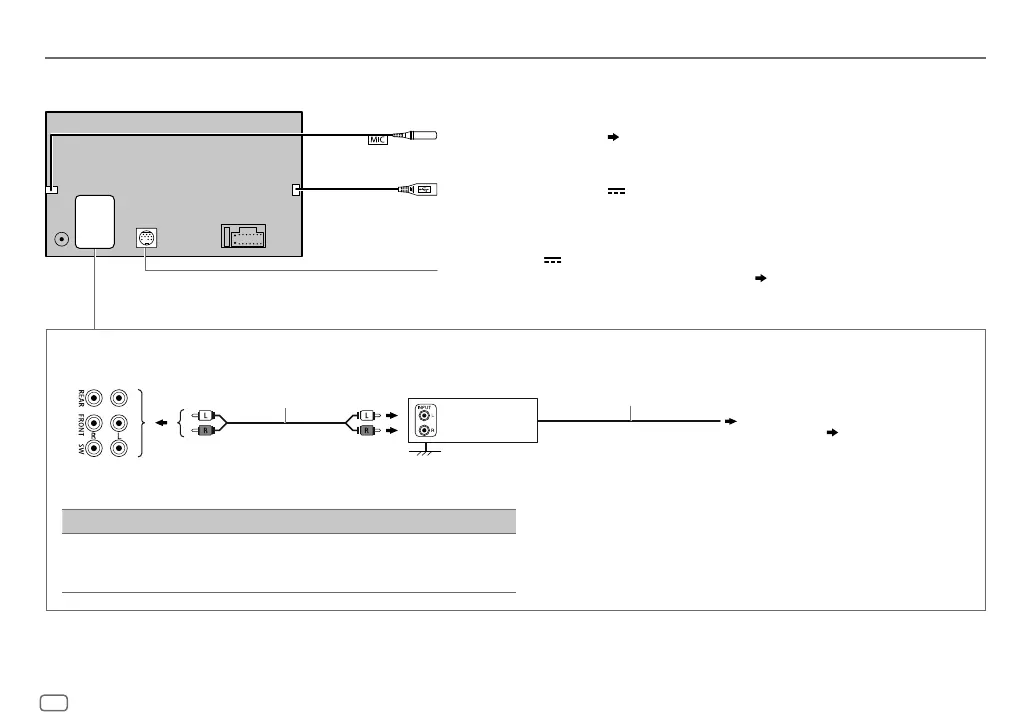

Connecting external amplifiers via output terminals
*
2
Firmly connect the ground wire of the amplifier to the car’s chassis to avoid
damaging the unit.
Output terminals 2-way crossover setting 3-way crossover setting
REAR :
FRONT :
SW :
Rear output
Front output
Subwoofer output
Tweeter output
Mid Range output
Woofer output
Output terminals
JVC Amplifier
*
2
To remote lead (blue/white) of the
wiring harness.
( 39)
Signal cord (not supplied) Remote wire (not supplied)
