JVC KW-R930BTS

ENGLISH
39
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Car fuse block
Ignition switch
Light blue/yellow
Blue/white:
To amplifier
Blue:
To power antenna
Make this connection if your vehicle factory
wiring harness does not have “12V ignition
switch” wire.
Separate red wire

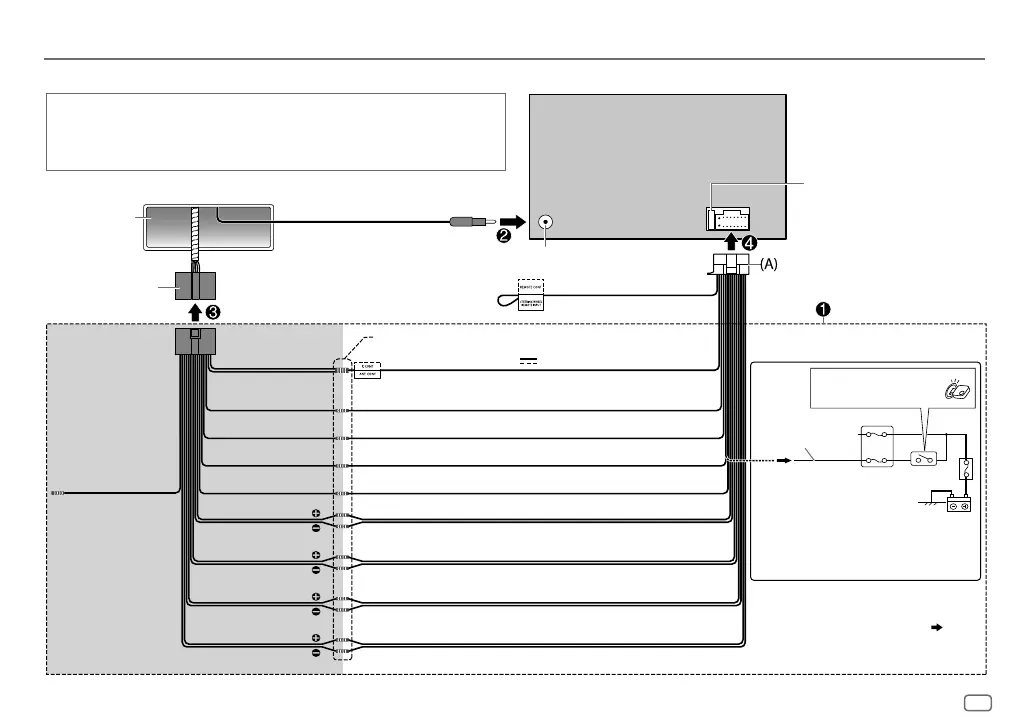

Wiring connection
To the steering wheel
remote control adapter
Fuse (10A)
Antenna terminal
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12V
White: Front speaker/3-way crossover: Mid range speaker (left)
White/black
Gray: Front speaker/3-way crossover: Mid range speaker (right)
Gray/black
Purple: Rear speaker/3-way crossover: Tweeter (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12 V
350mA)
Brown (not used)
Green: Rear speaker *
1
/3-way crossover: Tweeter (left)
Green/black *
1
*
1
You can also connect a subwoofer speaker
directly using this lead without an external
subwoofer amplifier. For setting,
26 .
Custom wiring harness
(separately purchased)
Vehicle
dashboard
Recommended connection
INSTALLATION/CONNECTION
IMPORTANT
We recommend installing the unit with a commercially available custom wiring harness
specific for your car and leave this job to professionals for your safety. Consult your car audio
dealer.
