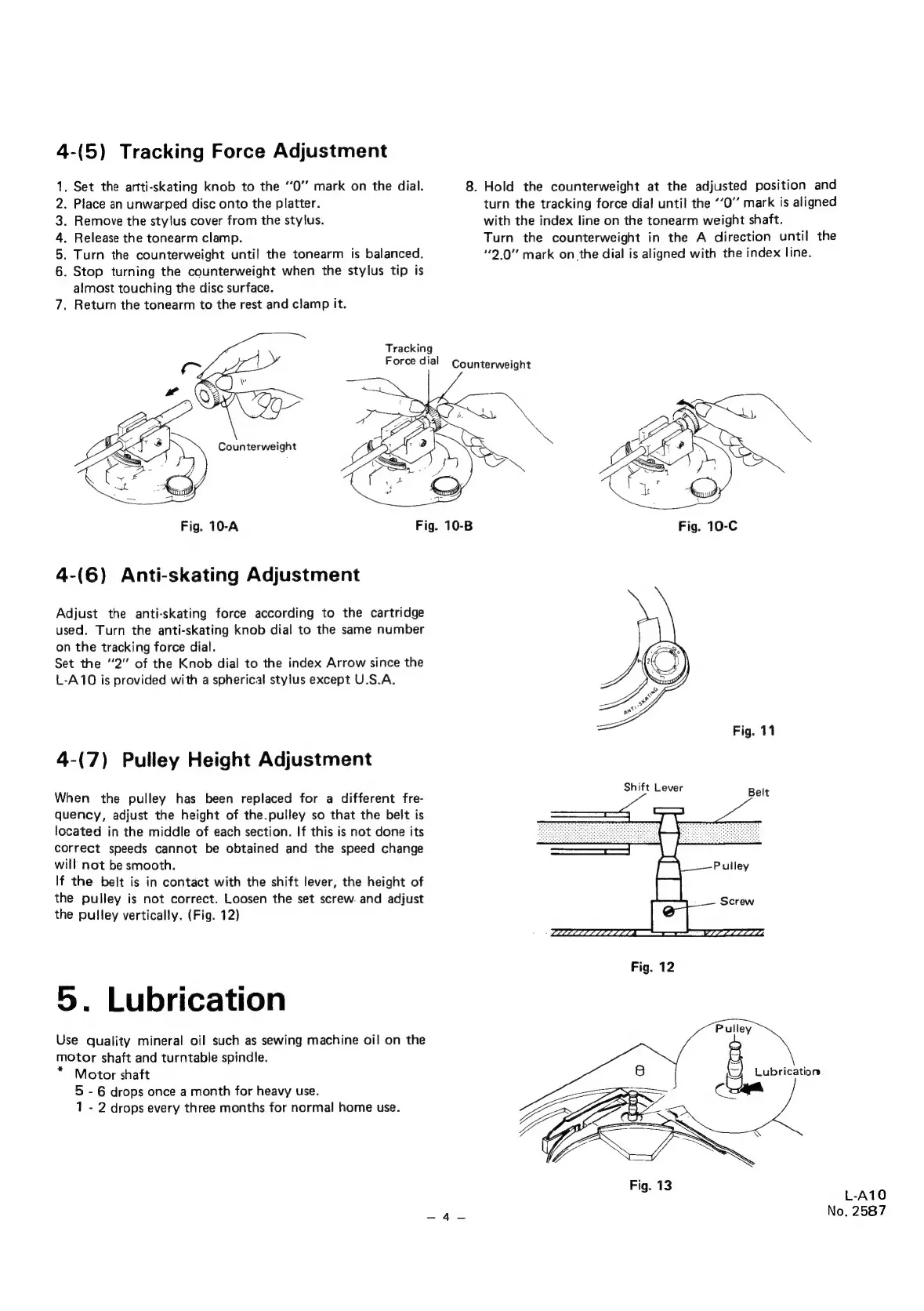

4-(5) Tracking Force Adjustment
. Set the artti-skating knob to the ‘0’’ mark on the dial.
. Place an unwarped disc onto the platter.
. Remove the stylus cover from the stylus.
. Release the tonearm clamp.
. Turn the counterweight until the tonearm is balanced.
. Stop turning the counterweight when the stylus tip is
almost touching the disc surface.
7. Return the tonearm to the rest and clamp it.
Onbwh =
Trackin
Force d
4-(6) Anti-skating Adjustment
Adjust the anti-skating force according to the cartridge
used. Turn the anti-skating knob dial to the same number
on the tracking force dial.
Set the “2” of the Knob dial to the index Arrow since the
L-A10 is provided with a spherical stylus except U.S.A.
4-(7) Pulley Height Adjustment
When the pulley has been replaced for a different fre-
quency, adjust the height of the.pulley so that the belt is
located in the middle of each section. If this is not done its
correct speeds cannot be obtained and the speed change
will not be smooth.
If the belt is in contact with the shift lever, the height of
the pulley is not correct. Loosen the set screw. and adjust
the pulley vertically. (Fig. 12)
5. Lubrication
Use quality mineral oil such as sewing machine oil on the
motor shaft and turntable spindle.
Motor shaft
5 - 6 drops once a month for heavy use.
1 - 2 drops every three months for normal home use.
8. Hold the counterweight at the adjusted position and
turn the tracking force dial until the ‘0 mark is aligned
with the index line on the tonearm weight shaft.
Turn the counterweight in the A direction until the
“9.0” mark on the dial is aligned with the index line.
g
ial Counterweight
Fig. 11
Shift Lever Belt
Fig. 12
Lubrication
Fig. 13
_~4e
No.
2587
L-A10
