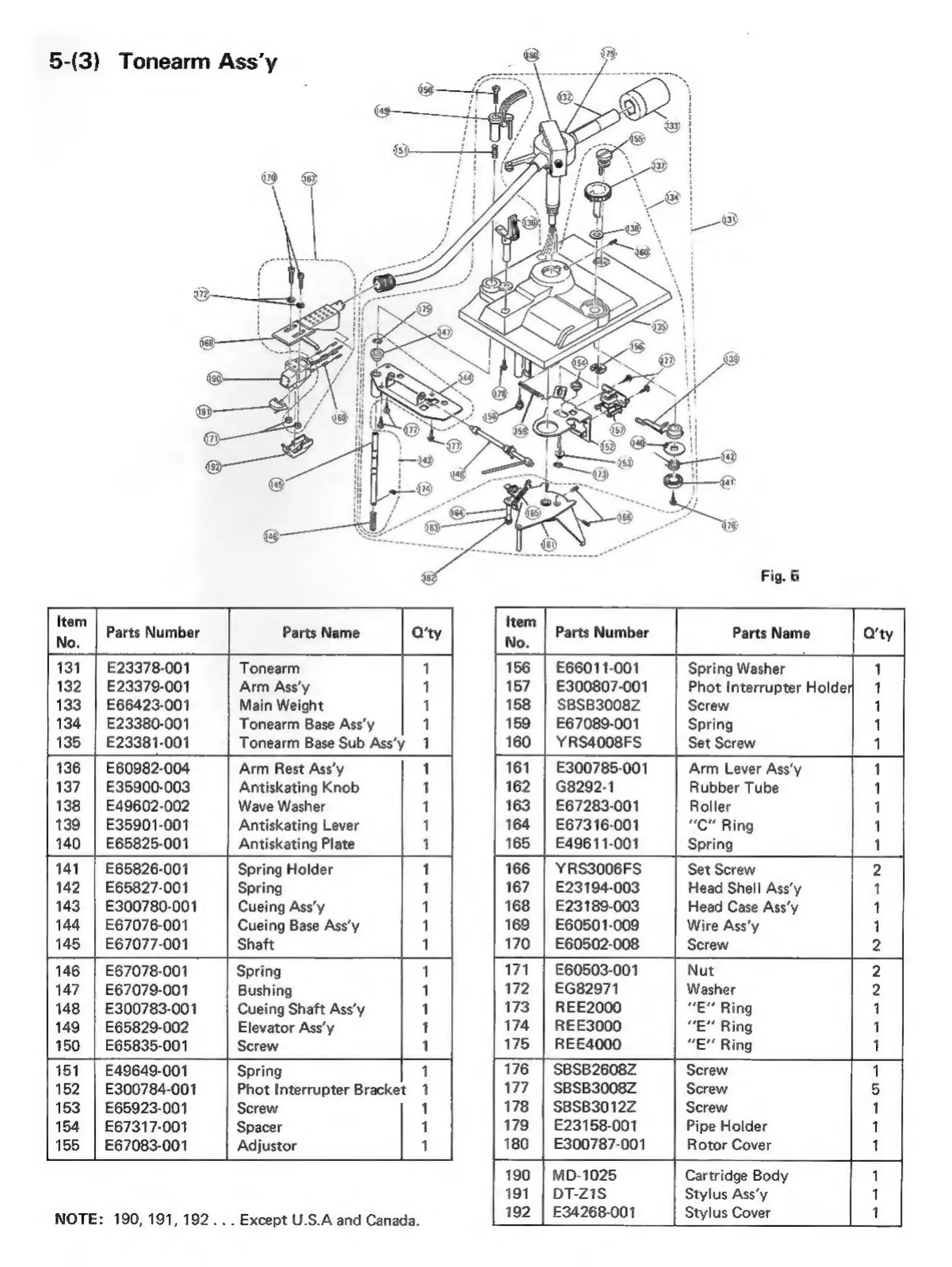

5-(3)
Tonearm Ass’y
NOTE: 190, 191,192...
Except U.S.A and Canada.
Fig. 6
—
Parts
Number
Parts
Name
]
Q'ty
Hs
Parts
Number
Parts
Name
O'ty
131
|
€23378-001
Tonearm
1
156
|
£66011-001
Spring
Washer
1
132
|
E23379-001
Arm
Ass'y
1
157
|
E300807-001
Phot
Interrupter
Holder
1
133 | £66423-001 Main Weight 1 158 | SBSB3008Z Screw 1
134 | E23380-001 Tonearm Base Ass’y 1 159 | E67089-001 Spring 1
135
|
E23381-001
Tonearm
Base
Sub
Ass’y
1
160
|
YRS4008FS
Set
Screw
1
136
|
E60982-004
Arm
Rest
Ass’y
1
161
|
E300785-001
Arm
Lever
Ass‘y
1
137
|
E35900-003
Antiskating
Knob
1
162
|
G8292-1
Rubber
Tube
1
138
|
E49602-002
Wave
Washer
1
163
|
£67283-001
Roller
1
139 | E35901-001 Antiskating Lever 1 164 | £67316-001 “C" Ring 1
140 | E65825-001 Antiskating Plate 1 165 | £49611-001 Spring 1
141
|
E65826-001
Spring
Holder
1
166
|
YRS3006FS
Set
Screw
2
142 | E65827-001 Spring 1 167 | E23194-003 Head Shell Ass’y 1
143
|
E300780-001
Cueing
Ass’y
1
168
|
E23189-003
Head
Case
Ass‘y
1
144
|
E67076-001
Cueing
Base
Ass’y
1
169
|
E60501-009
Wire
Ass‘y
1
145
|
£67077-001
Shaft
1
170
|
E60502-008
Screw
2
146 | E67078-001 Spring 1 171 | £60503-001 Nut 2
147 | E67079-001 Bushing 1 172 | £G82971 Washer 2
148 | E300783-001 Cueing Shaft Ass‘y 1 173 | REE2000 “EB” Ring 1
149
|
E65829-002
Elevator
Ass’y
1
174
|
REE3000
“E”
Ring
1
150
|
E65835-001
Screw
1
175
|
REE4000
“E”
Ring
1
151 | E49649-001 Spring 1 176 | SBSB2608Z Screw 1
162 | E300784-001 Phot Interrupter Bracket 1 177 | SBSB3008Z Screw 5
153 | E65923-001 Screw 1 178 | SBSB3012Z Screw 1
154 | £67317-001 Spacer 1 179 | E23158-001 Pipe Holder 1
155
|
E67083-001
Adjustor
1
180
|
E300787-001
Rotor
Cover
1
190 | MD-1025 Cartridge Body |
191 | DT-Z1S Stylus Ass’y 1
192 | E34268-001 Stylus Cover 1
