Quick Setup Connections
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV.
2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on
the back of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on
the back of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
LEFT AUDIO IN on the back of the TV.

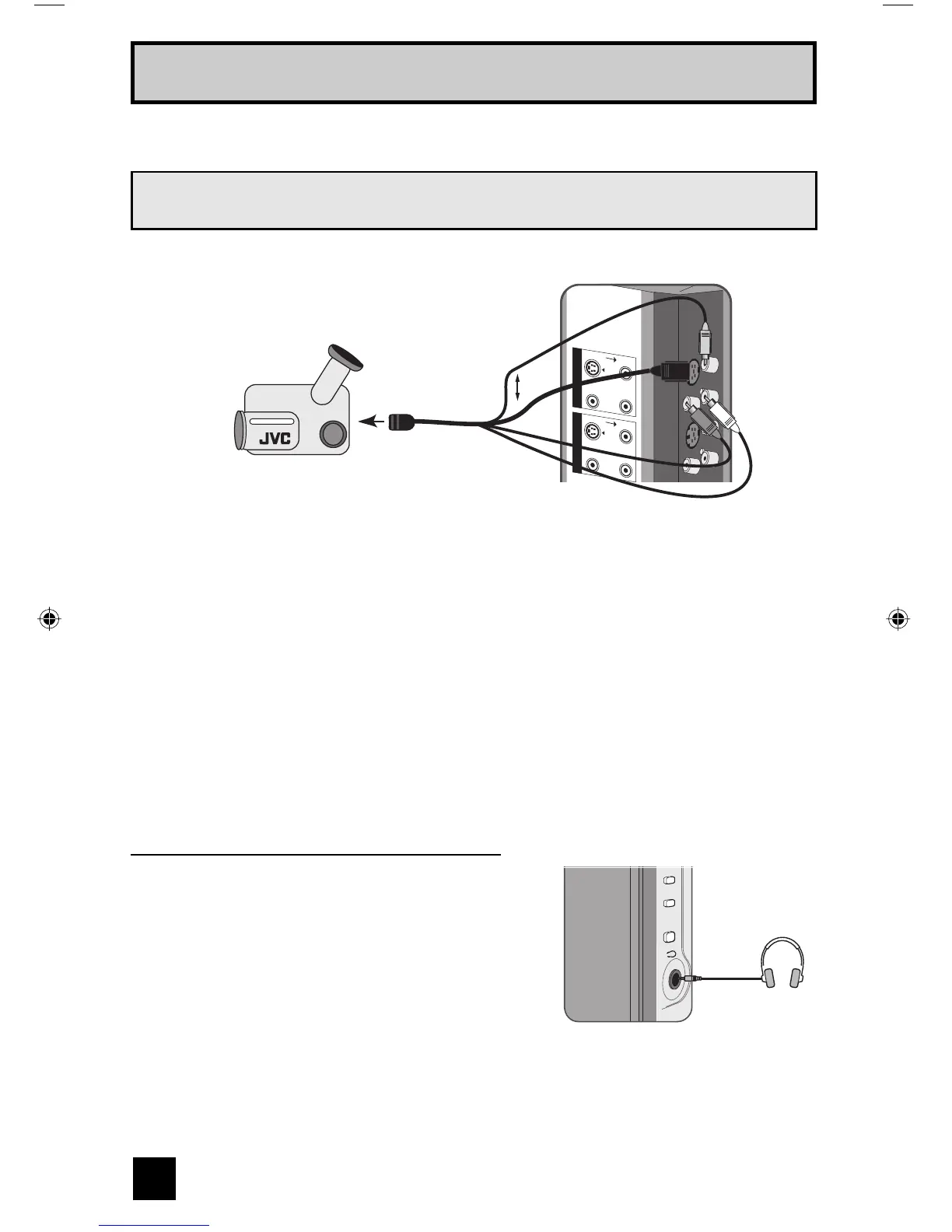

You can connect a camcorder to you televison by using the input jacks located on the back of
the television.
INPUT 3 INPUT 2 INPUT 1
S-VIDEO
VIDEO
R - AUDIO - L
S-VIDEO
VIDEO
R -
AUDIO -
L
VIDEO
CAMCORDER
OR
TV Rear Panel
Connecting to a Camcorder
Headphone Connection
You can connect a pair of headphones to the television
using the headphone jack located on the side of the
television.
1) Plug a headphone jack into the headphone jack on
the television’s side panel.
POWER+ VOLUME -
TV Side Panel
